Challenger M750 EPS Black (37EYCDPP710) - Cub Cadet 4x4 Utility Vehicle (2022) Roof Parts Diagram

4x4 Utility Vehicle

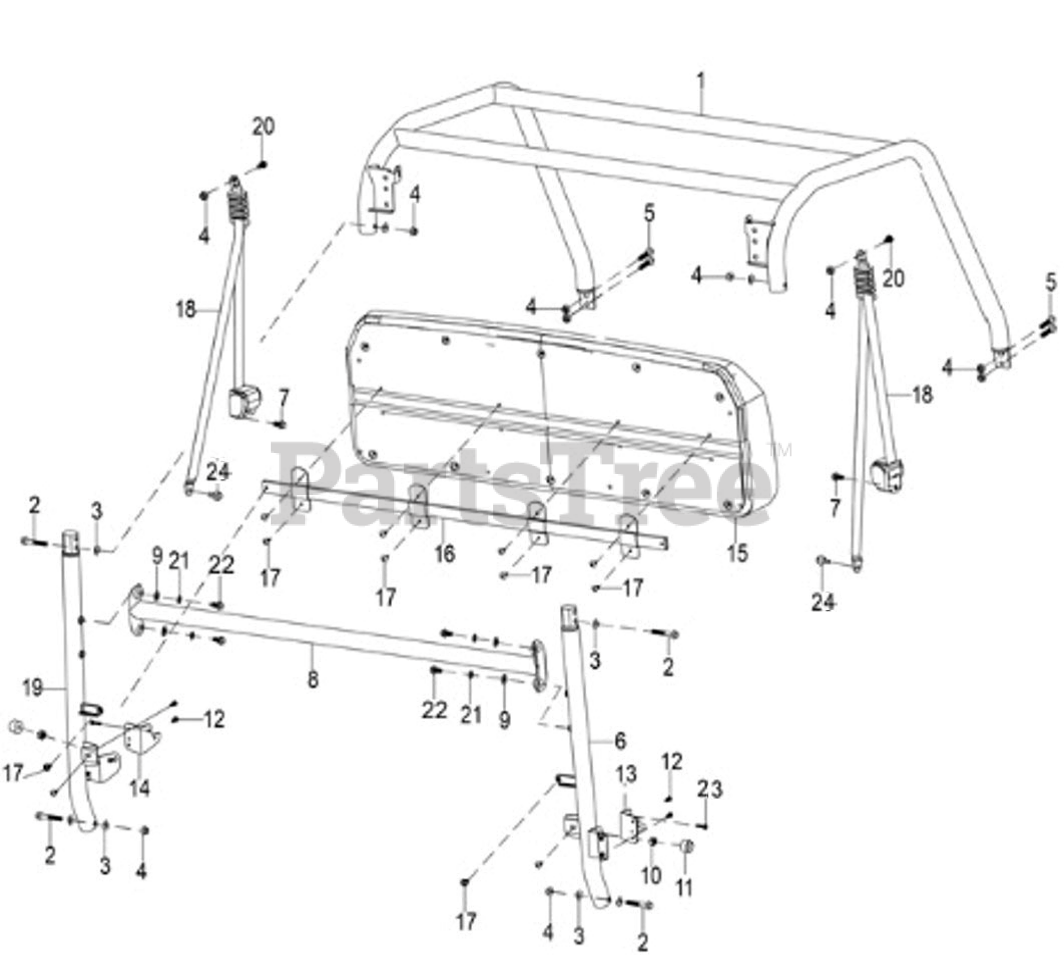

Roof Parts Diagram

  • Title

1

Cub Cadet 503-03822

FRONT ROPS

$211.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-00292

HEX NUT M10X1.25X65

$8.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 503-00566

CURVED WASHER

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-01375

LOCK NUT M10X1.25

$7.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 503-00319

HEX FLANGE BOLT M10X1.25X50

$10.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-03823

ROPS TUBE (REAR) (RH)

$41.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-02038

HEX FLANGE BOLT (M10x20)

$5.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-03824

ROPS TUBE (REAR) (CROSS)

$118.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-01395

WASHER 10

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-01979

HEX FLANG NUT M6

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 503-03886

DOOR SPACER

$2.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-00129

SOCKET HEX FLAT HEAD BOLT M6X16

$6.49

$

In Stock, Qty 5

0

13

Cub Cadet 503-03828

DOOR STRIKER (RH)

$6.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-03829

DOOR STRIKER (LH)

$6.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 503-03830

BENCH SEAT (BACKREST)

$668.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 503-01767

BRACKET - BACKREST KIT

$125.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 503-00091

SCREW M6X16

$6.99

$

In Stock, Qty 5

0

18

Cub Cadet 503-01762A

SEAT BELT BUCKLE ASSEMBLY

$377.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 503-03831

ROPS TUBE (REAR) (LH)

$44.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 503-01772

SHOULDER FLANGE BOLT M10X14X9X25

$4.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 503-00064

SPRING WASHER

$6.49

$

In Stock, only 3 left!

0

22

Cub Cadet 503-00409

HEX FLANGE BOLT M10X1.25X20

$6.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 503-01594

HEX HEAD FLANGE BOLT M6X12

$4.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 503-02318

SHOULDER SCREW M10-1.25

$2.99

$

Usually ships in 3-6 days

0
