Challenger MX750 EPS Yellow (37BYCCKK710) - Cub Cadet 4x4 Utility Vehicle (2019) Suspension - Front Parts Diagram

4x4 Utility Vehicle

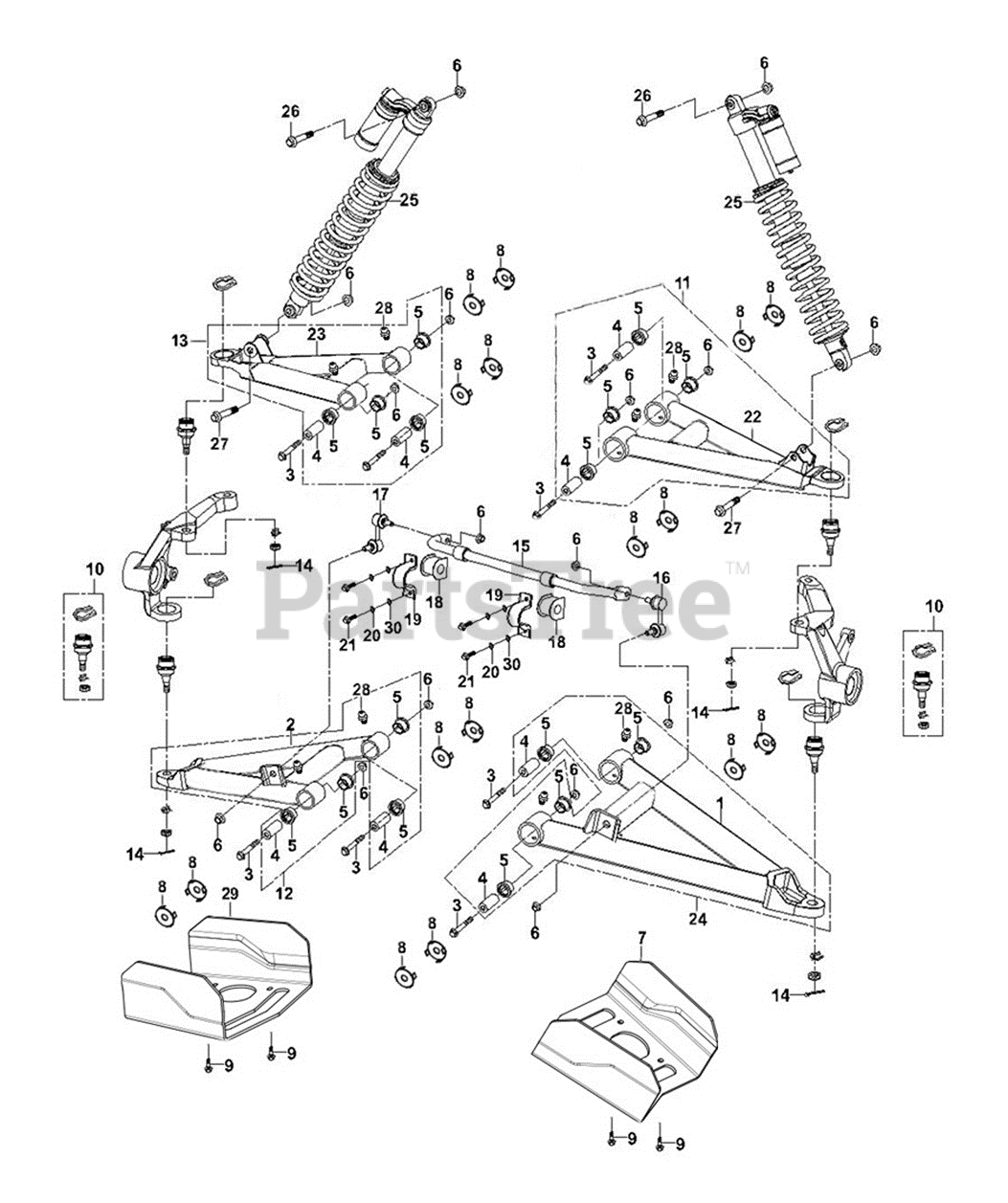

Suspension - Front Parts Diagram

  • Title

1

Arm Welding Kit(Front Left Lower)

Note: Not Serviced Individually

$

$

Not available

2

Arm Welding Kit(Front Right Lower)

Note: Not Serviced Individually

$

$

Not available

3

Cub Cadet 503-01554

HEX HEAD FLANGE BOLT M10X1.25-80

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 503-02006

BUSHING 10.3X23X49.4

$12.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 503-02821

SHOULDER SPACER

$3.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 503-01375

LOCK NUT M10X1.25

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-02285

SHIELD CV BASIC

$225.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-01555

SHIELD CV - BASIC I

$276.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-01556

BUSHING CAP I

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-00091

SCREW M6X16

$5.99

$

In Stock, Qty 12

0

10

Cub Cadet 503-00307AP

BALL JOINT ASSEMBLY
(Superseded to 503P0307B)

$56.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 503-02774

UPPER A-ARM ASSEMBLY (FRONT LH)

$191.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-02851

LOWER ARM ASSEMBLY (FRONT RH)

$222.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 503-02775

UPPER A-ARM ASSEMBLY (FRONT RH)

$191.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-00096

COTTER PIN 2.5X30

$7.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 503-02776

FRONT SWAY BAR

$163.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 503-01561

ROD BALL KIT - RIGHT
(Superseded to 503P01561)

$62.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 503-01562

ROD BALL KIT - LEFT
(Superseded to 503P01562)

$64.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 503-02233

STABILIZER BUSHING 20mm

$4.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 503-02122

SWAY BAR MOUNT BRACKET

$1.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 503-00064

SPRING WASHER

$5.99

$

In Stock, only 3 left!

0

21

Cub Cadet 503-00409

HEX FLANGE BOLT M10X1.25X20

$5.99

$

Usually ships in 3-6 days

0

22

Arm Welding Kit(Front Left Upper )

Note: Not Serviced Individually

$

$

Not available

23

Arm Welding Kit(Front Right Upper)

Note: Not Serviced Individually

$

$

Not available

24

Cub Cadet 503-02852

LOWER ARM ASSEMBLY (FRONT LH)

$238.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 503-01564

FRONT SHOCK ABSORBER

$670.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 503-00682

HEX FLANGE BOLT M10X1.25X55

$9.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 503-00056

HEX FLANGE BOLT M10X1.25X60

$8.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 503-00305

SWING ARM NOZZLE

$12.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 503-02287

SHIELD CV III

$239.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 503-02007

CV SHIELD - BASIC II

$317.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 503-01395

WASHER 10

$4.49

$

Usually ships in 3-6 days

0
