CHF 9540 H - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed, Fine Chip (SN: B00001 - C09929) Feed Roller Parts Diagram

8" Chipper, 540cc PTO Hydraulic Feed, Fine Chip

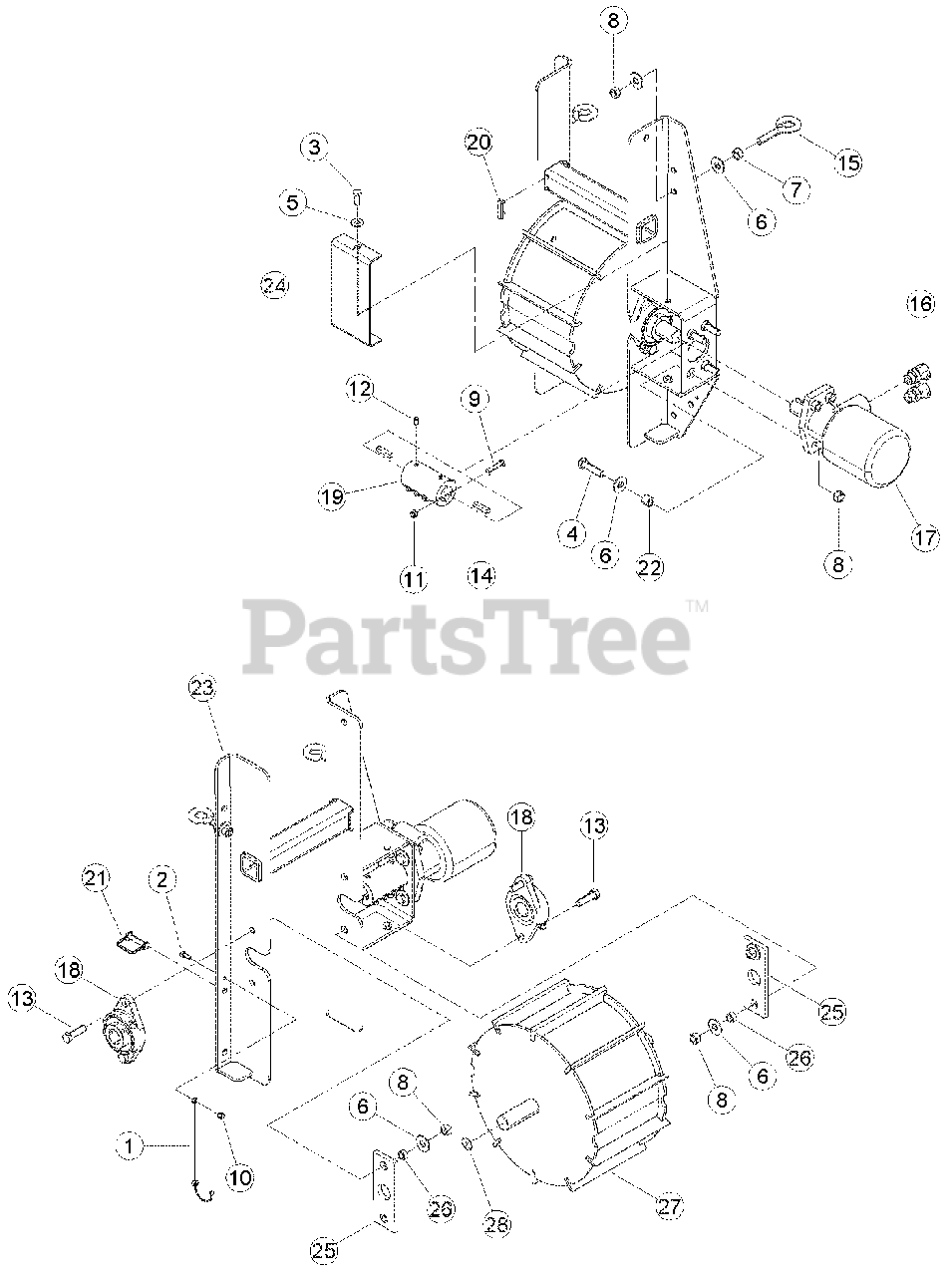

Feed Roller Parts Diagram

  • Title

1

12530

LANYARD, NYLON

$

$

Not available

2

15001

BOLT, 1/4 X 3/4 HEX HD GR5 ZP

$

$

Not available

3

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

4

Bear Cat 15015

BOLT, 1/2 X 2 HEX HD GR5 ZP

$

$

Not available

5

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

6

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

7

Bear Cat 15043

NUT, 1/2 HEX NC ZP

$

$

Not available

8

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

9

15282

BOLT, 5/16 X 1-1/2 HEX HD GR5 ZP

$

$

Not available

10

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

11

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

12

Bear Cat 15461

SET SCREW, 3/8 X 1/2 CUP PT SKT

$

$

Not available

13

15478

BOLT, 1/2 X 1-3/4 HEX HD GR5 NC ZP

$

$

Not available

14

Bear Cat 15498

KEY, 5/16 SQUARE X 1-1/2 LONG

$

$

Not available

15

Bear Cat 15502

EYEBOLT, 1/2 X 2 ZP

$31.99

$

Usually ships in 3-7 days

0

16

16067

ADAPTER, -10 MORING / -8 MJIC 45 DEG.

$

$

Not available

17

Bear Cat 16586

MOTOR, 45 CU IN HYDRAULIC

$1444.99

$

Usually ships in 3-7 days

0

18

Bear Cat 16682

BEARING, 1-1/4" DIA 2 BOLT FLANGE

$

$

Not available

19

Bear Cat 16683

COUPLER, 1-1/4 SHAFT

$

$

Not available

20

17434

WEAR PAD, STD. SPRING HD FRONT

$

$

Not available

21

Bear Cat 17879

PIN, SNAP 3/8 X 1-1/2 USABLE LENGTH

$

$

Not available

22

Bear Cat 70534

SPACER,0.75 X 0.620

$10.99

$

Usually ships in 3-7 days

0

23

Bear Cat 71304

WELDMENT, ROLLER SLIDE

$

$

Not available

24

Bear Cat 71335

SHIELD, COUPLER

$45.99

$

Usually ships in 3-7 days

0

25

Bear Cat 73248

BEARING, SLIDE

$39.99

$

Usually ships in 3-7 days

0

26

Bear Cat 73249

SPACER, .75 OD X .5 ID X .37

$10.99

$

Usually ships in 3-7 days

0

27

Bear Cat 77135-00

ASSEMBLY, TOP GRAB ROLLER, SERVICE PART

Note: (INCLUDES ITEM 28)

$814.99

$

Usually ships in 3-7 days

0

28

Bear Cat 18061-00

DECAL, ROTATING SHAFT

$11.99

$

Usually ships in 3-7 days

0
