Chipper - BCS America Engine-Driven Chipper Shredder Generation II Chipper Unit (SN: 915694 & Above) Parts Diagram

Engine-Driven Chipper Shredder

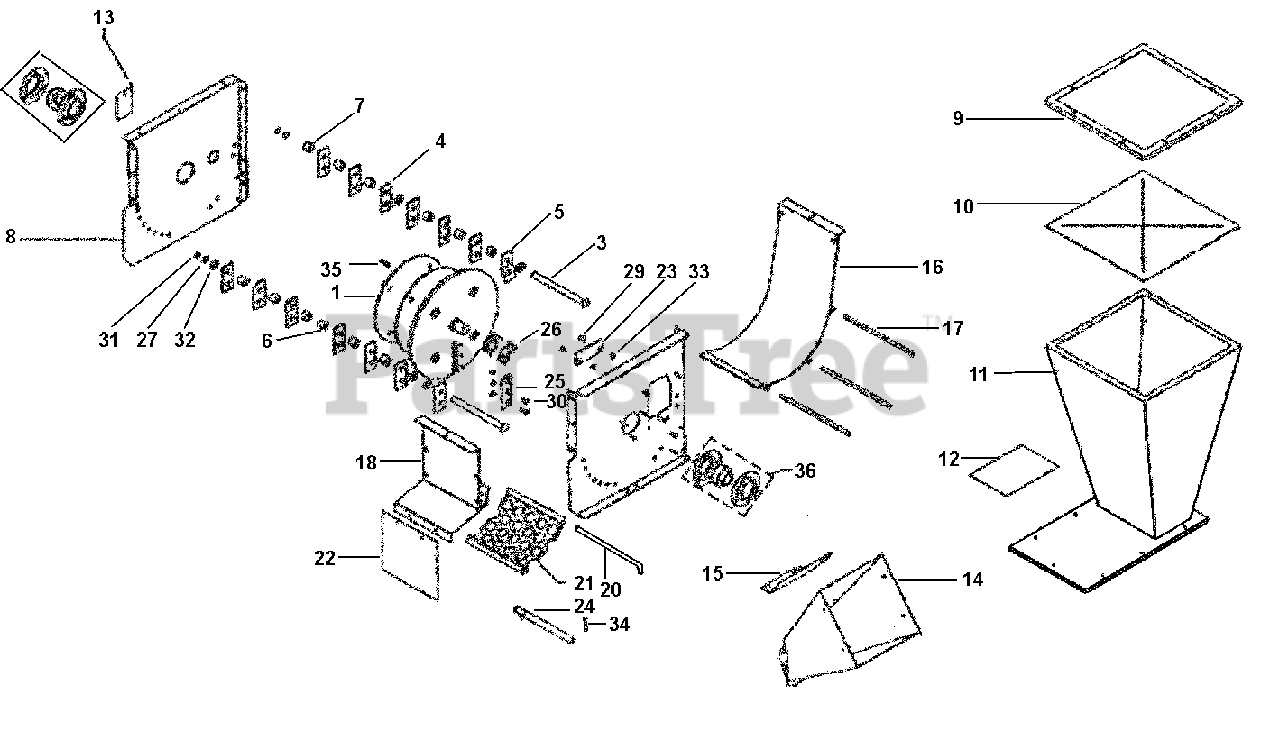

Generation II Chipper Unit (SN: 915694 & Above) Parts Diagram

  • Title

1

BCS America 010101000

ROTOR

$575.99

$

Usually ships in 5-8 days

0

NI

BCS America 010101001

ROTOR COMPLETE

$1418.99

$

Usually ships in 5-8 days

0

3

BCS America 010102000

SHAFT, HAMMER

$26.99

$

Usually ships in 5-8 days

0

4

BCS America 010103000

HAMMER, STRAIGHT

$4.99

$

Usually ships in 5-8 days

0

5

BCS America 010104000

HAMMER, L-SHAPED

$9.49

$

Usually ships in 5-8 days

0

6

BCS America 010105000

SPACER

$3.49

$

Usually ships in 5-8 days

0

7

BCS America 010108001

SPACER

$22.99

$

Usually ships in 5-8 days

0

8

BCS America 010141000

PANEL

$207.99

$

Usually ships in 5-8 days

0

9

BCS America 010300000

DEFLECTOR SUPPORT

$74.99

$

Usually ships in 5-8 days

0

10

BCS America 010302000

HOPPER FLAP

$71.99

$

Usually ships in 5-8 days

0

11

BCS America 010304000

HOPPER

$315.99

$

Usually ships in 5-8 days

0

12

BCS America 010610000

DECAL

$

$

Not available

13

BCS America 011300000

Cover Inspection

$11.99

$

Usually ships in 5-8 days

0

14

BCS America 011800050

CHIPPER CHUTE

$322.99

$

Usually ships in 5-8 days

0

15

BCS America 011800051

SUPPORT PLATE, CHUTE

$24.99

$

Usually ships in 5-8 days

0

16

BCS America 012000000

PANEL, BOTTOM

$114.99

$

Usually ships in 5-8 days

0

17

BCS America 012100000

SLEEVE

$41.99

$

Usually ships in 5-8 days

0

18

BCS America 012200000

DISCHARGE DEFLECTOR

$156.99

$

Usually ships in 5-8 days

0

19

BCS America 012500001

PANEL

$207.99

$

Usually ships in 5-8 days

0

20

BCS America 012700000

ROD

$15.99

$

Usually ships in 5-8 days

0

21

BCS America 012800000

SCREEN

$165.99

$

Usually ships in 5-8 days

0

22

BCS America 012900000

SHEILD

$21.99

$

Usually ships in 5-8 days

0

23

BCS America 013000000

BLADE, STATIONARY

$73.99

$

Usually ships in 5-8 days

0

24

BCS America 013200000

SLEEVE

$7.49

$

Usually ships in 5-8 days

0

25

BCS America 013300000

BLADE

$96.99

$

Usually ships in 5-8 days

0

26

BCS America 021100002

Shim

$4.49

$

Usually ships in 5-8 days

0

27

BCS America 080009016

SHIM

$1.99

$

Usually ships in 5-8 days

0

NI

BCS America 205000000

Lever

$21.16

$

Usually ships in 5-8 days

0

29

BCS America 500011008

BOLT

$1.99

$

Usually ships in 5-8 days

0

30

BCS America 500012008

BOLT

$4.49

$

Usually ships in 5-8 days

0

31

BCS America 510012000

CIRCLIP

$4.49

$

Usually ships in 5-8 days

0

32

BCS America 511120020

WASHER

$7.99

$

Usually ships in 5-8 days

0

33

BCS America 520002008

NUT

$

$

Not available

34

BCS America 530003000

COTTER PIN

$4.49

$

Usually ships in 5-8 days

0

35

BCS America 530004000

KEY

$

$

Not available

36

BCS America 550002030

BEARING ASSEMBLY

$84.99

$

Usually ships in 5-8 days

0
