CHT 220 (966712801) - RedMax Hedge Trimmer (2012-03) CARBURETOR AIR FILTER Parts Diagram

Hedge Trimmer

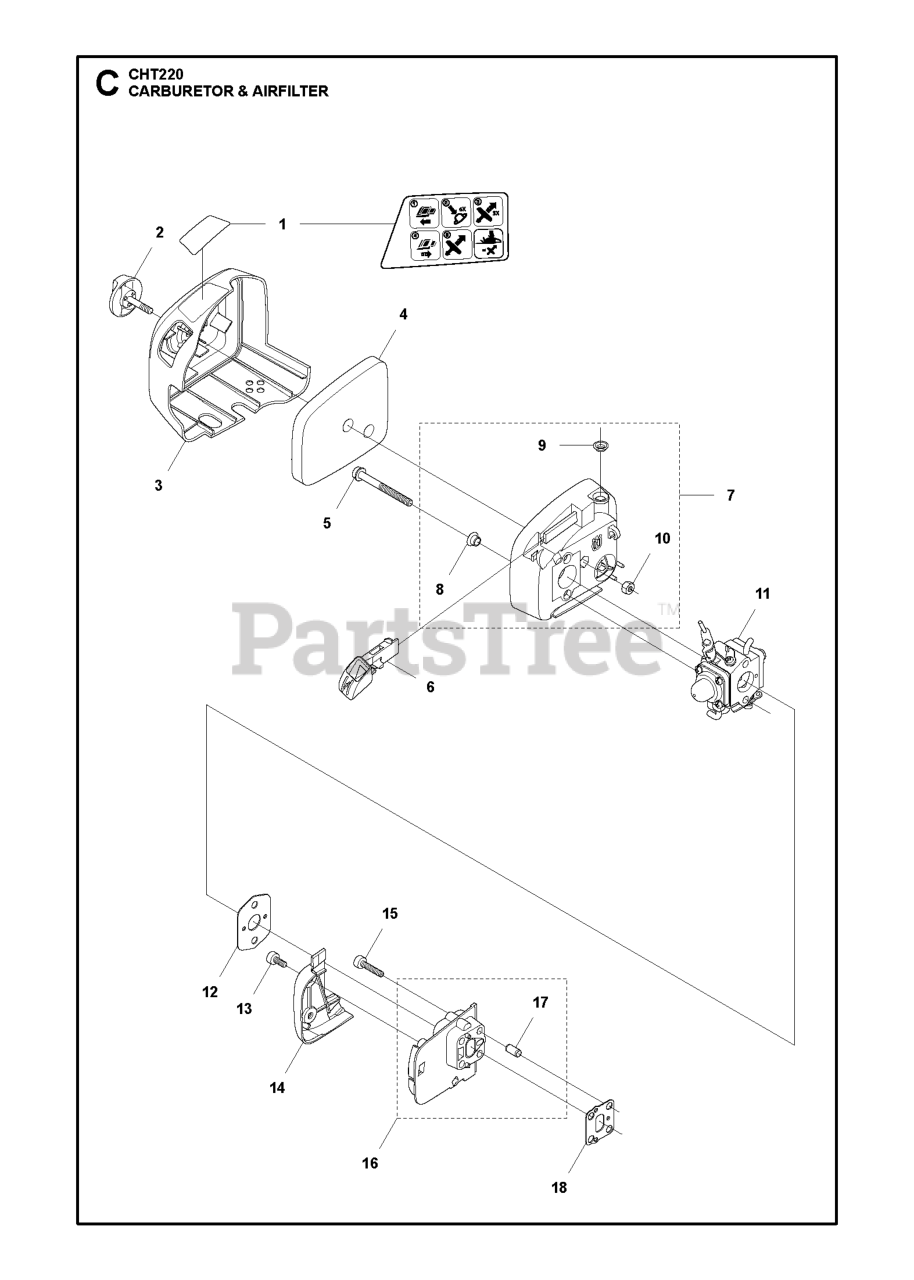

CARBURETOR AIR FILTER Parts Diagram

  • Title

1

RedMax 576645601

DECAL

$3.99

$

Usually ships in 3-10 days

0

2

RedMax 537213202

KNOB

$4.99

$

In Stock, Qty 5

0

3

RedMax 523013102

COVER AIR FILTER

$4.99

$

Usually ships in 3-10 days

0

4

RedMax 523013401

AIR FILTER

$6.49

$

In Stock, Qty 20+

0

5

RedMax 573925802

SCREW

$6.49

$

In Stock, only 2 left!

0

6

RedMax 523012501

CHOKE

$4.99

$

In Stock, only 1 left!

0

7

RedMax 523012702

FILTER HOLDER ASSY

$7.49

$

Usually ships in 3-10 days

0

8

RedMax 544105802

RIVET TUBULAR

$8.99

$

Usually ships in 3-10 days

0

9

RedMax 544105803

RIVET TUBULAR

$4.99

$

Usually ships in 3-10 days

0

10

RedMax 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

11

RedMax 523012401

CARBURETOR ASSY.

$93.99

$

Usually ships in 3-10 days

0

12

RedMax 525548501

GASKET

$4.99

$

In Stock, Qty 11

0

13

RedMax 574444002

SCREW

$4.99

$

Usually ships in 3-10 days

0

14

RedMax 576277502

BRACKET

$3.34

$

Usually ships in 3-10 days

0

15

RedMax 525760904

SCREW

$4.99

$

Usually ships in 3-10 days

0

16

RedMax 525741702

MANIFOLD

$7.49

$

Usually ships in 3-10 days

0

17

RedMax 522911301

TUBULAR RIVET

$3.99

$

Usually ships in 3-10 days

0

18

RedMax 522918501

GASKET

$4.99

$

Usually ships in 3-10 days

0
