CHT 220 (966712801) - RedMax Hedge Trimmer (2012-03) GEAR CASE Parts Diagram

Hedge Trimmer

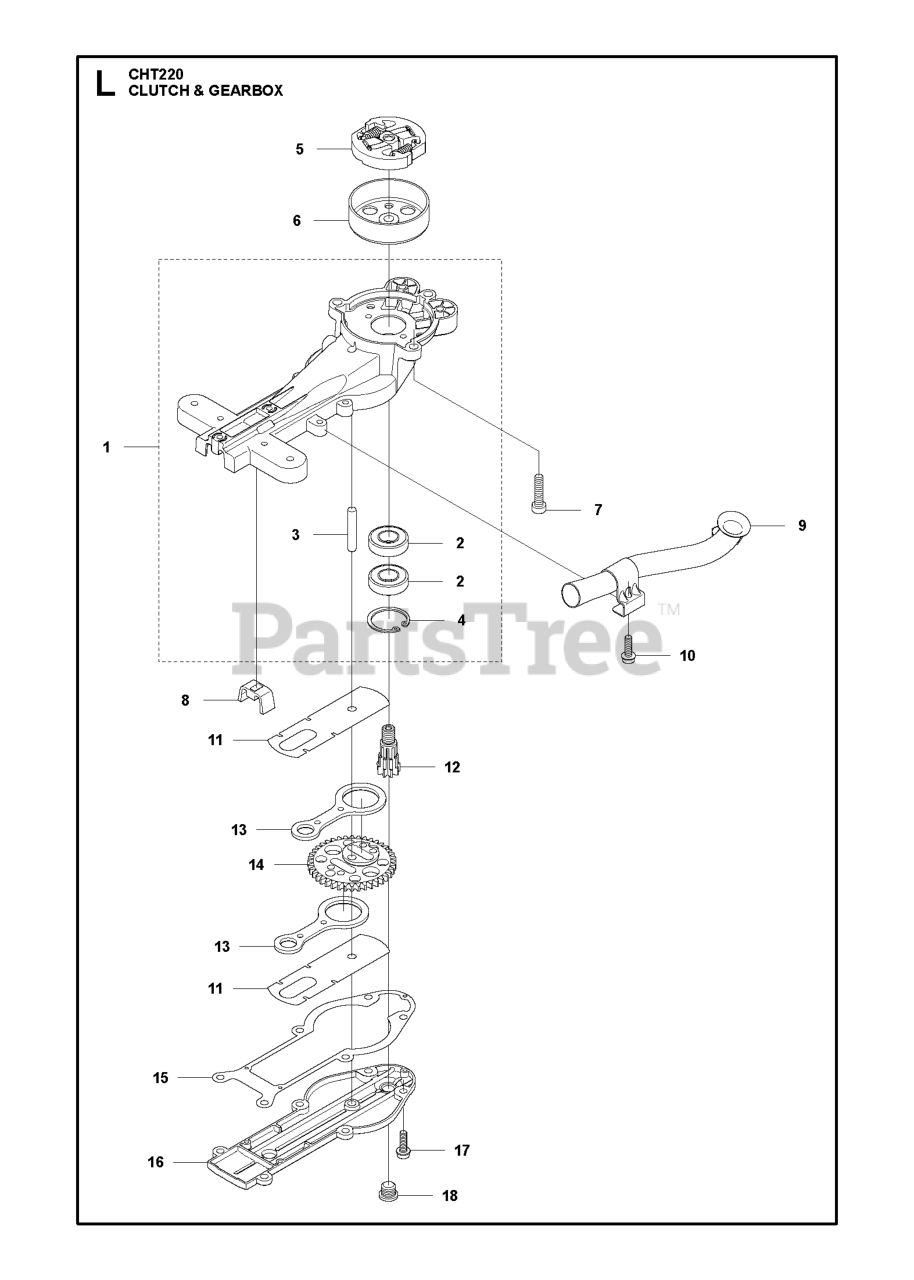

GEAR CASE Parts Diagram

  • Title

1

RedMax 577647601

GEAR HOUSING ASSY

$37.99

$

Usually ships in 3-10 days

0

2

RedMax 738210104

BALL BEARING

$24.99

$

In Stock, only 2 left!

0

3

RedMax 525528101

PIN

$3.99

$

Usually ships in 3-10 days

0

4

RedMax 506449301

CIRCLIP

$4.99

$

Usually ships in 3-10 days

0

5

RedMax 504084701

CLUTCH ASSY
(Superseded to 578439001)

$60.99

$

Usually ships in 3-10 days

0

6

RedMax 525528401

CLUTCH DRUM ASSY

$8.99

$

Usually ships in 3-10 days

0

7

RedMax 544218403

SCREW

$6.49

$

In Stock, only 1 left!

0

8

RedMax 575659901

GASKET

$3.99

$

Usually ships in 3-10 days

0

9

RedMax 523013601

EXHAUST PIPE ASSY.

$4.99

$

Usually ships in 3-10 days

0

10

RedMax 525755101

SCREW

$4.99

$

In Stock, only 3 left!

0

11

RedMax 525528201

WEAR PLATE

$3.99

$

In Stock, only 4 left!

0

12

RedMax 525528901

GEAR WHEEL SHAFT

$12.99

$

Usually ships in 3-10 days

0

13

RedMax 525528701

CONNECTING ROD

$9.99

$

In Stock, only 1 left!

0

14

RedMax 525528801

GEAR WHEEL

$42.99

$

Usually ships in 3-10 days

0

15

RedMax 525529001

GASKET

$4.99

$

In Stock, Qty 8

0

16

RedMax 525528301

CAP

$8.99

$

In Stock, only 1 left!

0

17

RedMax 525755101

SCREW

$4.99

$

In Stock, only 3 left!

0

18

RedMax 575484101

SCREW

$4.99

$

Usually ships in 3-10 days

0
