CHTZ 2500 - RedMax Hedge Trimmer (SN: 100101 & Above) (2002-04) 028 - CUTTING UNIT Parts Diagram

Hedge Trimmer

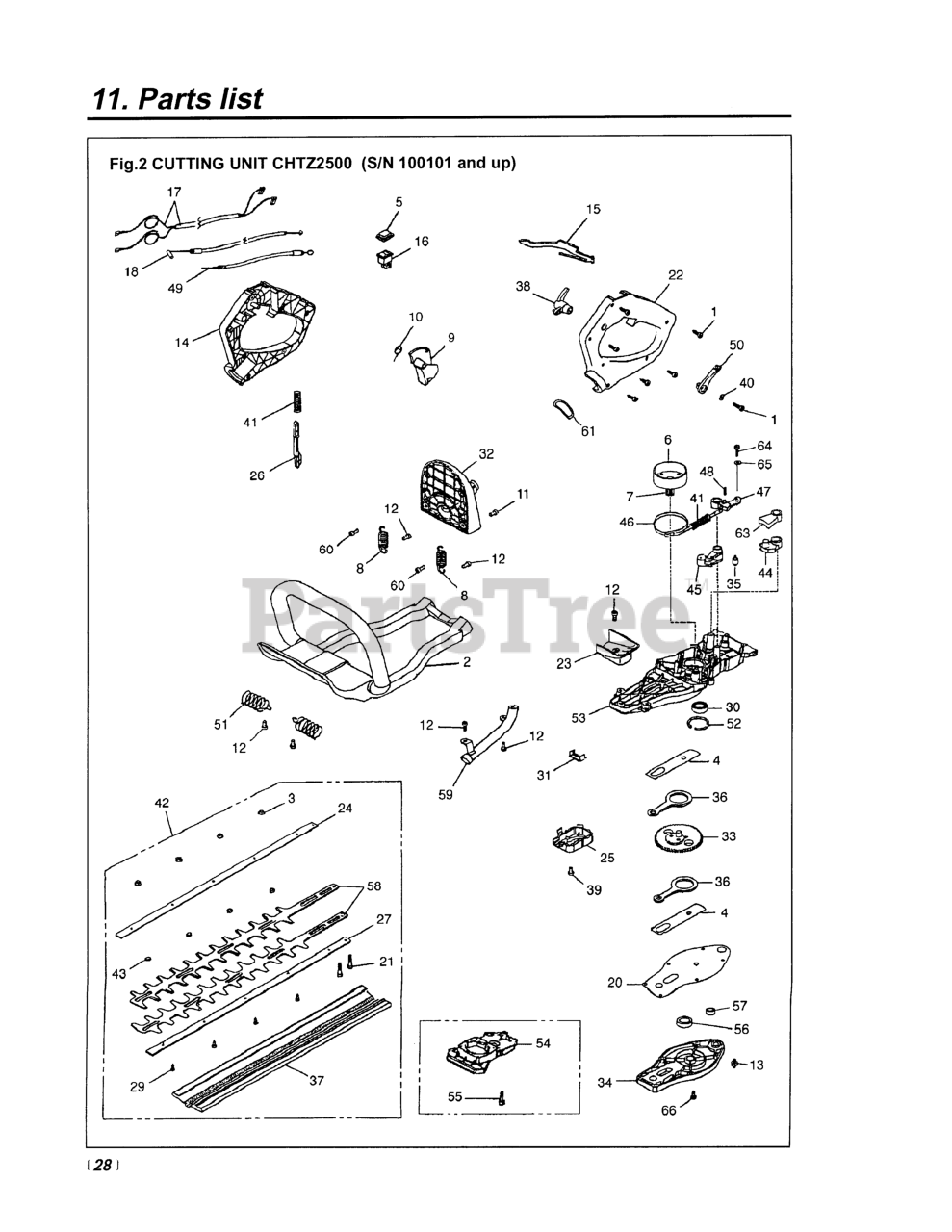

028 - CUTTING UNIT Parts Diagram

  • Title

1

RedMax 3960067

SCREW (HANDLE)
(Superseded to 574068401)

$6.99

$

Usually ships in 3-10 days

0

2

RedMax 58040185A

58040185
(Superseded to 574096901)

$

$

Not available

3

RedMax 3980014

NUT
(Superseded to 574069001)

$

$

Not available

4

RedMax 58040057

PLATE
(Superseded to 574071801)

$

$

Not available

5

RedMax 2317013

GUARD, SWITCH
(Superseded to 574066901)

$

$

Not available

6

RedMax 58040218

DRUM, CLUTCH
(Superseded to 574076501)

$

$

Not available

7

RedMax 58040217

GEAR, DRIVE (USE T4500-13110)
(Superseded to 521845501)

$79.99

$

Usually ships in 3-10 days

0

8

RedMax 58040080

SPRING
(Superseded to 574072401)

$

$

Not available

9

RedMax 58040084

LEVER, THROTTLE
(Superseded to 574072501)

$

$

Not available

10

RedMax 58040136

SPRING
(Superseded to 574074001)

$

$

Not available

11

RedMax 3960057

SCREW
(Superseded to 574068301)

$

$

Not available

12

RedMax 3960073

SCREW
(Superseded to 574068701)

$

$

Not available

13

RedMax 58040180

GREASE NIPPLE

$0.79

$

Usually ships in 3-10 days

0

14

RedMax 58040181

HANDLE
(Superseded to 574074801)

$

$

Not available

15

RedMax 58040085

LEVER
(Superseded to 574072601)

$

$

Not available

16

RedMax 2317021

SWITCH (RPLS 2317011A)
(Superseded to 574092701)

$

$

Not available

17

RedMax 58040175

SWITCH CABLE
(Superseded to 574074401)

$

$

Not available

18

RedMax 58040087

CABLE, THROTTLE
(Superseded to 574072701)

$

$

Not available

20

RedMax 58040177

GASKET
(Superseded to 574074601)

$

$

Not available

21

RedMax 3960067

SCREW (HANDLE)
(Superseded to 574068401)

$6.99

$

Usually ships in 3-10 days

0

22

RedMax 58040183

HANDLE, REAR
(Superseded to 574075001)

$

$

Not available

23

RedMax 58040184

DEFLECTOR

$2.94

$

Usually ships in 3-10 days

0

24

RedMax 58040191

SUPPORT, BLADE

$35.52

$

Usually ships in 3-10 days

0

25

RedMax 58040196A

58040196
(Superseded to 574075801)

$

$

Not available

26

RedMax 58040090

ROD
(Superseded to 574073001)

$

$

Not available

27

RedMax 58040045

GUIDE, BLADE

$24.19

$

Usually ships in 3-10 days

0

29

RedMax 3979021

SCREW
(Superseded to 574068901)

$

$

Not available

30

RedMax 3035019

BEARING
(Superseded to 574093701)

$

$

Not available

31

RedMax 58040077

GASKET (USE 58040077A)
(Superseded to 574096801)

$

$

Not available

32

RedMax 58040187

SUPPORT
(Superseded to 574075401)

$

$

Not available

33

RedMax 58040230

58040267
(Superseded to 521845601)

$

$

Not available

34

RedMax 58040188

COVER
(Superseded to 574075501)

$

$

Not available

35

RedMax 58040072

ROLLER
(Superseded to 574072101)

$

$

Not available

36

RedMax 58040227

58040227A
(Superseded to 574097801)

$

$

Not available

37

RedMax 58040092

GUARD, BLADE
(Superseded to 574073201)

$

$

Not available

38

RedMax 58040088

LEVER
(Superseded to 574072801)

$

$

Not available

39

RedMax 3960073

SCREW
(Superseded to 574068701)

$

$

Not available

40

RedMax 3918003

WASHER
(Superseded to 574068001)

$

$

Not available

41

RedMax 58040091

SPRING
(Superseded to 574073101)

$

$

Not available

42

RedMax 58040205A

58040205B
(Superseded to 58040205B)

$224.99

$

Usually ships in 3-10 days

0

43

RedMax 58040051

SPACER
(Superseded to 574071701)

$

$

Not available

44

RedMax 58040073

CAM, BRAKE
(Superseded to 574072201)

$

$

Not available

45

RedMax 58040095

LEVER
(Superseded to 574073301)

$

$

Not available

46

RedMax 58040017

BAND, BRAKE
(Superseded to 574071301)

$

$

Not available

47

RedMax 58040070

LEVER, BAND
(Superseded to 574072001)

$

$

Not available

48

RedMax 3033019

PIN
(Superseded to 574067401)

$

$

Not available

49

RedMax 58040186

CABLE, THROTTLE

$

$

Not available

50

RedMax 58040089

LEVER

$1.77

$

Usually ships in 3-10 days

0

51

RedMax 58040079

SPRING
(Superseded to 58040079AR)

$1.99

$

Usually ships in 3-10 days

0

52

RedMax 3025022

RING, SNAP
(Superseded to 574067201)

$

$

Not available

53

RedMax 58042021A

CASE, GEAR (RPLS 58042021)
(Superseded to 574097901)

$

$

Not available

54

RedMax 58040189

COVER, GEAR
(Superseded to 574075601)

$

$

Not available

55

RedMax 3960082B

SCREW TORX, M5X22
(Superseded to 574095101)

$

$

Not available

56

RedMax 58040176

BEARING
(Superseded to 574074501)

$

$

Not available

57

RedMax 58040182

BEARING
(Superseded to 574074901)

$

$

Not available

58

RedMax 58040043A

BLADE (REPLACES 58040043)
(Superseded to 574096501)

$

$

Not available

59

RedMax 58040135

DEFLECTOR
(Superseded to 574073901)

$

$

Not available

60

RedMax 3960070

SCREW
(Superseded to 574068601)

$

$

Not available

61

RedMax 3027015

SPACER
(Superseded to 574067301)

$

$

Not available

63

RedMax 58040074

LEVER
(Superseded to 574072301)

$

$

Not available

64

RedMax 3960069

SCREW
(Superseded to 574068501)

$

$

Not available

65

RedMax 3918003

WASHER
(Superseded to 574068001)

$

$

Not available

66

RedMax 3960082B

SCREW TORX, M5X22
(Superseded to 574095101)

$

$

Not available
