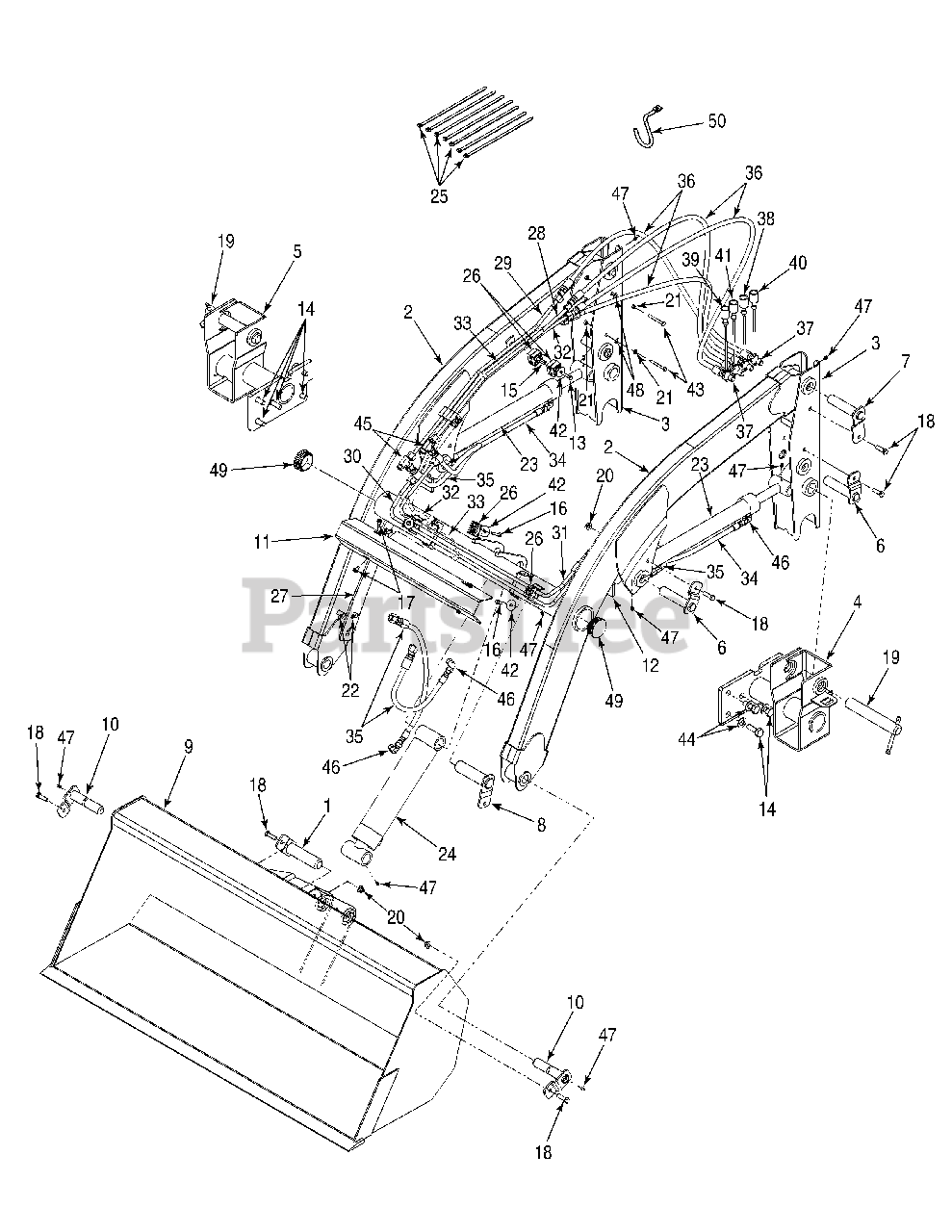

CL 100 (59A40001727) - Cub Cadet Yanmar Tractor Curved Boom Loader General Assembly 1 Parts Diagram

Tractor Curved Boom Loader

General Assembly 1 Parts Diagram

  • Title

1

Cub Cadet YS-603-04405

Pin, Loader

$

$

Not available

2

Cub Cadet YS-603-04481

Boom Assembly

$

$

Not available

3

Cub Cadet YS-603-04482

Mast, Vertical Support LH

$

$

Not available

4

Cub Cadet YS-603-04483

Mount, LH

$

$

Not available

5

Cub Cadet YS-603-04484

Mount, RH

$

$

Not available

6

Cub Cadet YS-603-04485

Pin, Loader

$

$

Not available

7

Cub Cadet YS-603-04487

Pin, Loader - Long

$

$

Not available

8

Cub Cadet YS-603-04549

Pin, Bucket Cylinder

$

$

Not available

9

Cub Cadet YS-603-04552

Bucket, Loader

$

$

Not available

10

Cub Cadet YS-603-04583

Pin, Loader

$

$

Not available

11

Cub Cadet YS-703-06385

Bracket, Tube Cover

$

$

Not available

12

Cub Cadet YS-703-06470

Stand, Loader - LH

$

$

Not available

13

Cub Cadet YS-710-0106

Screw, Hex Cap, 1/4-20 x 1.25 Gr5
(Superseded to 710-0106)

$3.99

$

In Stock, only 1 left!

0

14

Cub Cadet YS-710-04028

Screw, Hex Cap, M16-2.4 Gr8.8
(Superseded to 710-04028)

$

$

Not available

15

Cub Cadet YS-710-04729

Bolt, Stacking, 1/4-20 x 3/4
(Superseded to 710-04729)

$

$

Not available

16

Cub Cadet YS-710-0778

Screw, Hex Tapp, 1/4-20 x 1.5
(Superseded to 710-0778)

$3.99

$

In Stock, Qty 19

0

17

Cub Cadet YS-710-1652

Screw, Hex Wash. Hd. Tapp 1/4-20 x .625
(Superseded to 710-1652)

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet YS-710-3005

Screw, Hex Cap, 3/8-16 x 1.25 Gr5
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet YS-711-04874

Pin, Mast Mounting

$

$

Not available

20

Cub Cadet YS-712-04065

Nut, Hex Flange Insert Lock 3/8-16 GrF
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet YS-712-3006

Nut, Hex, 1/4-20 Gr5
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet YS-714-0101

Pin, Internal Cotter
(Superseded to 914-0101)

$

$

Not available

23

Cub Cadet YS-717-04435

Cylinder, Boom Lift

$

$

Not available

24

Cub Cadet YS-717-04516

Cylinder, Loader Bucket

$

$

Not available

25

Cub Cadet YS-726-0230

Tie, Cable - Tie hose to cylinders
(Superseded to 726-0230)

$25.99

$

In Stock, only 2 left!

0

26

Cub Cadet YS-726-04081

Clamp, Tube
(Superseded to 726-04081)

$

$

Not available

27

Cub Cadet YS-703-06706

Stand, Loader - RH

$

$

Not available

28

Cub Cadet YS-727-04225

Tube, Hydraulic - Boom Raise

$

$

Not available

29

Cub Cadet YS-727-04226

Tube, Hydraulic - Boom Lower

$

$

Not available

30

Cub Cadet YS-727-04227

Tube, Hyd., U Shape - Boom Lower

$

$

Not available

31

Cub Cadet YS-727-04229

Tube, Hyd., U Shape - Boom Raise

$

$

Not available

32

Cub Cadet YS-727-04231

Tube, Hydraulic - Bucket Dump

$

$

Not available

33

Cub Cadet YS-727-04232

Tube, Hydraulic - Bucket Curl

$

$

Not available

34

Cub Cadet YS-727-04234

Hose, Hydraulic, 26 inch

$

$

Not available

35

Cub Cadet YS-727-04237

Hose, Hydraulic, 19 inch

$

$

Not available

36

Cub Cadet YS-727-04242A

Hose, Hydraulic, 60 inch

$

$

Not available

36

Cub Cadet YS-727-04213

Sleeve, Hose

Note: not shown

$

$

Not available

37

Cub Cadet YS-727-04243

Coupling, Mail Quick Connect

$

$

Not available

38

Cub Cadet YS-727-04249

Cap, Coupler Protective - Green

$

$

Not available

39

Cub Cadet YS-727-04250

Cap, Coupler Protective - Yellow

$

$

Not available

40

Cub Cadet YS-727-04251

Cap, Coupler Protective - Blue

$

$

Not available

41

Cub Cadet YS-727-04252

Cap, Coupler Protective - Red

$

$

Not available

42

Cub Cadet YS-736-0211

Washer, Flat, .285 x 1.25 x .06
(Superseded to 936-0211)

$6.49

$

Usually ships in 3-6 days

0

43

Cub Cadet YS-710-0641

Screw, Hex Cap, 1/4-20 x 2.25 Gr5
(Superseded to 710-0641)

$3.99

$

In Stock, only 4 left!

0

44

Cub Cadet YS-736-04181

Washer, Flat, .69 x 1.25 x .075
(Superseded to GW-50027)

$6.49

$

In Stock, Qty 10

0

45

Cub Cadet YS-737-04197

Fitting, Branch Tee, 3/8

$

$

Not available

46

Cub Cadet YS-737-04211

Fitting, Elbow, 1/4 x 1/4 Orb

$

$

Not available

47

Cub Cadet YS-737-0146

Fitting, Lube
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

48

Cub Cadet YS-736-0463

Washer, Flat, .25 x .63 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

49

Cub Cadet YS-731-06405

Plug, Tube End

$

$

Not available

50

Cub Cadet YS-747-04971

Rod, Hook

$

$

Not available
