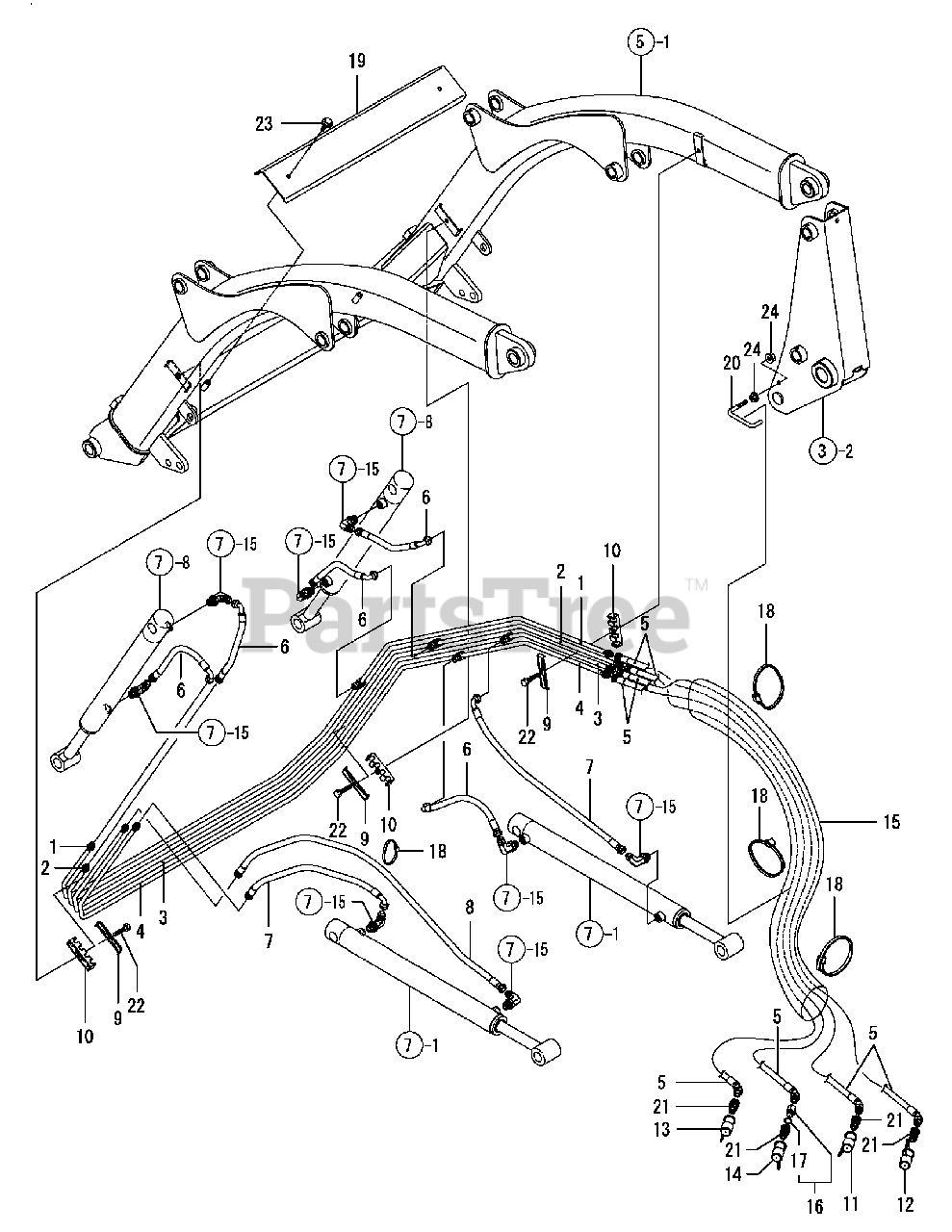

CL 200 (59A40002727) - Cub Cadet Yanmar Tractor Curved Boom Loader Attachment Loader Hydraulic Piping Parts Diagram

Tractor Curved Boom Loader Attachment

Loader Hydraulic Piping Parts Diagram

  • Title

1

Cub Cadet CY-1TN325-41110

HP Pipe A2

$

$

Not available

2

Cub Cadet CY-1TN325-41120

HP Pipe B2

$

$

Not available

3

Cub Cadet CY-1TN325-41130

HP Pipe A1

$

$

Not available

4

Cub Cadet CY-1TN325-41140

HP Pipe B1

$

$

Not available

5

Cub Cadet CY-1TN325-41310

HP Hose, Intake

$

$

Not available

6

Cub Cadet CY-1TN325-41410

HP Hose A

$

$

Not available

7

Cub Cadet CY-1TN325-41430

HP Hose B

$

$

Not available

8

Cub Cadet CY-1TN325-41450

HP Hose C

$

$

Not available

9

Cub Cadet CY-1TN325-41550

Cover, Clamp

$

$

Not available

10

Cub Cadet CY-1TN325-41560

Clamp, Pipe

$

$

Not available

11

Cub Cadet CY-1TN325-41750

Dust Plug, Red M

$

$

Not available

12

Cub Cadet CY-1TN325-41760

Dust Plug, Blue M

$

$

Not available

13

Cub Cadet CY-1TN325-41770

Dust Plug, Yellow M

$

$

Not available

14

Cub Cadet CY-1TN325-41780

Dust Plug, Green M

$

$

Not available

15

Cub Cadet CY-1TN325-41790

Cover, Hose Intake

$

$

Not available

16

Cub Cadet CY-1TN325-41970

Orfice Assy, 1/8

$

$

Not available

17

Cub Cadet CY-194850-49290

Packing 6-1

$

$

Not available

18

Cub Cadet CY-29622-250001

Band

$

$

Not available

19

Cub Cadet CY-1TN325-41510

Cover, Pipe

$

$

Not available

20

Cub Cadet CY-1TN325-41730

Clamp, Hose

$

$

Not available

21

Cub Cadet CY-1TN325-41910

Coupler,Quick 1/4M

$

$

Not available

22

Cub Cadet CY-26106-060302

Bolt M 6X 30 Plated

$

$

Not available

23

Cub Cadet CY-26106-080162

Bolt M 8X 16 Plated

$

$

Not available

24

Cub Cadet CY-26366-080002

Nut M 8

$

$

Not available

Note3-2, Refers to SUPPORT FRAME, Ref No. 2

$

$

Not available

Note5-1, Refers to BOOM, Ref No. 1

$

$

Not available

Note7-1, Refers to CYLINDER, Ref No. 1

$

$

Not available

Note7-8, Refers to CYLINDER, Ref No. 8

$

$

Not available

Note7-15, Refers to CYLINDER, Ref No. 15

$

$

Not available
