CL 200 (59A40002727) - Cub Cadet Yanmar Tractor Curved Boom Loader Attachment Loader Support Frame Parts Diagram

Tractor Curved Boom Loader Attachment

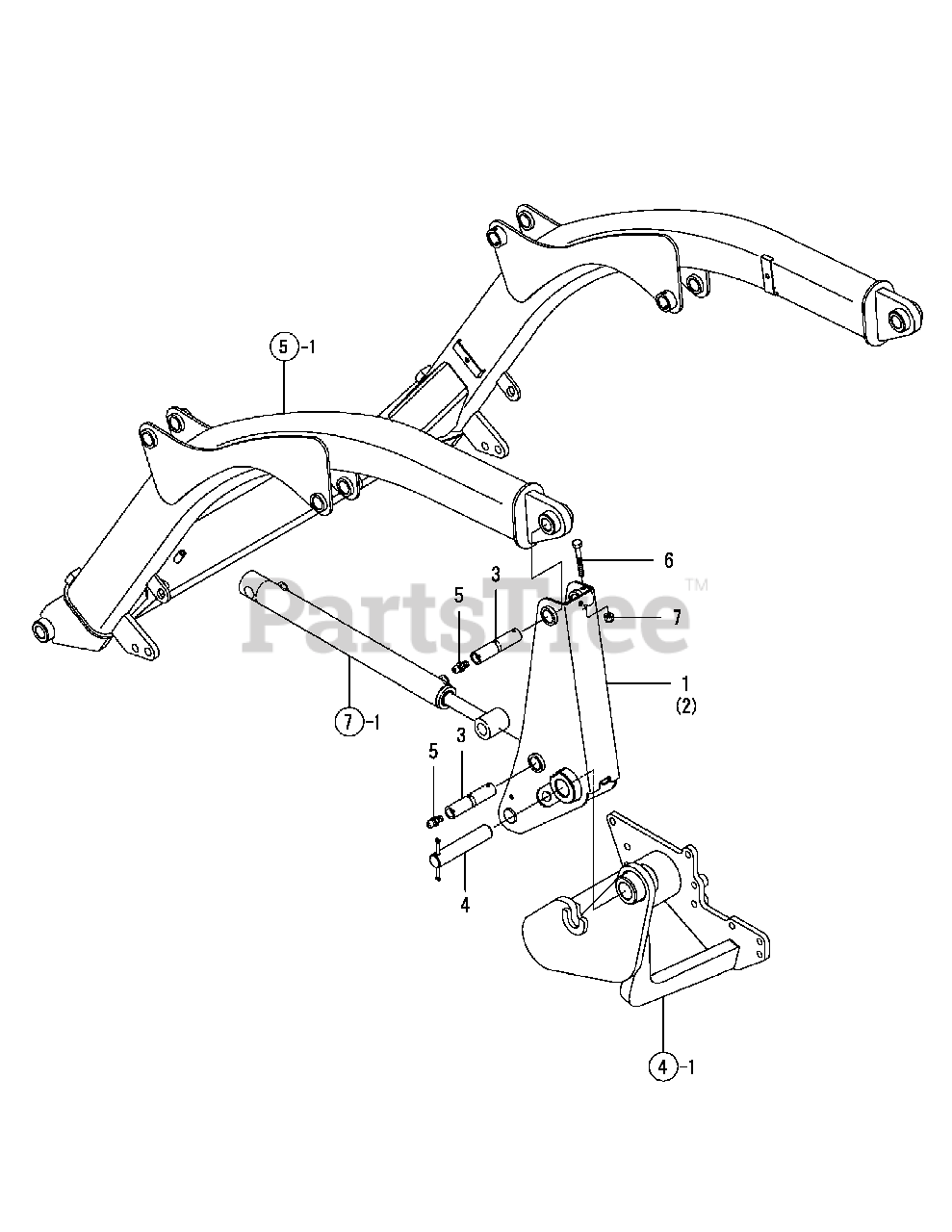

Loader Support Frame Parts Diagram

  • Title

1

Cub Cadet CY-1TN325-11010

Support PL Assy, L

$

$

Not available

2

Cub Cadet CY-1TN325-11020

Support PL Assy, R

$

$

Not available

3

Cub Cadet CY-1TN325-73110

1-115 Pin

$

$

Not available

4

Cub Cadet CY-1TN322-73310

Lock Pin Cmp

$

$

Not available

5

Cub Cadet CY-24761-010000

Nipple M6F, Grease

$

$

Not available

6

Cub Cadet CY-26116-060502

Bolt M 6X 50 Plated

$

$

Not available

7

Cub Cadet CY-26346-060002

U-Nut M 6

$

$

Not available

Note 4-1, Refers to BRACKET, Ref No. 1

$

$

Not available

Note 5-1, Refers to BOOM, Ref No. 1

$

$

Not available

Note 7-1, Refers to CYLINDER, Ref No. 1

$

$

Not available
