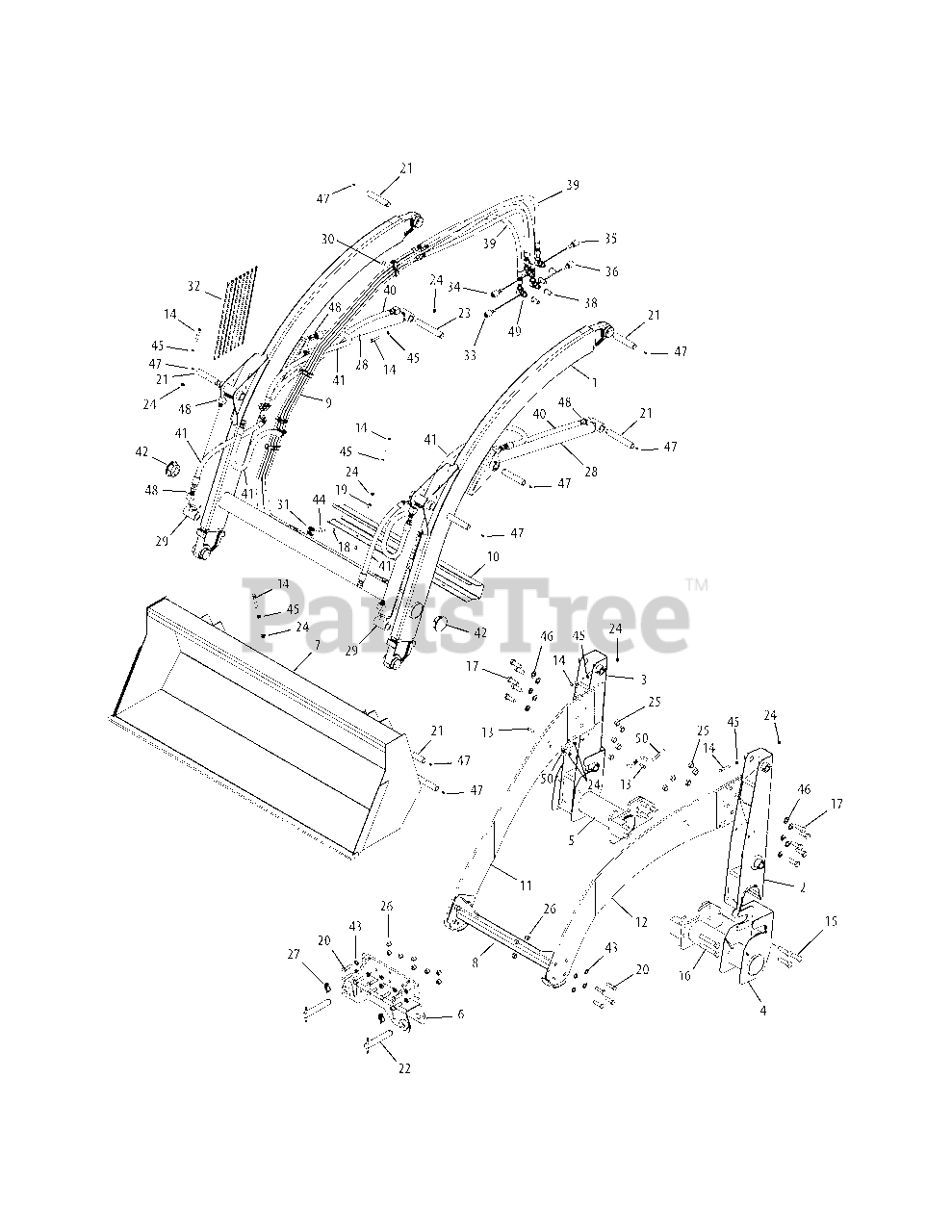

CL 300 (59A40003727) - Cub Cadet Yanmar Tractor Curved Boom Loader General Assembly 2010 & After Parts Diagram

Tractor Curved Boom Loader

General Assembly 2010 & After Parts Diagram

  • Title

1

Cub Cadet YS-603-04623A

Arm Assembly, Main

$

$

Not available

2

Cub Cadet YS-603-04624

Support Assembly, Vertical, LH

$

$

Not available

3

Cub Cadet YS-603-04625

Support Assembly, Vertical, RH

$

$

Not available

4

Cub Cadet YS-603-04626

Mount Assembly, LH

$

$

Not available

5

Cub Cadet YS-603-04627

Mount Assembly, RH

$

$

Not available

6

Cub Cadet YS-603-04629

Receptacle Assembly, Loader

$

$

Not available

7

Cub Cadet YS-603-04636

Bracket Assembly, Loader

$

$

Not available

8

Cub Cadet YS-603-04641

Bracket Assembly, Hitch Loader

$

$

Not available

9

Cub Cadet N/A

Tube Assembly, Loader

Note: Order Components

$

$

Currently unavailable

9

Cub Cadet YS-703-07666

Bracket, Clamp Hyd

Note: Not shown

$

$

Not available

9

Cub Cadet 710-0597

Screw 1/4-20 x1.00 GR5

Note: Not shown

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet YS-727-04325

Tube , Hydro Raise

Note: Not shown

$

$

Not available

9

Cub Cadet YS-727-04326

Tube , Hydro Dump

Note: Not shown

$

$

Not available

9

Cub Cadet YS-727-04327

Tube , Hydro Lower

Note: Not shown

$

$

Not available

9

Cub Cadet YS-727-04328

Tube , Hydro Curl

Note: Not shown

$

$

Not available

10

Cub Cadet YS-703-06857

Cover, Tube, Loader

$

$

Not available

11

Cub Cadet YS-703-07143

Bracket, Loader, RH

$

$

Not available

12

Cub Cadet YS-703-07145

Bracket, Loader, LH

$

$

Not available

13

Cub Cadet YS-710-0376

Hex Screw, 5/16-18, 1.00, Gr5
(Superseded to 710-0376)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet YS-710-0395

Hex Screw, 5/16-18, 2.25, Gr5
(Superseded to 710-0395)

$4.99

$

In Stock, Qty 8

0

15

Cub Cadet YS-710-04700

Screw, M16-20, 60mm
(Superseded to 710-04700)

$

$

Not available

16

Cub Cadet YS-710-04701

Screw, M16-2.00, 100mm
(Superseded to 710-04701)

$

$

Not available

17

Cub Cadet YS-710-04706

Hex Screw, 5/8-11, 1.75, Gr8
(Superseded to 710-04706)

$

$

Not available

18

Cub Cadet 710-1122

Hex Screw, 1/4-20, 2.50, Gr5

$7.99

$

Usually ships in 3-6 days

0

19

Cub Cadet YS-710-1652

Screw, Self-tapping 1/4-20 x .625
(Superseded to 710-1652)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet YS-710-3067

Hex Screw, 1/2-13, 1.75, Gr5
(Superseded to 710-3067)

$7.49

$

In Stock, only 2 left!

0

21

Cub Cadet YS-711-05018

Pin, 1"OD, 5", Grease, w/ 5/16" Hole

$

$

Not available

22

Cub Cadet YS-711-05034B

Pin, 1"OD, w/ Handle

$

$

Not available

23

Cub Cadet YS-711-05194

Pin, 1"OD, 6.5", Grease, 5/16" Hole

$

$

Not available

24

Cub Cadet YS-712-04063

Nut, Flange Lock, 5/16-18, GrF,
(Superseded to 712-04063)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet YS-712-04143

Nut, Flange, 5/8-11 Top Lock
(Superseded to 712-04143)

$

$

Not available

26

Cub Cadet YS-712-3083

Nut, Hex Lock, 1/2-13, GrB, Nylon
(Superseded to 712-3083)

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet YS-714-0143A

Pin, Klik, .245 Dia X 1.406
(Superseded to 714-0143A)

$6.99

$

In Stock, only 2 left!

0

28

Cub Cadet YS-717-04625

Cylinder, 28", 1.625" Bore

$

$

Not available

29

Cub Cadet YS-717-04626

Cylinder, 24", 2" Bore

$

$

Not available

30

Cub Cadet 726-0233

Nut, Push, .25 Id X .50 OD

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet YS-726-04081

Clamp, Tube
(Superseded to 726-04081)

$

$

Not available

32

Cub Cadet YS-726-04098

Cable Tie, 18"
(Superseded to 726-04098)

$3.49

$

Usually ships in 3-6 days

0

33

Cub Cadet YS-727-04197

Plug, Female, Hydraulic Coupler, Green

$

$

Not available

34

Cub Cadet YS-727-04198

Plug, Female, Hydraulic Coupler, Blue

$

$

Not available

35

Cub Cadet YS-727-04199

Plug, Female, Hydraulic Coupler, Yellow

$

$

Not available

36

Cub Cadet YS-727-04200

Plug, Female, Hydraulic Coupler, Red

$

$

Not available

38

Cub Cadet 727-04259

Coupling, Hydraulic, Male Sae, 3/8

$

$

Not available

39

Cub Cadet 727-04332

Hose, Hydraulic, 1/2 ORB, 3/8 ORFS

Note: 1/2 Male ORB/SAE Seal Swivel 3/4-16 Thread, 3/8 Female Swivel ORFS

$

$

Not available

40

Cub Cadet 727-04333

Hose, Hydraulic, 3/8 ORFS-3/8 ORFS 90

Note: 3/8 Female Swivel ORFS, 3/8 Female Swivel 90 Degree ORFS

$

$

Not available

41

Cub Cadet 727-04334

Hose, Hydraulic, 3/8 ORFS-3/8 ORFS 90

Note: 3/8 Female Swivel ORFS, 3/8 Female Swivel 90 Degree ORFS

$

$

Not available

42

Cub Cadet YS-731-06405

Plug, Tube, Round

$

$

Not available

43

Cub Cadet YS-736-0192

Washer, Flat, .535x.930x.090
(Superseded to 936-0192)

$4.99

$

In Stock, Qty 16

0

44

Cub Cadet YS-736-0211

Washer, Flat, .285 X 1.25 X .06
(Superseded to 736-0211)

$7.49

$

In Stock, only 2 left!

0

45

Cub Cadet YS-736-0264

Washer, Flat, .330 x .630 x .064

$

$

Currently unavailable

46

Cub Cadet YS-736-0366

Washer, Flat, .640x1.120x.125
(Superseded to 736-0366)

$4.99

$

In Stock, Qty 7

0

47

Cub Cadet YS-737-0146

Grease Fitting
(Superseded to 937-0146)

$5.99

$

Usually ships in 3-6 days

0

48

Cub Cadet YS-737-04186A

Fitting, Straight, 3/8 ORFS X 3/8 ORB

$

$

Not available

49

Cub Cadet 737-04229

Fitting, Hydraulic, 90, -8 ORB X -8 FORB

$

$

Not available

50

Cub Cadet YS-747-04753

Rod, Hook

$

$

Not available

Cub Cadet YS-727-04213A

Hose Sleeve

Note: Not shown

$

$

Not available
