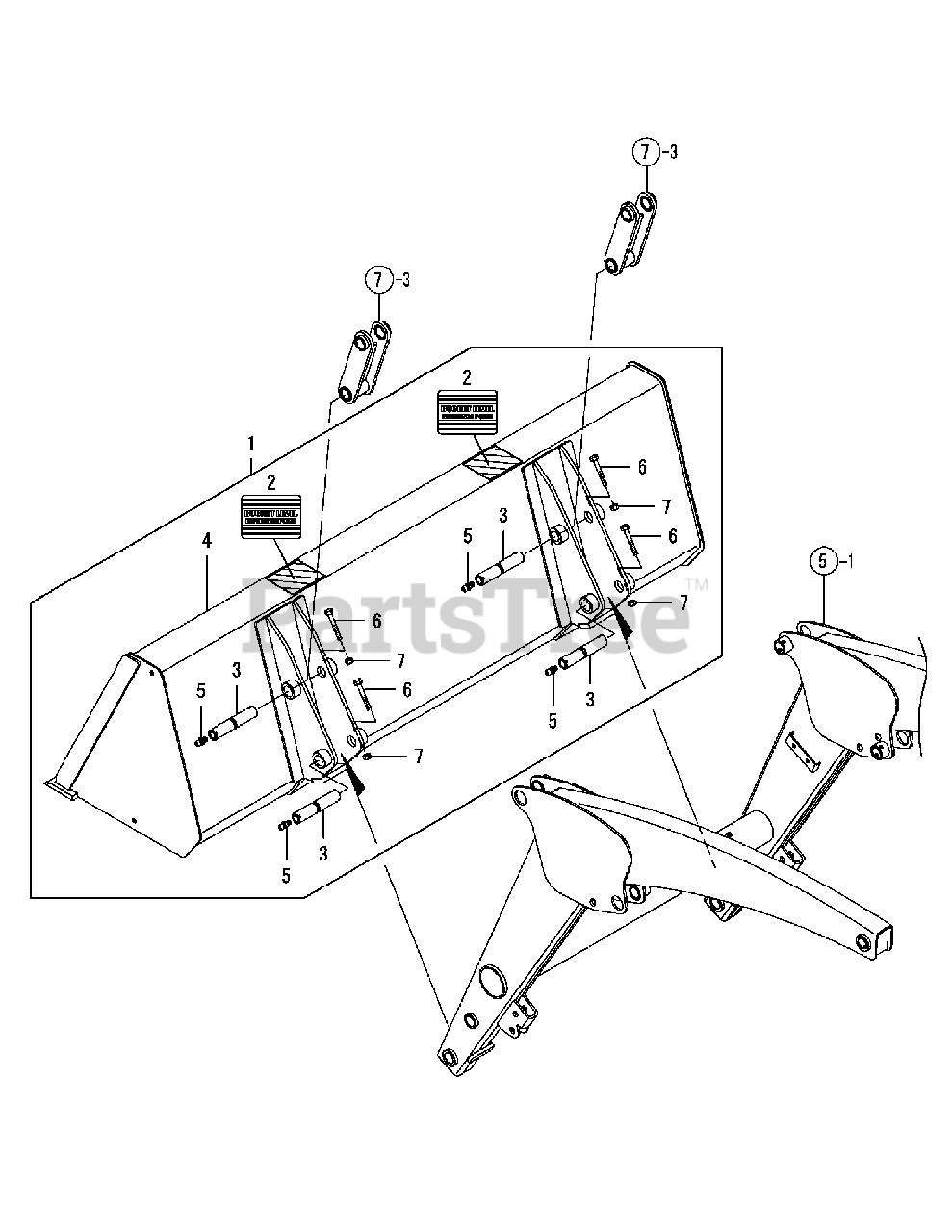

CL 400 (59A40066727) - Cub Cadet Yanmar Tractor Curved Boom Loader Attachment Bucket Pin On Parts Diagram

Tractor Curved Boom Loader Attachment

Bucket Pin On Parts Diagram

  • Title

1

Cub Cadet CY-1TN322-81100

BUCKET KIT

$

$

Not available

2

Cub Cadet CY-1TN322-01610

LABEL, BUCKET

$

$

Not available

3

Cub Cadet CY-1TN322-73150

9/8-155 PIN

$

$

Not available

4

Cub Cadet CY-1TN322-81110

BUCKET ASSY

$

$

Not available

5

Cub Cadet CY-24761-010000

FITTING, M6F

$

$

Not available

6

Cub Cadet CY-26116-080602

BOLT, 8 X 60

$

$

Not available

7

Cub Cadet CY-26347-080002

U-NUT, 8
(Superseded to CY-26346-080002)

$

$

Not available

Note:5-1 Refers to LIFT ARM, Ref No. 1

$

$

Not available

Note:7-3 Refers to DUMP LINK, Ref No. 3

$

$

Not available
