CL 400 (59A40066727) - Cub Cadet Yanmar Tractor Curved Boom Loader Attachment Cylinder Parts Diagram

Tractor Curved Boom Loader Attachment

Cylinder Parts Diagram

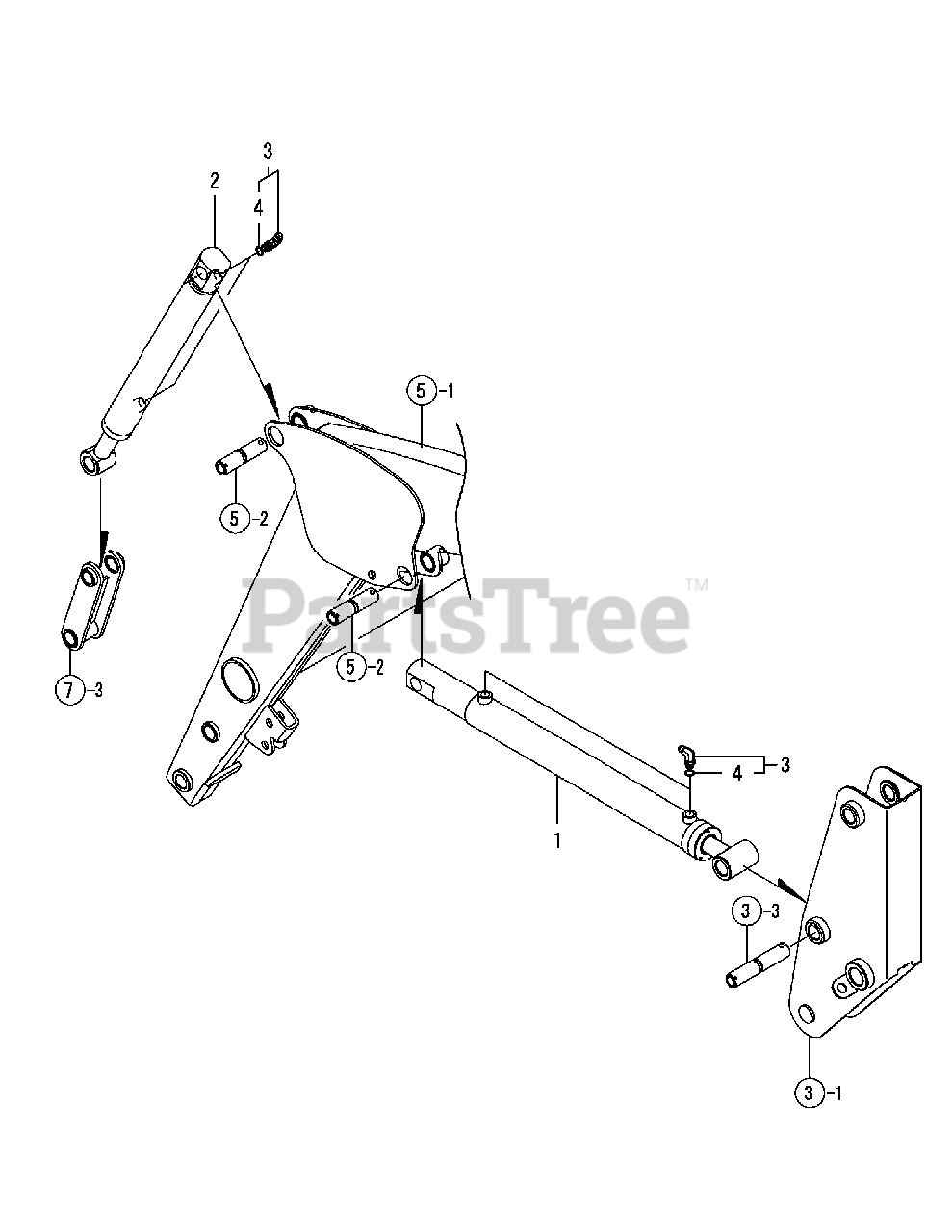

  • Title

1

Cub Cadet CY-1TN322-38100

LIFT CYLINDER ASSY

$

$

Not available

2

Cub Cadet CY-1TN322-38200

DUMP CYLINDER ASSY

$

$

Not available

3

Cub Cadet CY-1TN322-38910

JOINT,90SAE9/16-18

$

$

Not available

4

Cub Cadet CY-1TN322-38930

PACKING, JOINT

$

$

Not available

Note:3-1 Refers to SUPPORT FRAME, Ref No. 1

$

$

Not available

Note:3-3 Refers to SUPPORT FRAME, Ref No. 3

$

$

Not available

Note:5-1 Refers to LIFT ARM, Ref No. 1

$

$

Not available

Note:5-2 Refers to LIFT ARM, Ref No. 2

$

$

Not available

Note:7-3 Refers to DUMP LINK, Ref No. 3

$

$

Not available
