CL 400 (59A40066727) - Cub Cadet Yanmar Tractor Curved Boom Loader Attachment Dump Link Parts Diagram

Tractor Curved Boom Loader Attachment

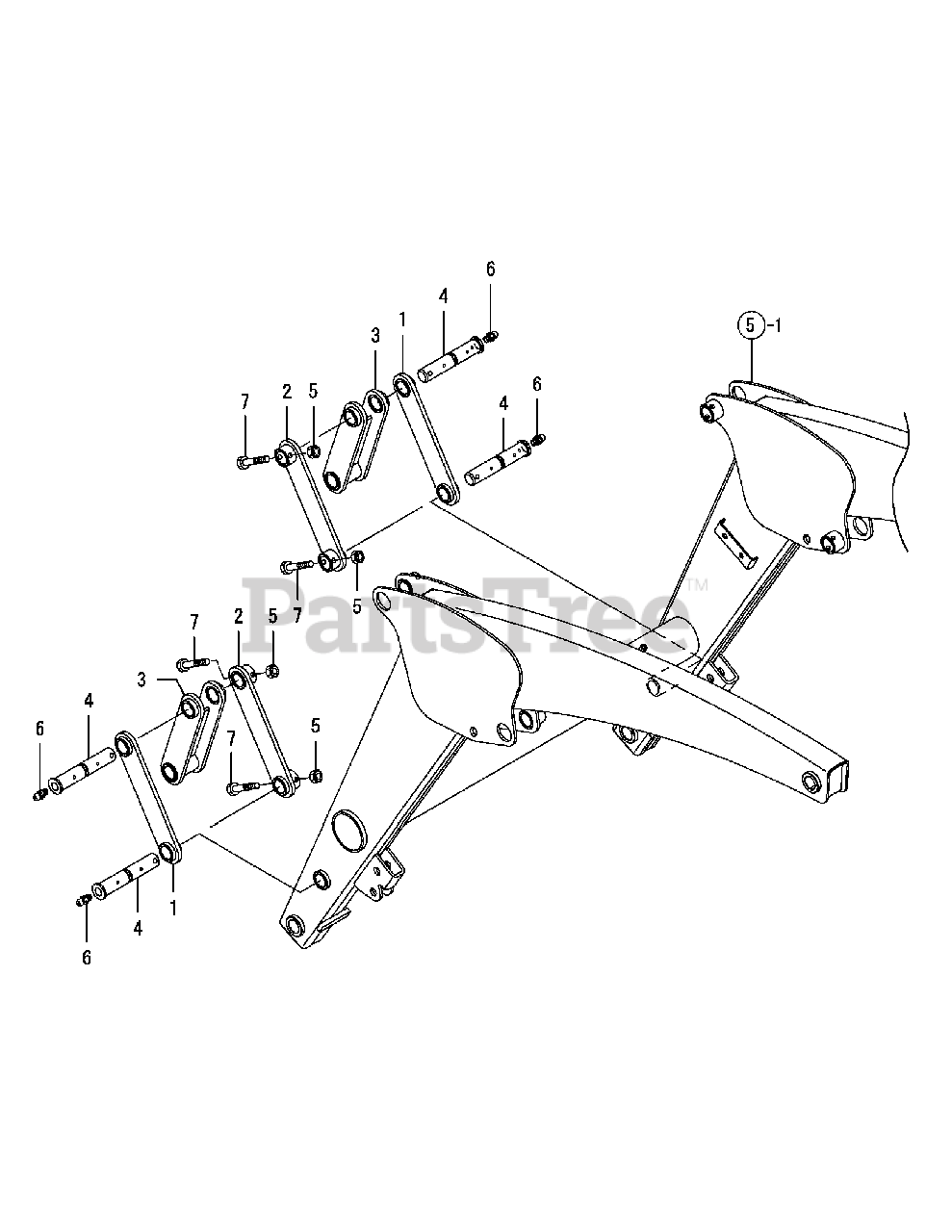

Dump Link Parts Diagram

  • Title

1

Cub Cadet CY-1TN322-25100

LINK PLATE L CMP

$

$

Not available

2

Cub Cadet CY-1TN322-25200

LINK PLATE R CMP

$

$

Not available

3

Cub Cadet CY-1TN322-25300

LINK, FRONT CMP

$

$

Not available

4

Cub Cadet CY-1TN322-73210

9/8 STEPPED PIN

$

$

Not available

5

Cub Cadet CY-26346-080002

U-NUT, 8

$

$

Not available

6

Cub Cadet CY-24761-010000

FITTING, M6F

$

$

Not available

7

Cub Cadet CY-26116-080602

BOLT, 8 X 60 PLATED

$

$

Not available

Note:5-1 Refers to LIFT ARM, Ref No. 1

$

$

Not available
