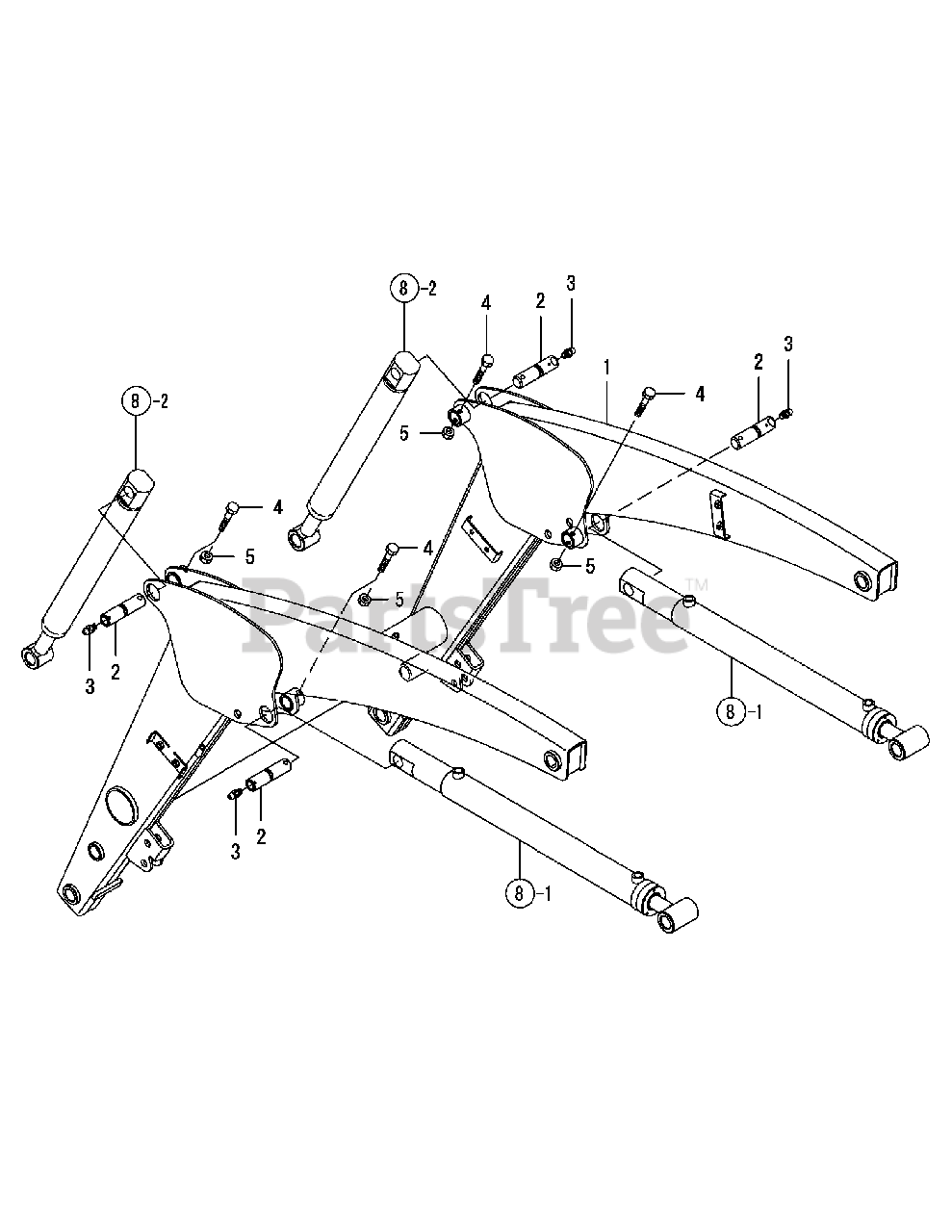

CL 400 (59A40066727) - Cub Cadet Yanmar Tractor Curved Boom Loader Attachment Lift Arm Parts Diagram

Tractor Curved Boom Loader Attachment

Lift Arm Parts Diagram

  • Title

1

Cub Cadet CY-1TN322-21000

LIFT ARM CMP

$

$

Not available

2

Cub Cadet CY-1TN322-73110

9/8-120 PIN

$

$

Not available

3

Cub Cadet CY-24761-010000

FITTING, M6F

$

$

Not available

4

Cub Cadet CY-26116-080602

BOLT, 8 X 60 PLATED

$

$

Not available

5

Cub Cadet CY-26346-080002

U-NUT, 8

$

$

Not available

Note:8-1 Refers to CYLINDER, Ref No. 1

$

$

Not available

Note:8-2 Refers to CYLINDER, Ref No. 2

$

$

Not available
