CLP 21601RV (84298) - Snapper 21" Walk-Behind Mower, 6hp HANDLES & CONTROLS Parts Diagram

21" Walk-Behind Mower, 6hp

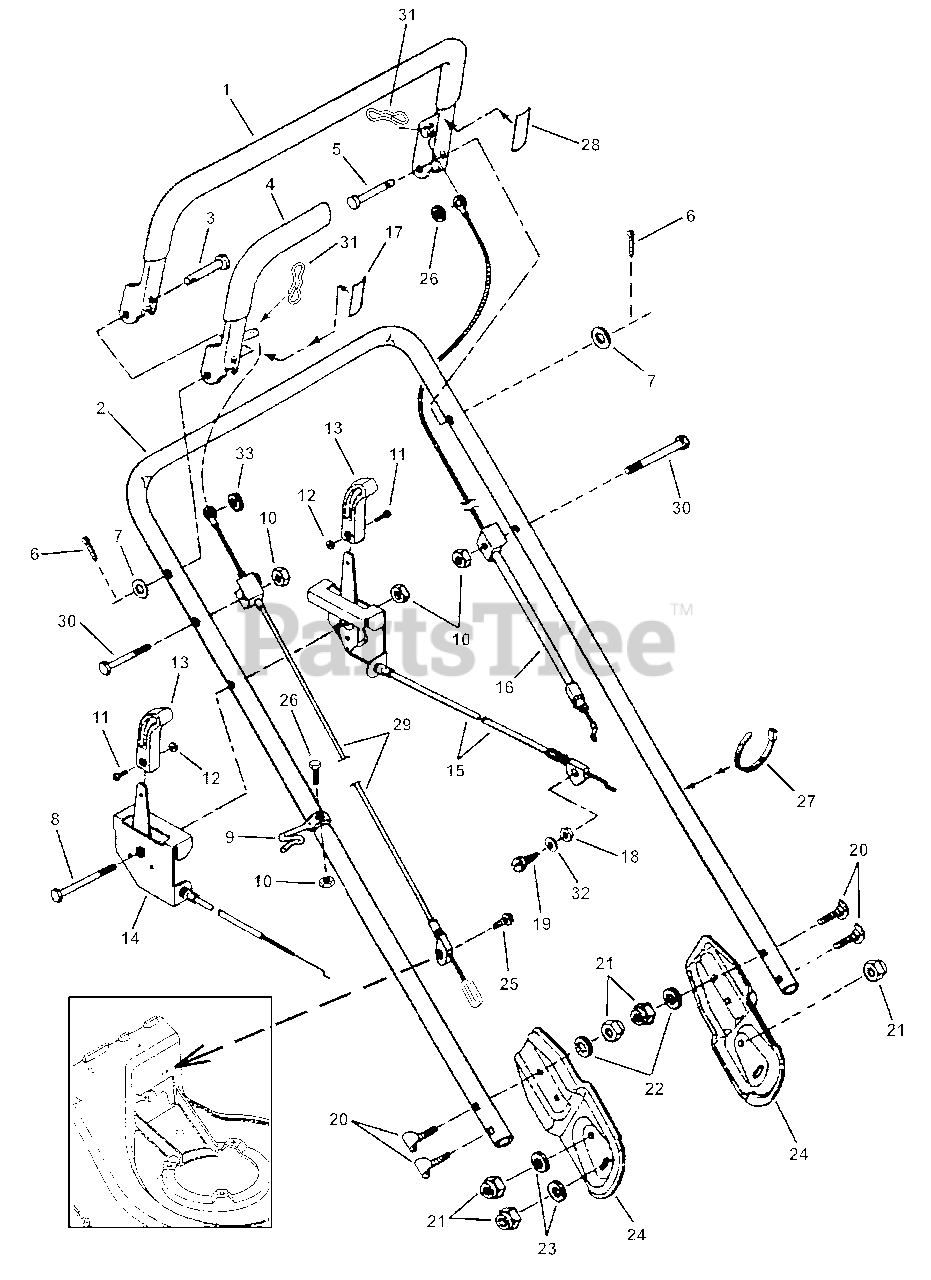

HANDLES & CONTROLS Parts Diagram

  • Title

1

Snapper 7028933

CONTROL, Blade/Engine

$

$

Not available

2

Snapper 7034786

HANDLE, Upper
(Superseded to 7034786YP)

$41.99

$

Usually ships in 2-12 days

0

3

Snapper 7029841

PIN, 5/16 X 1.75 Clevis
(Superseded to 704029)

Note: Was 91644

$4.49

$

In Stock, Qty 6

0

4

Snapper 7028815

BAIL, Traction (coated)
(Superseded to 7028815YP)

$41.99

$

Usually ships in 2-12 days

0

5

Snapper 7079831

PIN, 5/16 X 1.42 Clevis
(Superseded to 7079831YP)

Note: Was 91645

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7091597

PIN, 3/32 x 1/2" Cotter
(Superseded to 703312)

Note: Was 90555

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7091076

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7027176

SCREW, 1/4-20 x 2-1/2" Hex Head Cap, GR5
(Superseded to 703821)

Note: Was 91251

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 7022779

GUIDE, Pull Rope
(Superseded to 7022779YP)

$7.49

$

Usually ships in 2-12 days

0

10

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7091017

SCREW, #8-32 x 3/8" Fillister Head
(Superseded to 7091017YP)

$3.99

$

In Stock, Qty 5

0

12

Snapper 7091018

NUT, #8-32 Hex
(Superseded to 7091018YP)

$3.99

$

In Stock, Qty 11

0

13

Snapper 7023655

KNOB, Engine Speed Control & Ground Speed Control
(Superseded to 7023655YP)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7028887

CONTROL, Engine Speed (Robin 6HP Engine)
(Superseded to 7028887YP)

Note: ECLP21601RV

$42.99

$

Usually ships in 2-12 days

0

--

Snapper 7029083

CONTROL, Engine Speed (Honda 5-1/2HP Engine)
(Superseded to 7029083YP)

Note: ECLP21551HV

$45.99

$

Usually ships in 2-12 days

0

15

Snapper 7028886

CONTROL, Ground Speed
(Superseded to 7028886YP)

$42.99

$

Usually ships in 2-12 days

0

16

Snapper 7046524

CABLE, Blade/Engine Control (Robin Engine)

Note: ECLP21601RV

$

$

Not available

--

Snapper 7075224

CABLE, Blade/Engine Control (Honda Engine)
(Superseded to 7075224YP)

Note: ECLP21551HV

$19.99

$

Usually ships in 2-12 days

0

17

Snapper 7029432

DECAL, Ground Drive
(Superseded to 7029432YP)

$11.99

$

Usually ships in 2-12 days

0

18

Snapper 7091267

NUT, #10-24 Hex Center Lock
(Superseded to 7091267SM)

$3.99

$

In Stock, Qty 6

0

19

Snapper 7091941

SCREW, #10-24 x 3/4" Pan Head Machine
(Superseded to 7091941YP)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 7091190

BOLT, 5/16-18 x 1-1/2" Curved Head Carriage
(Superseded to 704063)

$5.49

$

In Stock, Qty 5

0

21

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 14

0

22

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 7090188

WASHER, 11/32" Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 7034848

BRACKET, Handlebar

$

$

Not available

25

Snapper 7091075

SCREW, #10-24 x 5/8" Slotted Hex Washer Head Self-Tap
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 9

0

26

Snapper 7079577

SCREW, 1/4-20 x 1-1/2" Hex Head Cap GR5
(Superseded to 703234)

$4.49

$

In Stock, only 3 left!

0

27

Snapper 7024641

TIE,Wire 1.29" Long Black
(Superseded to 7024641YP)

$5.99

$

In Stock, only 1 left!

0

28

Snapper 7029431

DECAL, Operator Presence Control
(Superseded to 7029431YP)

$6.49

$

Usually ships in 2-12 days

0

29

Snapper 7046518

CABLE, Wheel Drive Control
(Superseded to 7046518YP)

$36.99

$

Usually ships in 2-12 days

0

30

Snapper 7090505

SCREW, 1/4-20 x 2" Hex Head Cap GR5
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

31

Snapper 7073821

COTTER PIN, Bow-Tie Locking
(Superseded to 7073821YP)

$3.49

$

In Stock, Qty 17

0

32

Snapper 7091552

WASHER, 7/32" Flat
(Superseded to 7091552SM)

$3.99

$

In Stock, only 4 left!

0

33

Snapper 7091702

WASHER, 3/16" Flat
(Superseded to 7091702YP)

$3.49

$

Usually ships in 2-12 days

0
