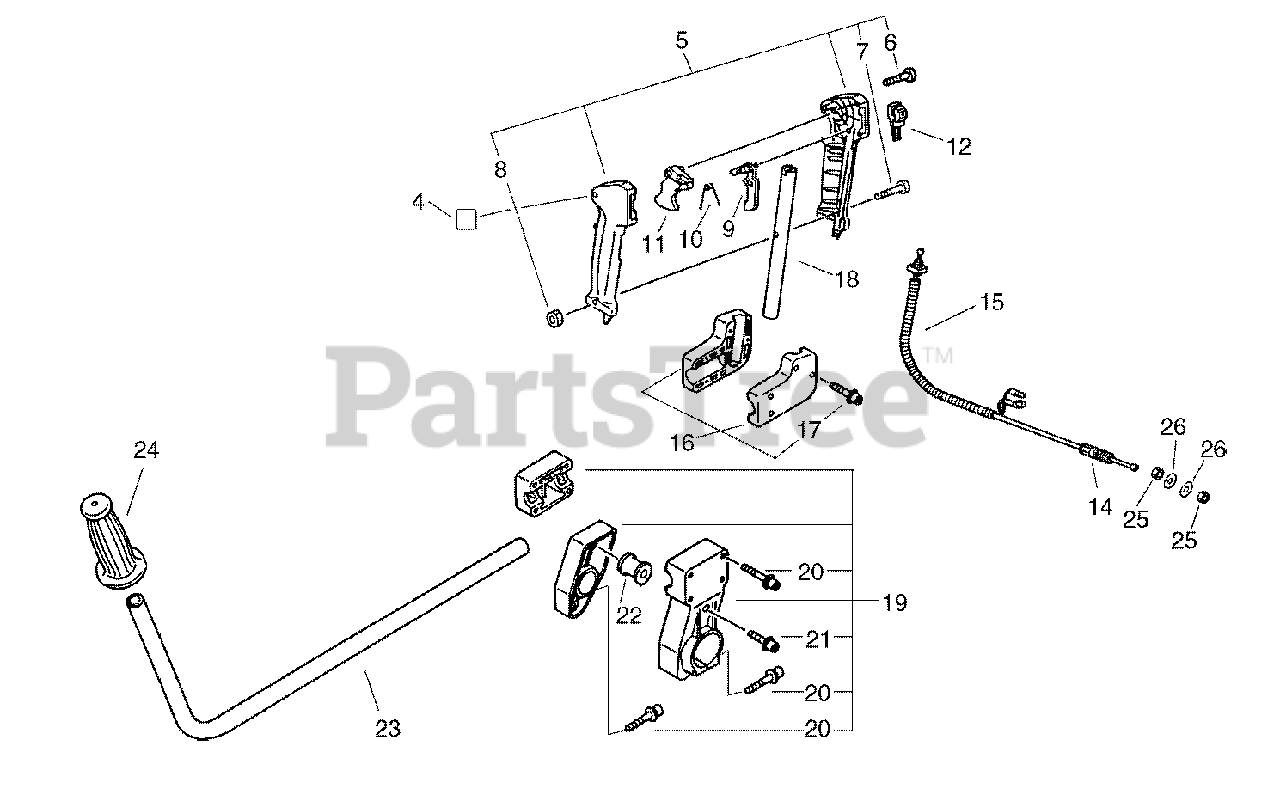

CLS-4600 - Echo Clearing Saw Handle Parts Diagram

Clearing Saw

Handle Parts Diagram

  • Title

4

Echo 890157-39130

LABEL, STOP

$

$

Not available

5

Echo 351102-47530

CONTROL HANDLE KIT

$41.99

$

In Stock, only 2 left!

0

6

Echo 900246-03025

SCREW 3×25

$0.99

$

Usually ships in 2-4 days

0

7

Echo 900220-05030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

8

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

9

Echo 178012-05960

LOCKOUT, THROTTLE

$6.99

$

In Stock, only 2 left!

0

10

Echo 178013-35631

SPRING, TORSION

$2.99

$

In Stock, Qty 5

0

11

Echo 178010-05960

TRIGGER, THROTTLE

$6.49

$

In Stock, only 2 left!

0

12

Echo 16340048030

SWITCH, ON-OFF
(Superseded to A440000310)

$12.99

$

Usually ships in 2-4 days

0

14

Echo 178001-47530

CABLE, THROTTLE

$17.99

$

Usually ships in 2-4 days

0

15

Echo 178127-47530

TUBE
(Superseded to V475000000)

$6.49

$

Usually ships in 2-4 days

0

16

Echo 35130247530

BRACKET, HANDLE
(Superseded to P021012730)

$53.99

$

Usually ships in 2-4 days

0

17

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

18

Echo 351210^7530

HANDLE, REAR

$

$

Currently unavailable

19

Echo 351301^7531

BRACKET, HANDLE

$

$

Currently unavailable

20

Echo 90016205035

BOLT M5×35

$1.99

$

In Stock, Qty 16

0

21

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

22

Echo 10091021860

CUSHION

$23.99

$

Usually ships in 2-4 days

0

23

Echo 35111047530

HANDLE, LEFT

$29.99

$

Usually ships in 2-4 days

0

23

Echo 35111054430

HANDLE, FRONT

$55.99

$

Usually ships in 2-4 days

0

24

Echo 35121347530

GRIP, HANDLE
(Superseded to 35121347531)

$15.99

$

Usually ships in 2-4 days

0

25

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

26

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0
