CLS-5000 - Echo Clearing Saw Air Cleaner, Carburetor, Muffler Parts Diagram

Clearing Saw

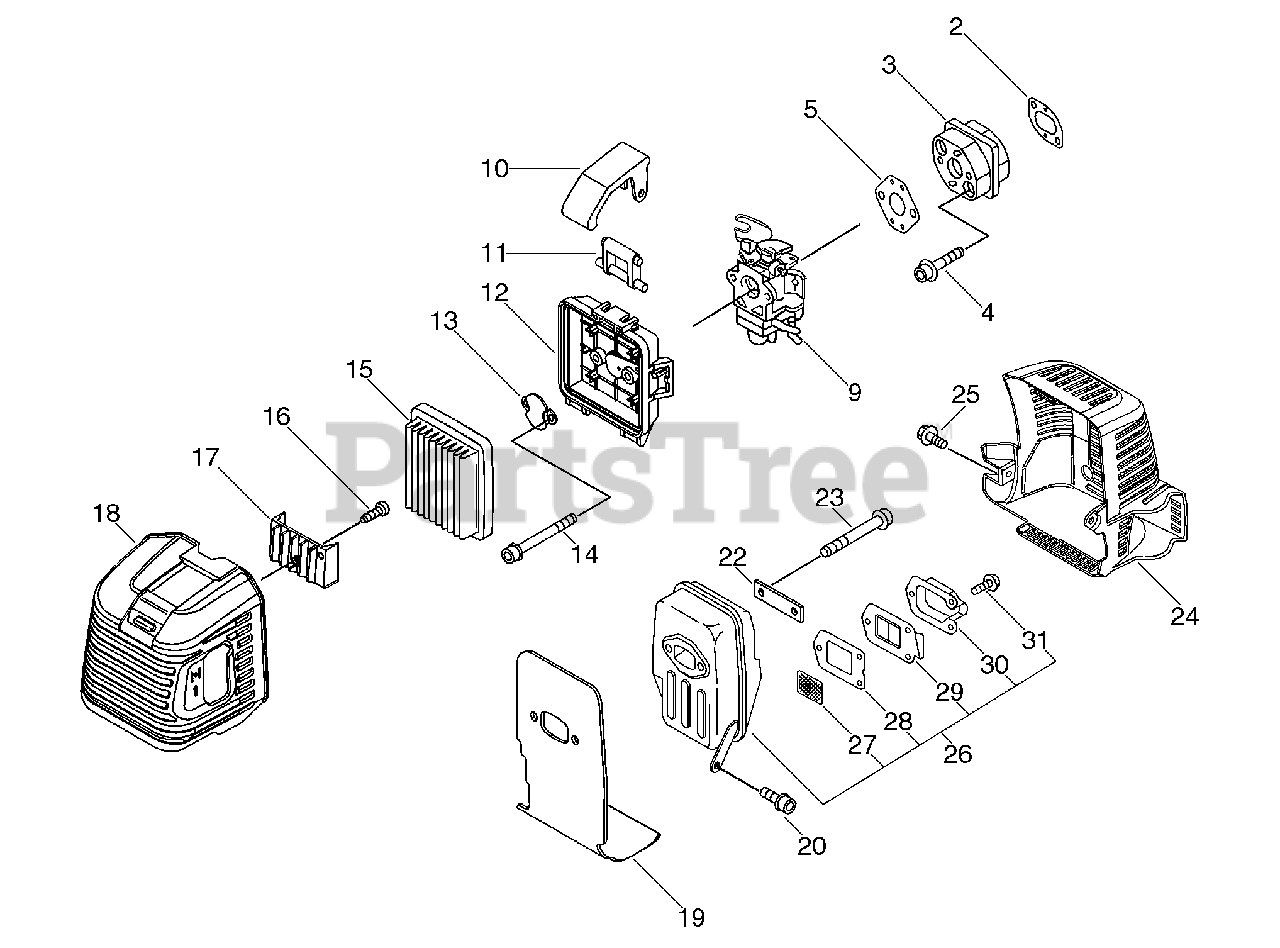

Air Cleaner, Carburetor, Muffler Parts Diagram

  • Title

2

Echo V103000070

GASKET, INTAKE

$1.99

$

Usually ships in 2-4 days

0

3

Echo A200000060

INSULATOR, INTAKE

$17.99

$

In Stock, only 2 left!

0

4

Echo 900106-05025

BOLT 5×25
(Superseded to 90010605025)

$1.49

$

In Stock, Qty 20+

0

5

Echo V103000080

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

9

Echo A021000590

CARBURETOR
(Superseded to A021000591)

$109.99

$

Usually ships in 2-4 days

0

10

Echo A235000070

LATCH, FILTER COVER

$3.99

$

Usually ships in 2-4 days

0

11

Echo J485-000030

HINGE

$11.99

$

In Stock, only 1 left!

0

12

Echo P021002491

CASE, AIR FILTER

$17.99

$

Usually ships in 2-4 days

0

13

Echo A244000010

PLATE, PREVENT

$3.49

$

In Stock, only 2 left!

0

14

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

15

Echo A226000080

FILTER, AIR
(Superseded to A226000220)

$12.99

$

In Stock, only 2 left!

0

16

Echo 90025304008

SCREW 4×8

$0.99

$

In Stock, Qty 6

0

17

Echo A323000000

PIECE, COVER

$10.99

$

Usually ships in 2-4 days

0

18

Echo A232000100

COVER, AIR FILTER
(Superseded to A232000101)

$

$

Not available

19

Echo V104000240

HEAT SHIELD, EXHAUST
(Superseded to V104000241)

$11.99

$

Usually ships in 2-4 days

0

20

Echo 90016205012

BOLT 5×12

$0.99

$

In Stock, Qty 20+

0

22

Echo V150000550

PLATE, EYE

$5.99

$

Usually ships in 2-4 days

0

23

Echo 90010506060

BOLT 6×60

$1.99

$

Usually ships in 2-4 days

0

24

Echo A320000090

COVER, EXHAUST
(Superseded to A320000091)

$15.99

$

In Stock, Qty 6

0

25

Echo 90010605012

BOLT 5×12

$1.49

$

In Stock, Qty 20+

0

26

Echo P021002870

MUFFLER ASSY
(Superseded to P021002871)

$76.99

$

Usually ships in 2-4 days

0

27

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 6

0

28

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

29

Echo A313000300

GUIDE, EXHAUST

$4.49

$

Usually ships in 2-4 days

0

30

Echo A313000290

OUTLET, EXHAUST

$8.49

$

Usually ships in 2-4 days

0

31

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0
