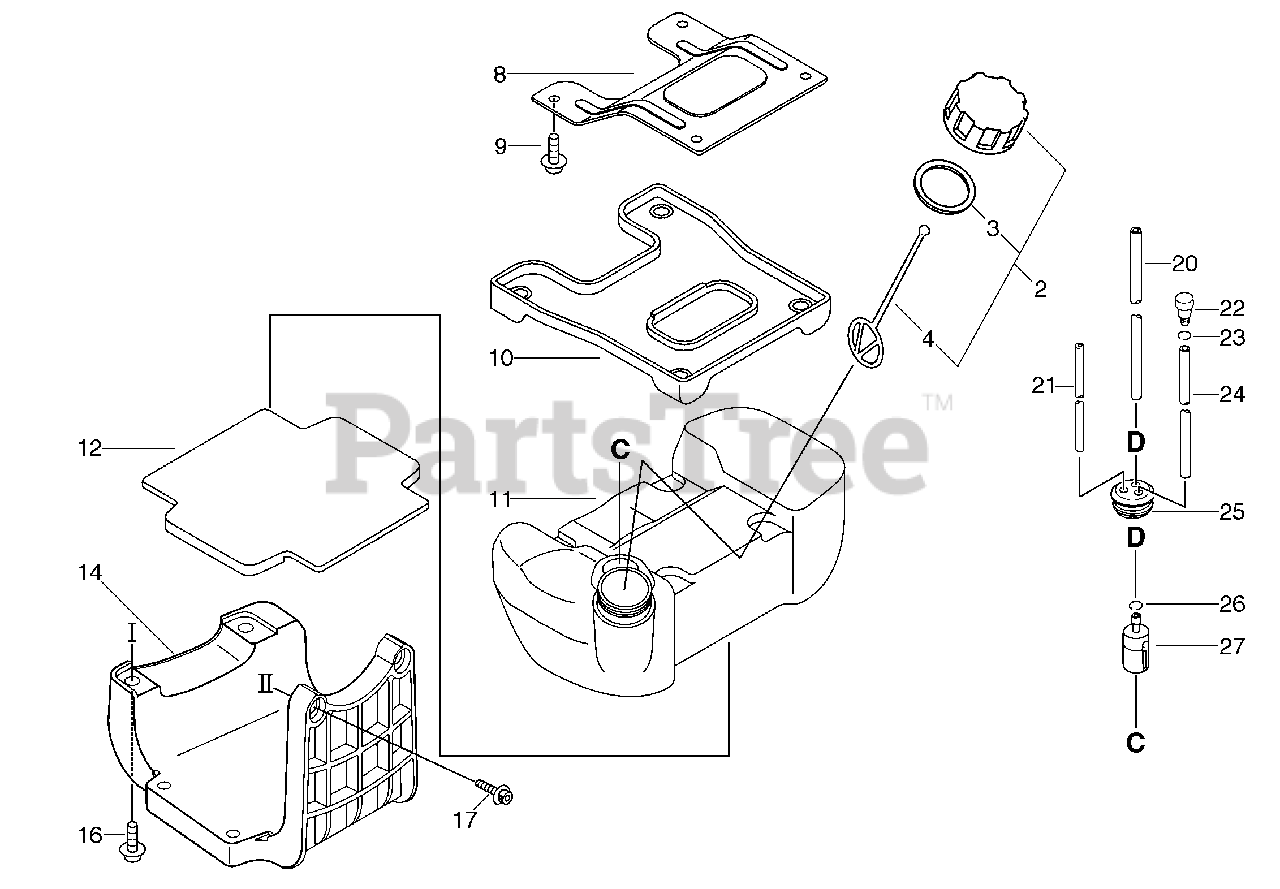

CLS-5000 - Echo Clearing Saw Fuel Tank Parts Diagram

Clearing Saw

Fuel Tank Parts Diagram

  • Title

2

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

$7.49

$

In Stock, Qty 9

0

3

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

4

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0

8

Echo A393000030

BRACKET, FUEL TANK

$11.99

$

Usually ships in 2-4 days

0

9

Echo 90010605012

BOLT 5×12

$1.49

$

In Stock, Qty 20+

0

10

Echo A390000000

CUSHION, UPPER

$13.99

$

Usually ships in 2-4 days

0

11

Echo A350000130

TANK, FUEL
(Superseded to A350000131)

$43.99

$

In Stock, only 1 left!

0

12

Echo A390000010

CUSHION, FUEL TANK

$10.99

$

Usually ships in 2-4 days

0

14

Echo A393000050

GUARD, FUEL TANK

$28.99

$

Usually ships in 2-4 days

0

16

Echo 90010605020

BOLT 5×20

$1.49

$

In Stock, only 3 left!

0

17

Echo 900106-05025

BOLT 5×25
(Superseded to 90010605025)

$1.49

$

In Stock, Qty 20+

0

20

Echo 13201053630

PIPE, FUEL 3×6×180 BLACK
(Superseded to 13201053631)

$3.49

$

In Stock, only 1 left!

0

21

Echo 43721520760

PIPE, FUEL 3×6×60 CLEAR

$2.49

$

In Stock, only 1 left!

0

22

Echo 131300-56430

VENT ASSY
(Superseded to 13130056431)

$8.99

$

In Stock, Qty 7

0

23

Echo 13201326630

CLIP 6.5 MM
(Superseded to V490001230)

$0.99

$

In Stock, Qty 20+

0

24

Echo 13201202960

PIPE, FUEL 3×6×120 BLACK
(Superseded to 13201202961)

$4.49

$

Usually ships in 2-4 days

0

25

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 18

0

26

Echo 13201326630

CLIP 6.5 MM
(Superseded to V490001230)

$0.99

$

In Stock, Qty 20+

0

27

Echo 13120519830

FILTER, FUEL
(Superseded to 13120519831)

$9.99

$

In Stock, Qty 20+

0
