CLS-5000 - Echo Clearing Saw Handle Parts Diagram

Clearing Saw

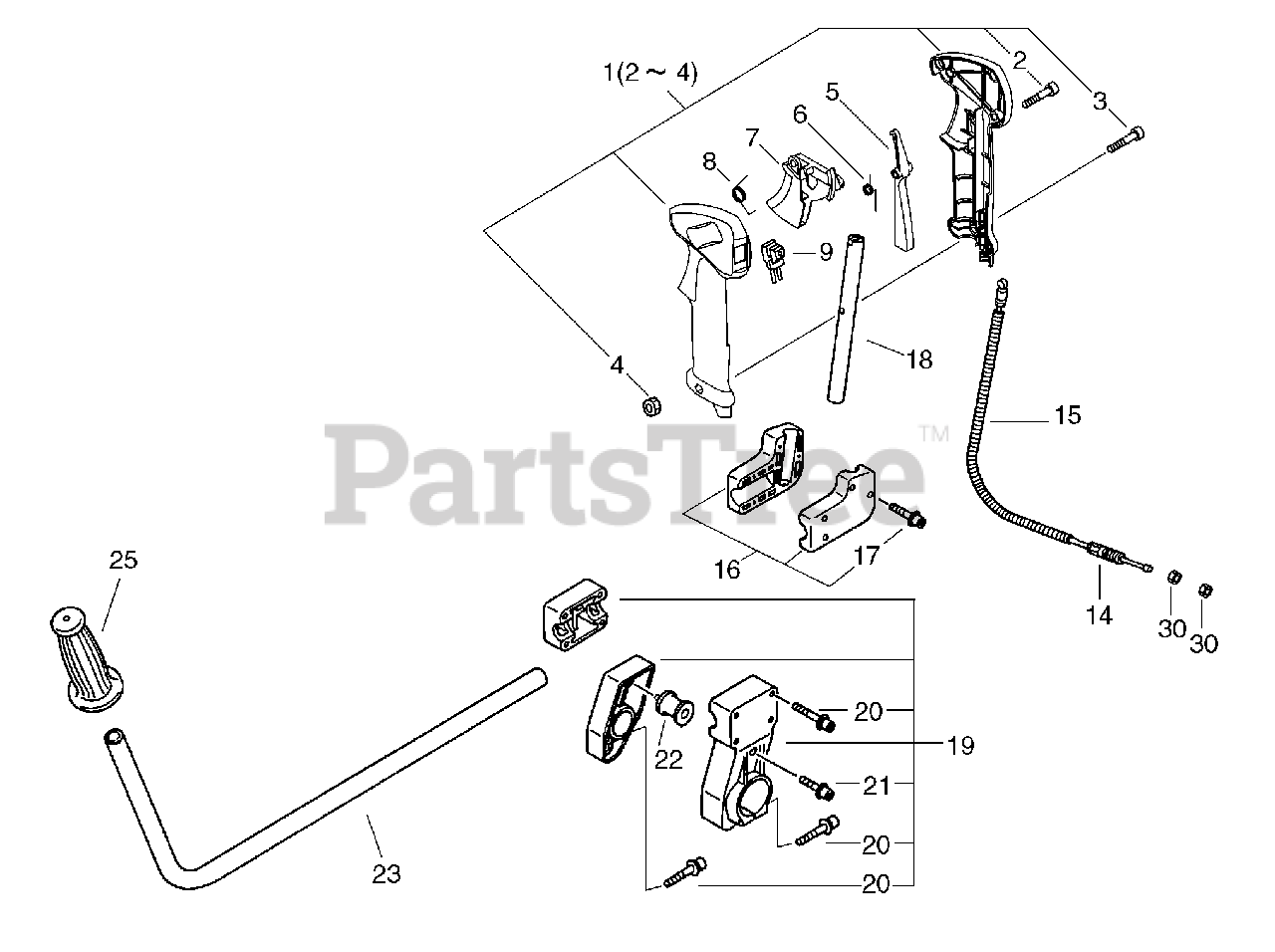

Handle Parts Diagram

  • Title

1

Echo P021002610

CONTROL HANDLE ASSY
(Superseded to P021002612)

$40.99

$

In Stock, only 2 left!

0

2

Echo 90025304016

SCREW 4×16

$0.99

$

In Stock, Qty 10

0

3

Echo 900220-05030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

4

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

5

Echo C460000010

LOCKOUT, THROTTLE
(Superseded to C460000011)

$5.99

$

In Stock, only 2 left!

0

6

Echo V452000050

SPRING, TORSION

$1.99

$

In Stock, Qty 5

0

7

Echo C450000020

TRIGGER, THROTTLE
(Superseded to C450000021)

$13.99

$

In Stock, only 2 left!

0

8

Echo V452000060

SPRING, TORSION

$1.99

$

In Stock, Qty 5

0

9

Echo A440000240

SWITCH, ON-OFF

$17.99

$

In Stock, only 2 left!

0

14

Echo V430000390

CABLE, THROTTLE
(Superseded to V430000960)

$27.99

$

Usually ships in 2-4 days

0

15

Echo 17812743230

TUBE, FLEXIBLE 7×820

$6.49

$

Usually ships in 2-4 days

0

16

Echo 35130247530

BRACKET, HANDLE
(Superseded to P021012730)

$53.99

$

Usually ships in 2-4 days

0

17

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

18

Echo 35121047530

HANDLE, REAR

$89.99

$

Usually ships in 2-4 days

0

19

Echo 351301-47531

BRACKET, HANDLE
(Superseded to Discontinued)

$

$

Not available

20

Echo 90016205035

BOLT M5×35

$1.99

$

In Stock, Qty 16

0

21

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

22

Echo 10090551530

CUSHION

$23.99

$

In Stock, only 2 left!

0

23

Echo 35132147530

HANDLE, FRONT

$42.99

$

Usually ships in 2-4 days

0

25

Echo 35121347530

GRIP, HANDLE
(Superseded to 35121347531)

$15.99

$

Usually ships in 2-4 days

0

30

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0
