CLT 23460AWS (7800541) - Snapper 46" Lawn Tractor, 23hp Engine Group - 23HP Briggs & Stratton Parts Diagram

46" Lawn Tractor, 23hp

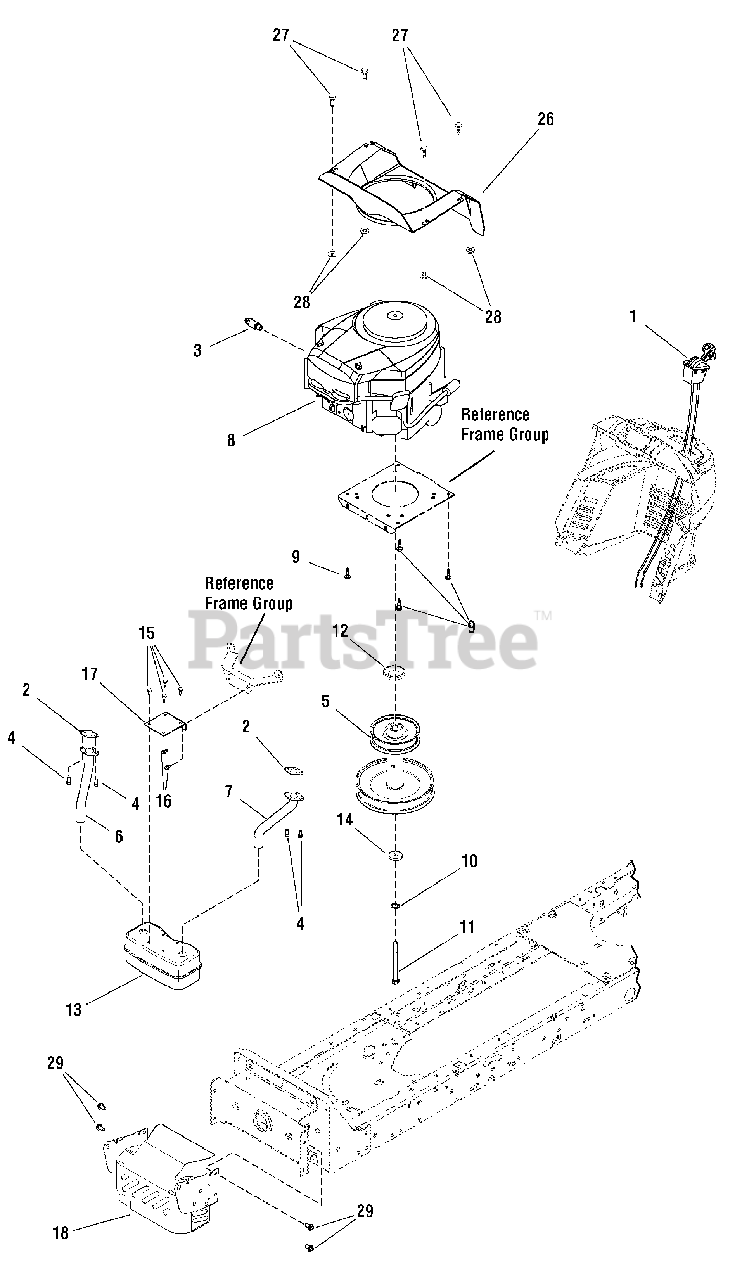

Engine Group - 23HP Briggs & Stratton Parts Diagram

  • Title

1

Snapper 1727817

CONTROL, Throttle Double
(Superseded to 1727817SM)

$115.99

$

Usually ships in 2-12 days

0

2

Snapper 1731214

GASKET, Exhaust
(Superseded to 1731214SM)

$4.99

$

Usually ships in 2-12 days

0

3

Snapper 7027972

OIL VALVE ASSEMBLY
(Superseded to 7027972SM)

$24.99

$

In Stock, only 1 left!

0

4

Snapper 7091738

CAPSCREW, 5/16-18 x 3/4
(Superseded to 7091738SM)

$4.99

$

In Stock, Qty 16

0

5

Snapper 7101524

STACK PULLEY ASSEMBLY
(Superseded to 7101524YP)

$102.99

$

Usually ships in 2-12 days

0

6

Snapper 7102402

TUBE, Exhaust, Right
(Superseded to 7102402YP)

$23.99

$

Usually ships in 2-12 days

0

7

Snapper 7102403

TUBE, Exhaust, Left
(Superseded to 7102403YP)

$23.99

$

Usually ships in 2-12 days

0

8

Snapper 44L777-0130-G1

* Engine, 23HP B&S Mod. 44L777-0130-G1

$

$

Not available

9

Snapper 720045

SCREW, Self Tap, 3/8-16 x 1-1/4
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

10

Snapper 720183

WASHER, Star
(Superseded to 019X35MA)

$4.99

$

In Stock, only 2 left!

0

11

Snapper 720205

BOLT, Hex 7/16-20 x 1-1/2
(Superseded to 01X140MA)

$5.49

$

In Stock, only 1 left!

0

12

Snapper 721153

SPACER, Engine
(Superseded to 093077MA)

$15.99

$

In Stock, only 1 left!

0

13

Snapper 722180

MUFFLER, Twin

$

$

Currently unavailable

14

Snapper 722605

WASHER, Flat, 1
(Superseded to 17X170MA)

$

$

Not available

15

Snapper 722851

BOLT, 1/4-14 x 3/8
(Superseded to 26X229MA)

$4.49

$

In Stock, only 1 left!

0

16

Snapper 722866

SCREW, Hex, 1/4-20 x 5/8
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

17

Snapper 7300760BM

BRACKET, Muffler
(Superseded to 7300760BMYP)

$18.99

$

Usually ships in 2-12 days

0

18

Snapper 7500533

HEAT SHIELD

$

$

Currently unavailable

26

Snapper 7102326

AIR DUCT, Plenum
(Superseded to 7102326YP)

$131.99

$

In Stock, only 1 left!

0

27

Snapper 1960295

SCREW, Hex Flange, 1/4-20 x 5/8
(Superseded to 1960295SM)

$4.49

$

In Stock, only 3 left!

0

28

Snapper 1930641

NUT, Hex Flange, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

29

Snapper 720664

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 06X104MA)

$4.49

$

Usually ships in 2-12 days

0
