CLT 42 H (13A879KS897) - Columbia 42" Lawn Tractor (2016) Hood & Grille Parts Diagram

42" Lawn Tractor

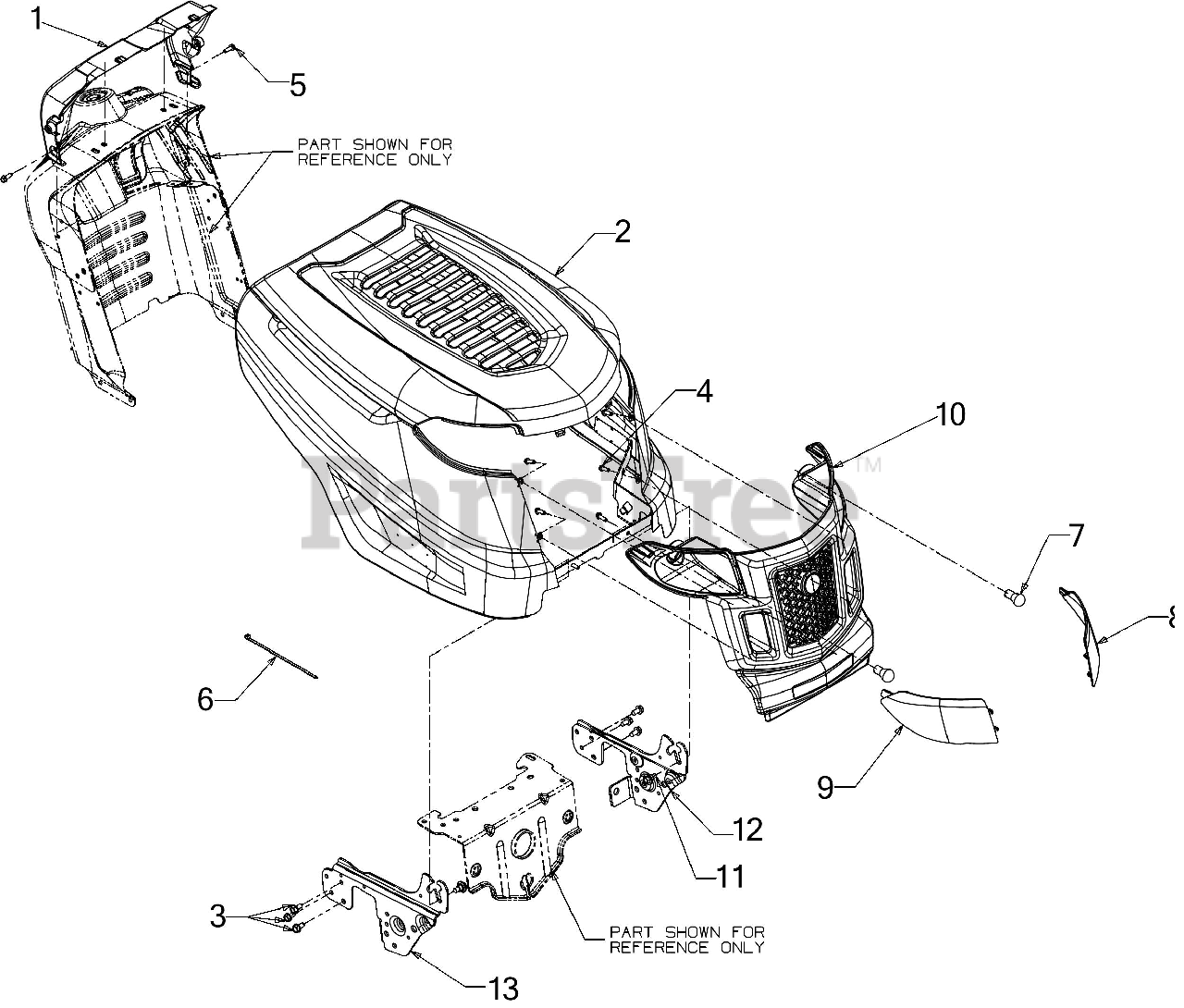

Hood & Grille Parts Diagram

  • Title

1

MTD 710-04261

HEX SCREW #12-16 x .50

Note: (Not Shown)

$6.99

$

Usually ships in 3-6 days

0

1

MTD 731-05078C

DASH COLLAR

$19.99

$

In Stock, only 2 left!

0

1

MTD 731-06404

BUMPER

Note: (Not Shown)

$9.99

$

In Stock, only 1 left!

0

2

MTD 683-04441A-0662

HOOD ASSEMBLY (K STYLE)

$351.99

$

Usually ships in 3-6 days

0

2

MTD 783-06302-0691

HOOD (TOP ONLY)

Note: (Not Shown)

$106.99

$

Usually ships in 3-6 days

0

3

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-05108

SCREW 1/4 x .750

$3.99

$

In Stock, Qty 7

0

5

MTD 710-0895

SCREW 1/4-15 x .750

$6.99

$

In Stock, Qty 20+

0

6

MTD 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

7

MTD 925-0963

MINIATUURE BULB 12V

$7.99

$

In Stock, Qty 20+

0

8

MTD 731-06095

LENS (LH)

$13.99

$

In Stock, Qty 5

0

9

MTD 731-06096

LENS (RH)

$12.99

$

In Stock, only 2 left!

0

10

MTD 931-06796A

GRILLE (K STYLE)

$76.99

$

Usually ships in 3-6 days

0

11

MTD 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$4.49

$

In Stock, Qty 20+

0

12

MTD 783-05327B-0606

SUPPORT BRACKET (LH)
(Superseded to 783-05327B-0637)

$42.99

$

Usually ships in 3-6 days

0

13

MTD 783-05328B-0606

SUPPORT BRACKET (RH)
(Superseded to 783-05328B-0637)

$45.99

$

In Stock, only 2 left!

0
