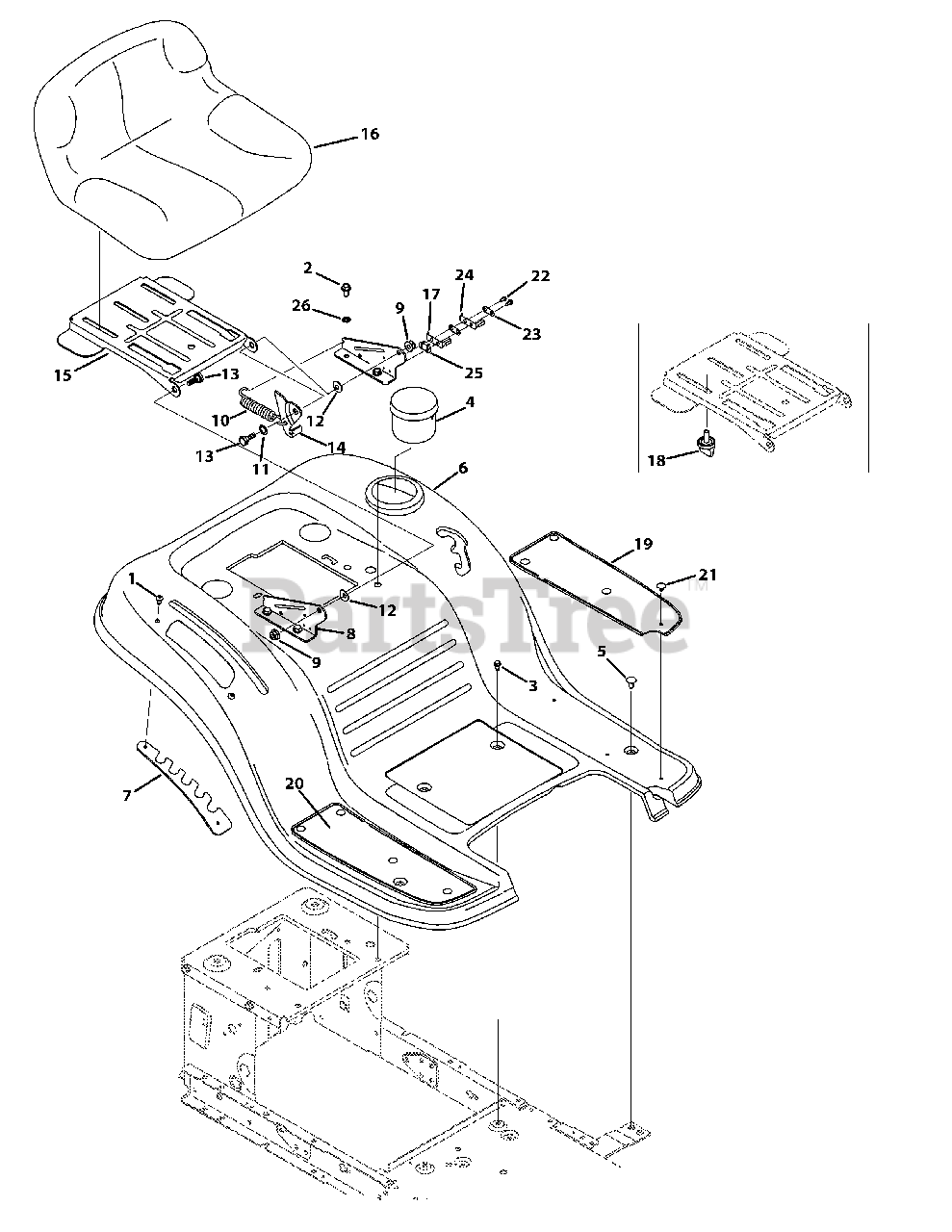

CLT 46 CVT (13A878KT897) - Columbia 46" Lawn Tractor (2015) Seat and Fender Parts Diagram

46" Lawn Tractor

Seat and Fender Parts Diagram

  • Title

1

MTD 710-05070A

Screw, 1/4-20 x .500

$7.49

$

In Stock, only 2 left!

0

2

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0599

Screw Pan Torx Head, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

4

MTD 731-04591A

Cup Holder

$16.99

$

In Stock, only 2 left!

0

5

MTD 710-0134

Screw Carriage, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

6

MTD 783-04587D-0606

Fender - Orange
(Superseded to 783-04587E-0606)

$446.99

$

Usually ships in 3-6 days

0

7

MTD 783-04843-0606

Lift Adjuster Bracket - Powder Black

$36.99

$

Usually ships in 3-6 days

0

8

MTD 783-1489D-0606

Seat Mount Bracket - Powder Black
(Superseded to 783-1489D-0637)

$24.99

$

In Stock, only 2 left!

0

9

MTD 712-04063

Flangelock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

10

MTD 732-1184

Extension Spring

$11.99

$

In Stock, Qty 8

0

11

MTD 936-0108

Flat Washer, .510x .750 x .033

$7.49

$

In Stock, only 2 left!

0

12

MTD 736-0242

Bell Washer, .340 x .872 x .060

$4.99

$

In Stock, Qty 20+

0

13

MTD 938-0296

Shoulder Screw, 5/16-18 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

14

MTD 783-0209D

Lift Seat Bracket

$17.99

$

In Stock, only 4 left!

0

15

MTD 783-04081D-0606

Pivot Seat Manual Adjust Bracket
(Superseded to 783-04081D-0637)

$43.99

$

In Stock, only 3 left!

0

16

MTD 757-04083A

Med. Back Seat, Black
(Superseded to 757-05229)

$245.99

$

Usually ships in 3-6 days

0

17

MTD 725-1439

Inner Seat Spring

$8.99

$

In Stock, Qty 6

0

18

MTD 720-04061

Knob, 3/8-16 x .875

$5.99

$

In Stock, Qty 14

0

19

MTD 735-04047

Foot Pad, LH

$20.99

$

In Stock, only 2 left!

0

20

MTD 735-04048

Foot Pad, RH

$20.99

$

In Stock, only 3 left!

0

21

MTD 726-3046

Ratchet Clip, .250 x .500

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0227

Screw, 8-18 x .500

$4.49

$

In Stock, Qty 20+

0

23

MTD 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 6

0

24

MTD 925-1308A

Outer Seat SPring

$

$

Not available
