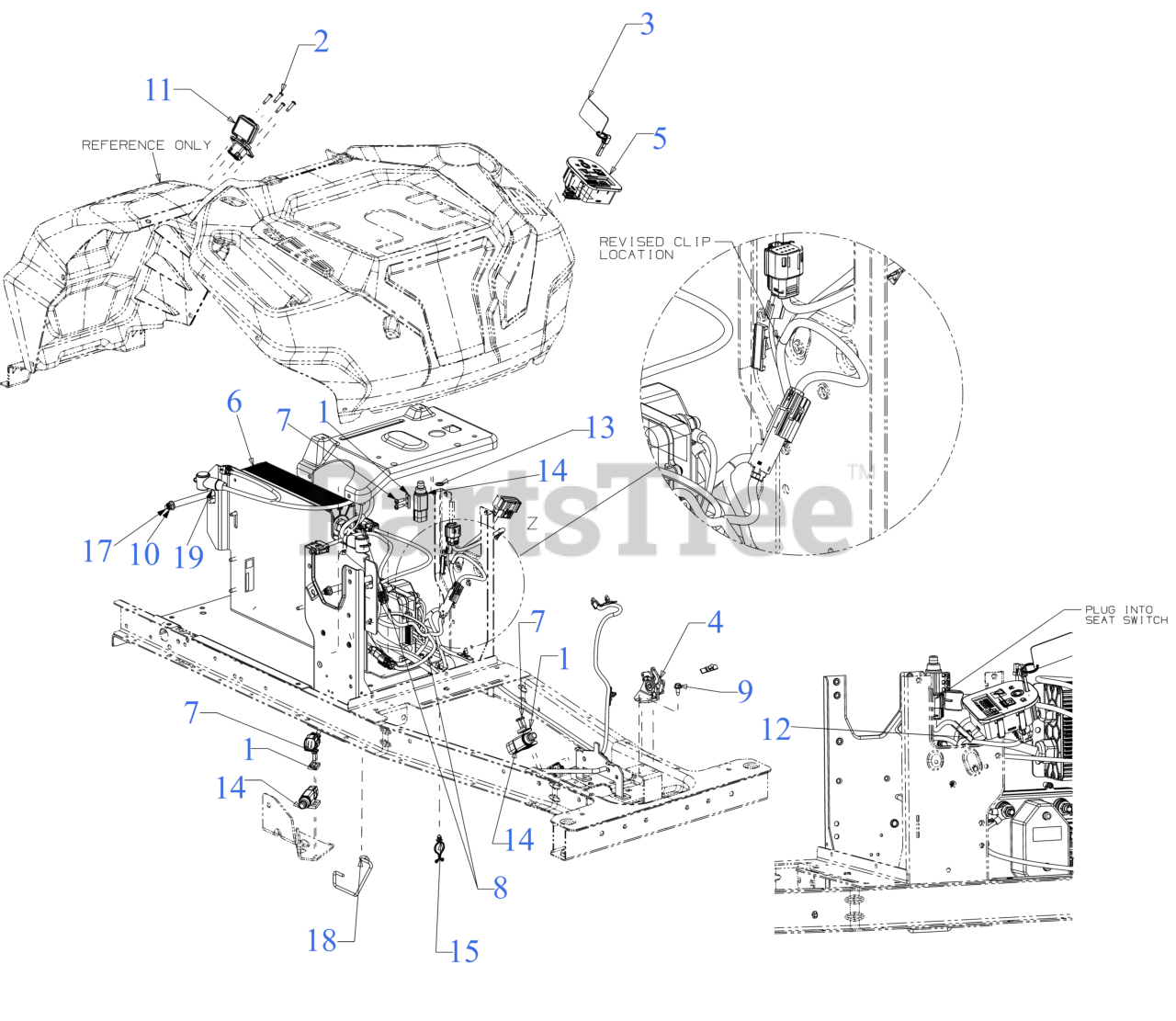

CMCRM233301 (33AA27JDB93) - Craftsman 30" Rear-Engine Riding Mower, Electric (2023) Electrical Parts Diagram

30" Rear-Engine Riding Mower, Electric

Electrical Parts Diagram

  • Title

1

MTD 17962

PLATE-SWITCH

$5.49

$

In Stock, Qty 12

0

2

MTD 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, Qty 20+

0

3

MTD 625-06990A

MAGNETIC KEY
(Superseded to 625-06990B)

$12.99

$

In Stock, Qty 16

0

4

MTD 625-07290

THROTTLE SENSOR ASSEMLBLY

$147.99

$

Usually ships in 3-6 days

0

4

MTD 924-04153

ROTARY SENSOR MAGNET

Note: (Not Shown)

$11.99

$

Usually ships in 3-6 days

0

4

MTD 729-0359

HARNESS CLIP

Note: (Not Shown)

$3.99

$

Usually ships in 3-6 days

0

5

MTD 625P08831A

VCM SWITCH ASSEMBLY
(Superseded to 625P09023)

$413.99

$

Usually ships in 3-6 days

0

6

MTD NSCO

Not Serviceable/ Components Only

Note: (See Separate Breakdown)

$

$

Currently unavailable

7

MTD 791-182195

SCREW #10-24X11/16 T-25

$7.49

$

In Stock, Qty 20+

0

8

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

11

MTD 725P17073A

CHARGER PORT HARNESS (8-PIN)
(Superseded to 725P17073C)

$202.99

$

Usually ships in 3-6 days

0

12

MTD 725P18120

MAIN HARNESS (VCM/SPDM)

$502.99

$

Usually ships in 3-6 days

0

13

MTD 726-0201

PUSH NUT

$7.49

$

In Stock, Qty 20+

0

14

MTD 929-05136

SEALED PLUNGER SWITCH

$45.99

$

In Stock, only 2 left!

0

15

MTD 729-07541

TWIST LOCK CLIP

$3.99

$

Usually ships in 3-6 days

0

17

MTD 747-11691A

BATTERY ROD 5/16-18

$42.99

$

Usually ships in 3-6 days

0

18

MTD 747-11715

DECK CABLE SUPPORT ROD

$6.99

$

Usually ships in 3-6 days

0

19

MTD 750-10977

SPACER .322 x .438 x 3.855

$25.99

$

Usually ships in 3-6 days

0
