CMCRM233301 (33AA27JDB93) - Craftsman 30" Rear-Engine Riding Mower, Electric (2023) Running Board Parts Diagram
30" Rear-Engine Riding Mower, Electric

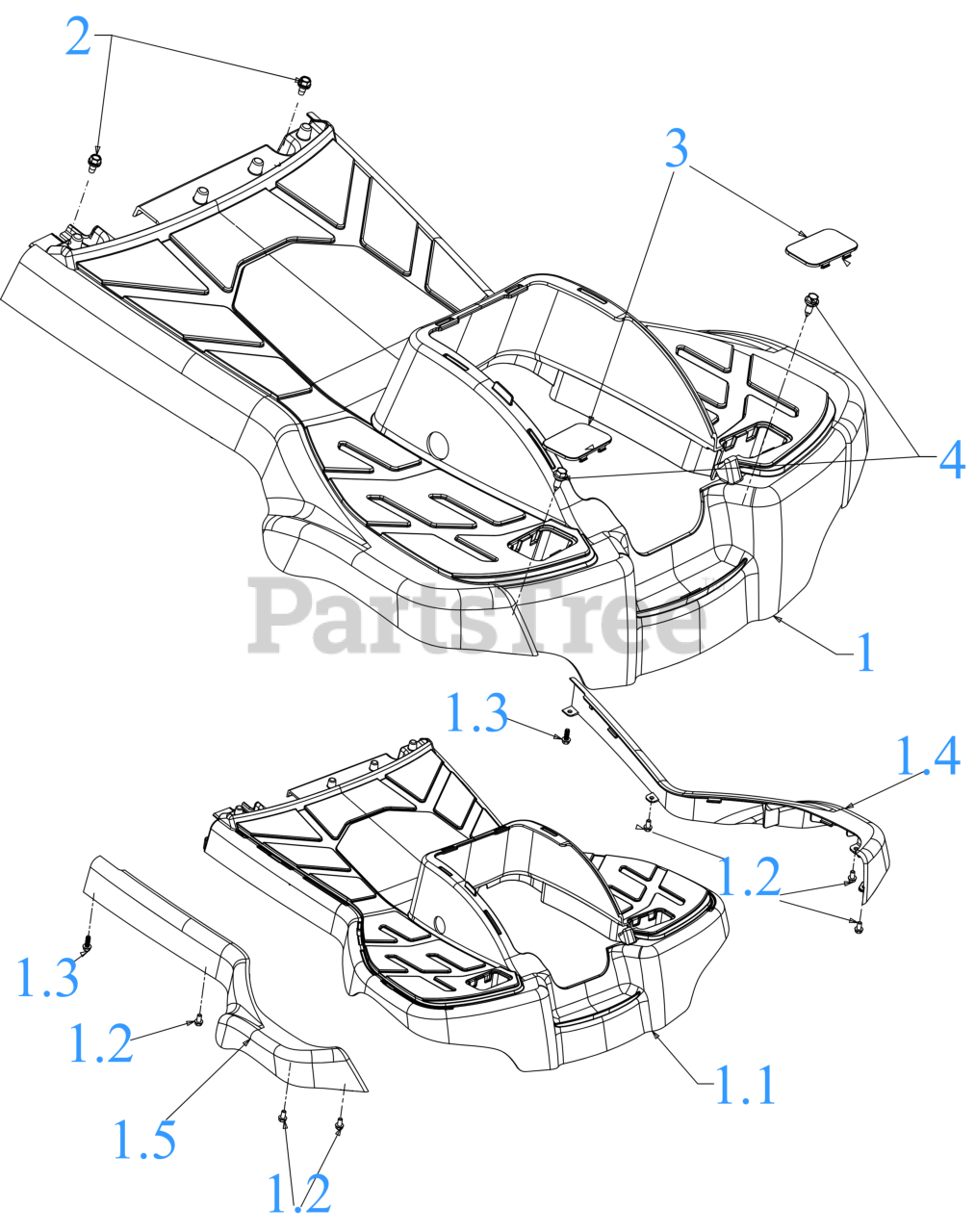

Running Board Parts Diagram
1
RUNNING BOARD ASSEMBLY
Note: Components Only
$
$
Not available
MTD 631-05662
RUNNING BOARD
$157.99
$
Usually ships in 3-6 days
MTD 710-04187A
HEX SCREW 1/4-15 x .50
$7.49
$
In Stock, Qty 20+
MTD 710-0895
SCREW 1/4-15 x .750
$6.99
$
In Stock, Qty 20+
MTD 731-17811
RUN BOARD TRIM (LH) (LIBERTY RED)
$47.99
$
Usually ships in 3-6 days
MTD 731-17812
RUN BOARD TRIM (RH) (LIBERTY RED)
$47.99
$
Usually ships in 3-6 days
MTD 710-05073
SCREW 1/4-20 x .50
$4.49
$
In Stock, Qty 20+
MTD 731-08753B
RUNNING BOARD PLUG
$4.99
$
In Stock, Qty 20+
MTD 738-04184A
SHOULDER SCREW
$7.49
$
In Stock, Qty 18
