CMCRM233303 (33ABA7PS793) - Craftsman 42" Lawn Tractor, Electric (2023) Dash Parts Diagram

42" Lawn Tractor, Electric

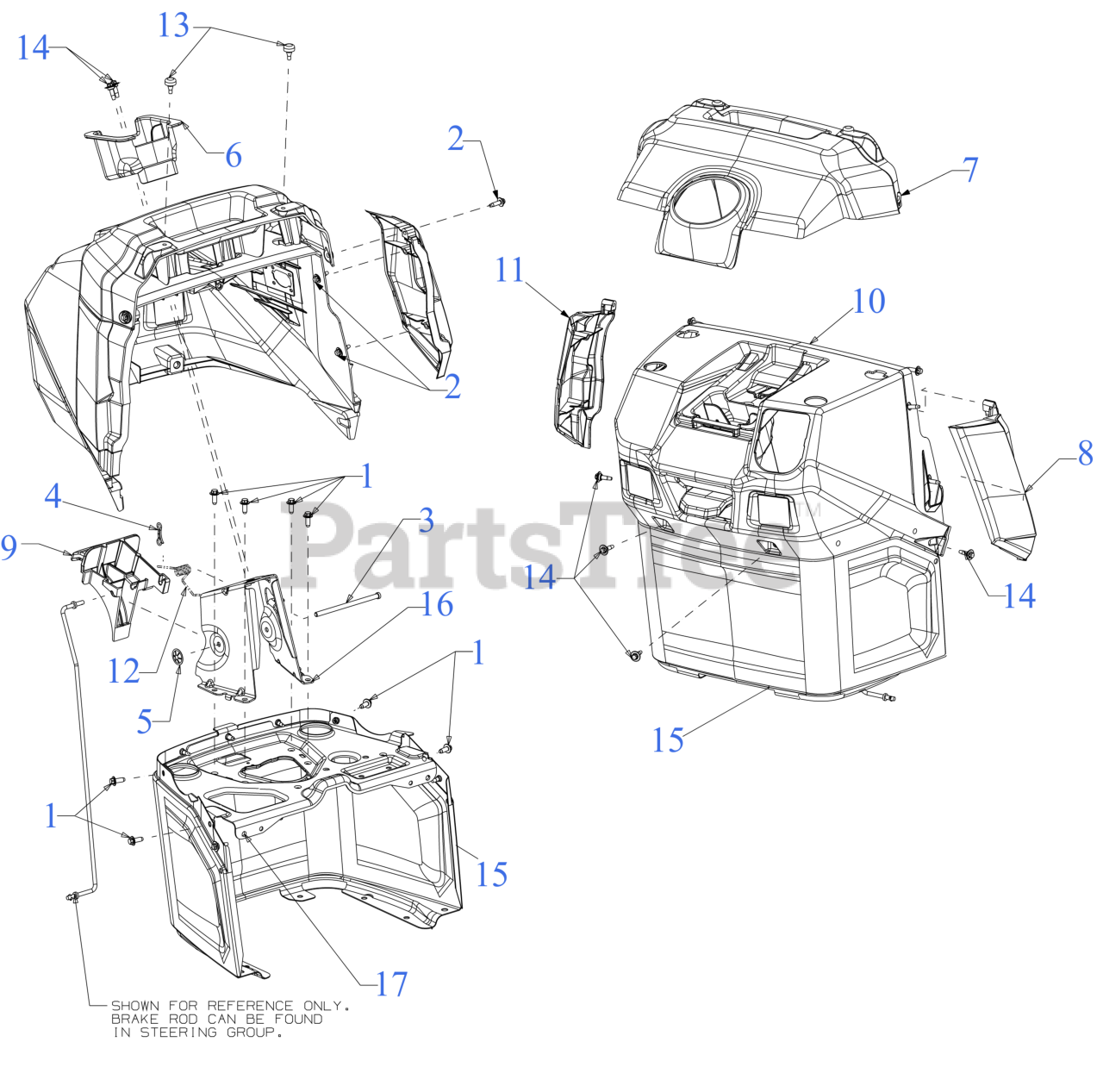

Dash Parts Diagram

  • Title

1

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-06147

SCREW 1/4-10 x .750

$3.99

$

In Stock, Qty 11

0

3

MTD 711-06378

HINGE PIN .25 x 4.50

$4.49

$

Usually ships in 3-6 days

0

4

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

5

MTD 726-04012

PUSH ON NUT

$7.49

$

In Stock, only 4 left!

0

6

MTD 731-10618

STEERING SHAFT BEARING

$15.99

$

In Stock, Qty 9

0

7

MTD 931-10973

UPPER DASH CAP (CRAFTSMAN)

$47.99

$

Usually ships in 3-6 days

0

8

MTD 731-10974

DASH SIDE CAP (RH)

$17.99

$

Usually ships in 3-6 days

0

9

MTD 731-13519

BRAKE LEVER

$7.99

$

Usually ships in 3-6 days

0

10

MTD 731P26296A

DASHBOARD (UPPER) (NO USB)

$74.99

$

Usually ships in 3-6 days

0

11

MTD 731P27094

DASHBOARD CAP (LH)

$9.99

$

Usually ships in 3-6 days

0

12

MTD 732-05199

TORSION SPRING .330 ID

$3.49

$

Usually ships in 3-6 days

0

13

MTD 735-0271A

BUMPER, .62 DIA x .3

$9.49

$

In Stock, Qty 16

0

14

MTD 738-05090

SHOULDER SCREW M6-1 .368 X.115

$3.49

$

In Stock, only 1 left!

0

15

MTD 783-08391B

LOWER DASH

Note: *CHOOSE COLOR WHEN ORDERING*

$51.99

$

Usually ships in 3-6 days

0

16

MTD 783-08538A

STEERING MOUNT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

783-08538A-0637

MTD 783-08538A-0637

Steering Bearing Mounting Bracket - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

17

MTD 783-09546B

DASH/FUEL TANK PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$23.99

$

Usually ships in 3-6 days

0
