CMCRM233303 (33ABA7PS793) - Craftsman 42" Lawn Tractor, Electric (2023) Hood Parts Diagram

42" Lawn Tractor, Electric

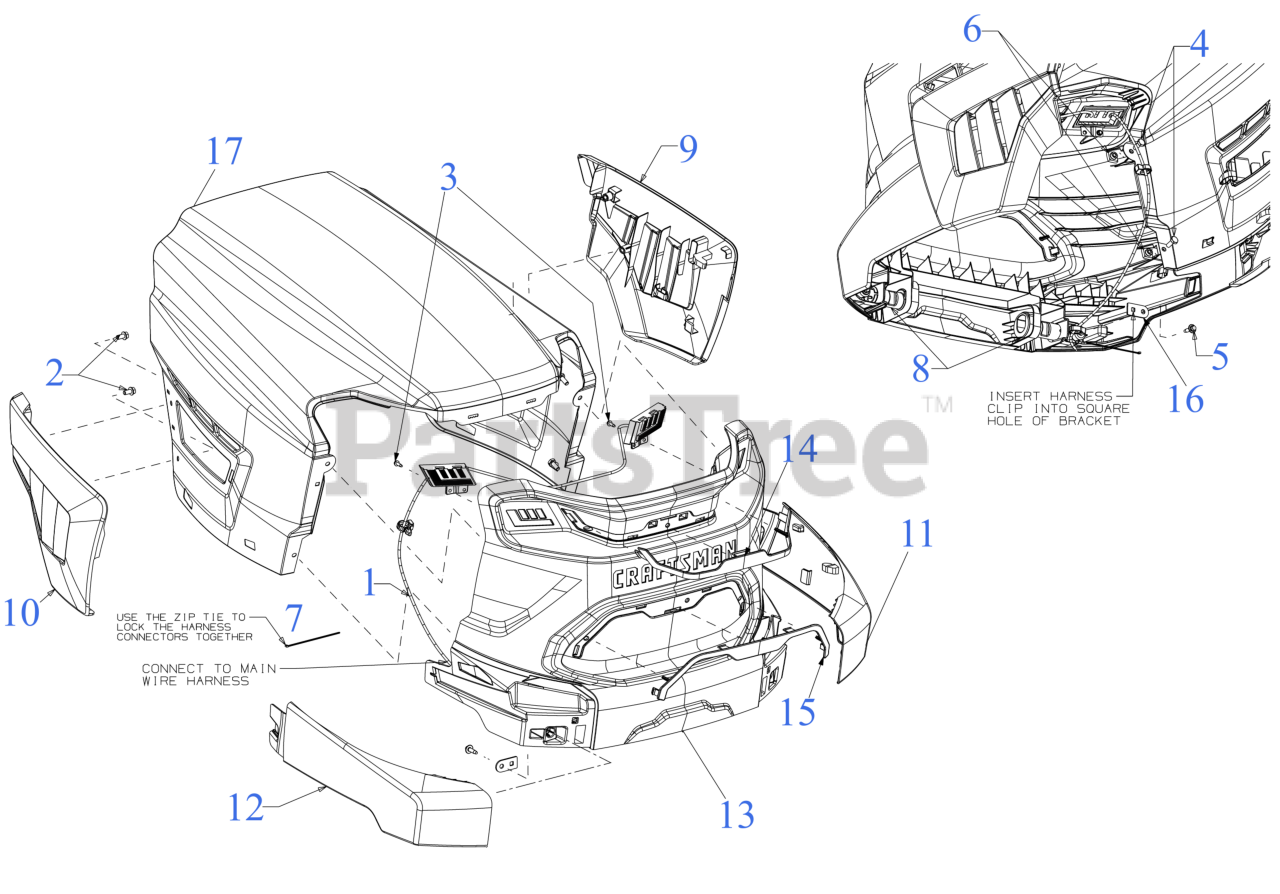

Hood Parts Diagram

  • Title

1

MTD 625P09086

HEADLIGHT HARNESS

$59.99

$

Usually ships in 3-6 days

0

2

MTD 710-04187A

HEX SCREW 1/4-15 x .50

$7.49

$

In Stock, Qty 20+

0

3

MTD 710-04326

SCREW #8-16 x .50

$4.49

$

In Stock, Qty 11

0

4

MTD 710-0433

SCREW 1/4-20 x .62 SPEC GR5

$4.99

$

In Stock, Qty 20+

0

5

MTD 710-06147

SCREW 1/4-10 x .750

$3.99

$

In Stock, Qty 11

0

6

MTD 712-05118

SQUARE NUT 1/4-20

$5.99

$

In Stock, Qty 12

0

7

MTD 726-0197

CABLE TIE

$3.99

$

In Stock, only 1 left!

0

8

MTD 731-10070A

HOOD PIVOT PIN

$6.49

$

In Stock, Qty 20+

0

9

MTD 731-10976A

HOOD SIDE COVER (LH)

$25.99

$

Usually ships in 3-6 days

0

10

MTD 731-10977A

HOOD SIDE COVER (RH)

$25.99

$

Usually ships in 3-6 days

0

11

MTD 731-17651

GRILLE PANEL (LH) (LIBERTY RED)

$30.99

$

In Stock, only 2 left!

0

12

MTD 731-17652

GRILLE PANEL (RH) (LIBERTY RED)

$30.99

$

In Stock, only 4 left!

0

13

MTD 731P27334

GRILLE

$111.99

$

Usually ships in 3-6 days

0

14

MTD 731P27343

GRILLE TRIM (TOP)

$14.99

$

Usually ships in 3-6 days

0

15

MTD 731P27344

GRILLE TRIM (BOTTOM)

$14.99

$

Usually ships in 3-6 days

0

16

MTD 783-08881

HARNESS CLIP BRACKET

$4.49

$

In Stock, Qty 12

0

17

MTD 783-13933

HOOD

Note: *CHOOSE COLOR WHEN ORDERING*

$115.99

$

Usually ships in 3-6 days

0
