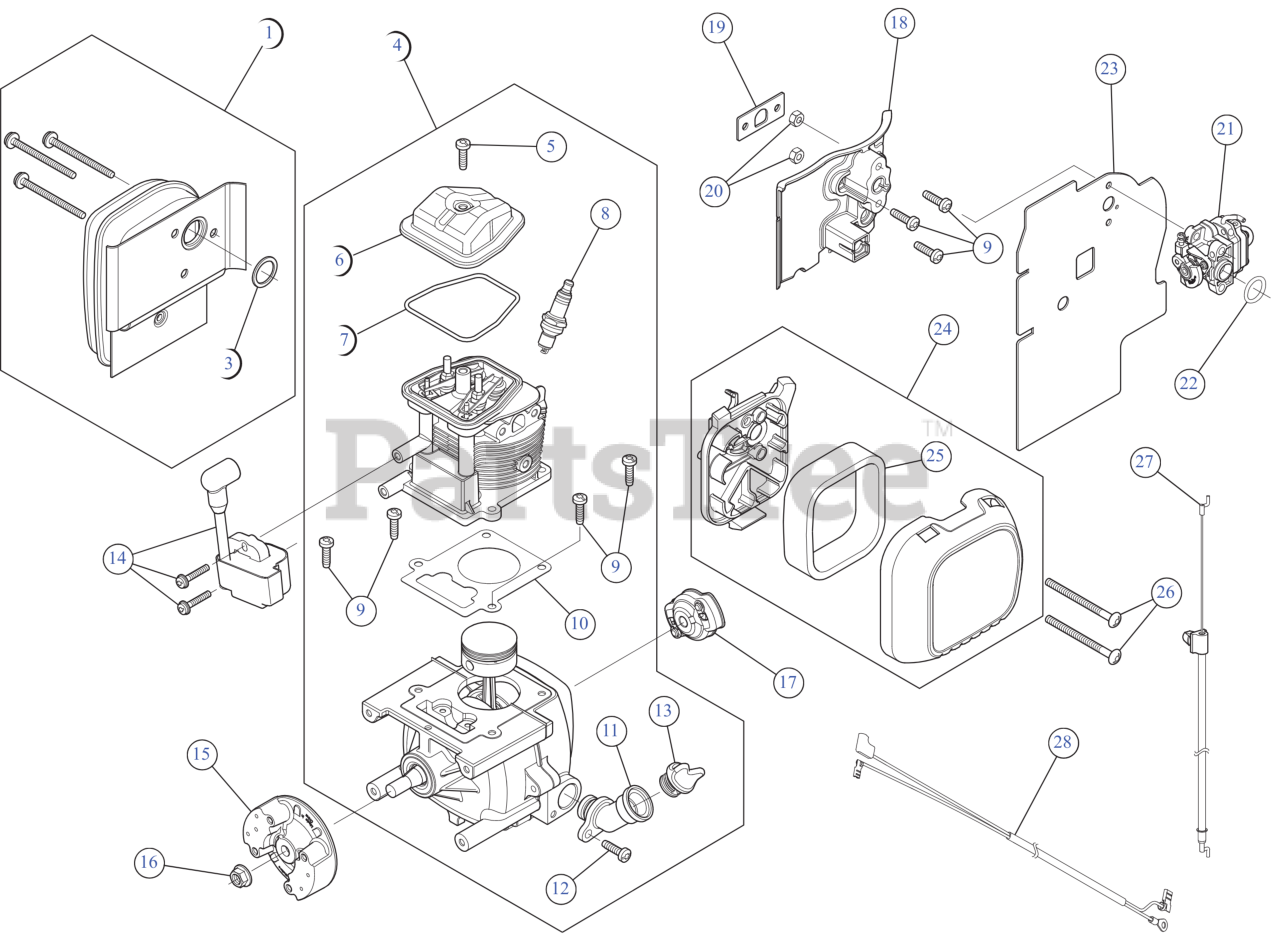

CMXGAAMR32BP (41AR32BP793) - Craftsman Backpack Blower Engine Assembly Parts Diagram

Backpack Blower

Engine Assembly Parts Diagram

  • Title

1

MTD 753-05669

MUFFLER ASSEMBLY AC4

Note: (Incl.2 & 3)

$40.99

$

Usually ships in 3-6 days

0

3

MTD 753-05670

MUFFLER GASKET

$9.99

$

Usually ships in 3-6 days

0

4

MTD 753-08026

SHORT BLOCK

Note: (Incl.5 - 13)

$136.99

$

In Stock, only 2 left!

0

5

MTD 791-181025

SCR, VALVE COVER

$2.99

$

Usually ships in 3-6 days

0

6

MTD 753-05671

ROCKER COVER AC4

$12.99

$

Usually ships in 3-6 days

0

7

MTD 753-05672

O-RING ROCKER CVR

$9.99

$

In Stock, only 2 left!

0

8

MTD 794-00082

SPARK PLUG 4 CYCL

$4.49

$

In Stock, Qty 20+

0

9

MTD 791-181003

SCREW, M5 x 18.7MM
(Superseded to 9052-1)

$

$

Not available

10

MTD 753-05681

CYLINDER GASKET

$9.49

$

Usually ships in 3-6 days

0

11

MTD 753-05682

OIL TUBE ASSEMBLY AC4

Note: (Incl.12)

$9.49

$

In Stock, only 1 left!

0

12

MTD 9054

SCR, M5 x 15.8MM

$4.49

$

In Stock, Qty 5

0

13

MTD 753-05400

OIL PLUG ASSEMBLY
(Superseded to 753-05408)

$27.99

$

In Stock, only 1 left!

0

14

MTD 753-05907

MODULE MA-95

$48.99

$

In Stock, Qty 5

0

15

MTD 753-05688

FLYWHEEL ASSEMBLY

$42.99

$

Usually ships in 3-6 days

0

16

MTD 712-04137

NUT 3/8-24

$6.49

$

In Stock, only 3 left!

0

17

MTD 753-06091

PAWL ASSEMBLY AC5

$8.49

$

In Stock, Qty 20+

0

18

MTD 753-05674

INSULATOR CARB

$14.99

$

Usually ships in 3-6 days

0

19

MTD 753-05673

INSULATOR GASKET

$9.99

$

Usually ships in 3-6 days

0

20

MTD 712-04099

NUT 10-32

$6.49

$

In Stock, only 1 left!

0

21

MTD 753-08025

CARBURETOR

$32.99

$

In Stock, only 3 left!

0

22

MTD 791-181751

O-RING

$4.49

$

In Stock, Qty 20+

0

23

MTD 753-05675

CARB GASKET AC4

$16.99

$

In Stock, only 1 left!

0

24

MTD 753-05852

AIR CLEANER ASSEMBLY

Note: (Incl.25)

$24.99

$

In Stock, Qty 5

0

25

MTD 753-05677

AIR FILTER

$4.49

$

In Stock, Qty 12

0

26

MTD 710-04517

SCREW 10-32X2.5

$4.99

$

Usually ships in 3-6 days

0

27

MTD 753-05970

THROTTLE CABLE

$15.99

$

In Stock, only 1 left!

0

28

MTD 753-05690

LEAD WIRES

$17.99

$

Usually ships in 3-6 days

0
