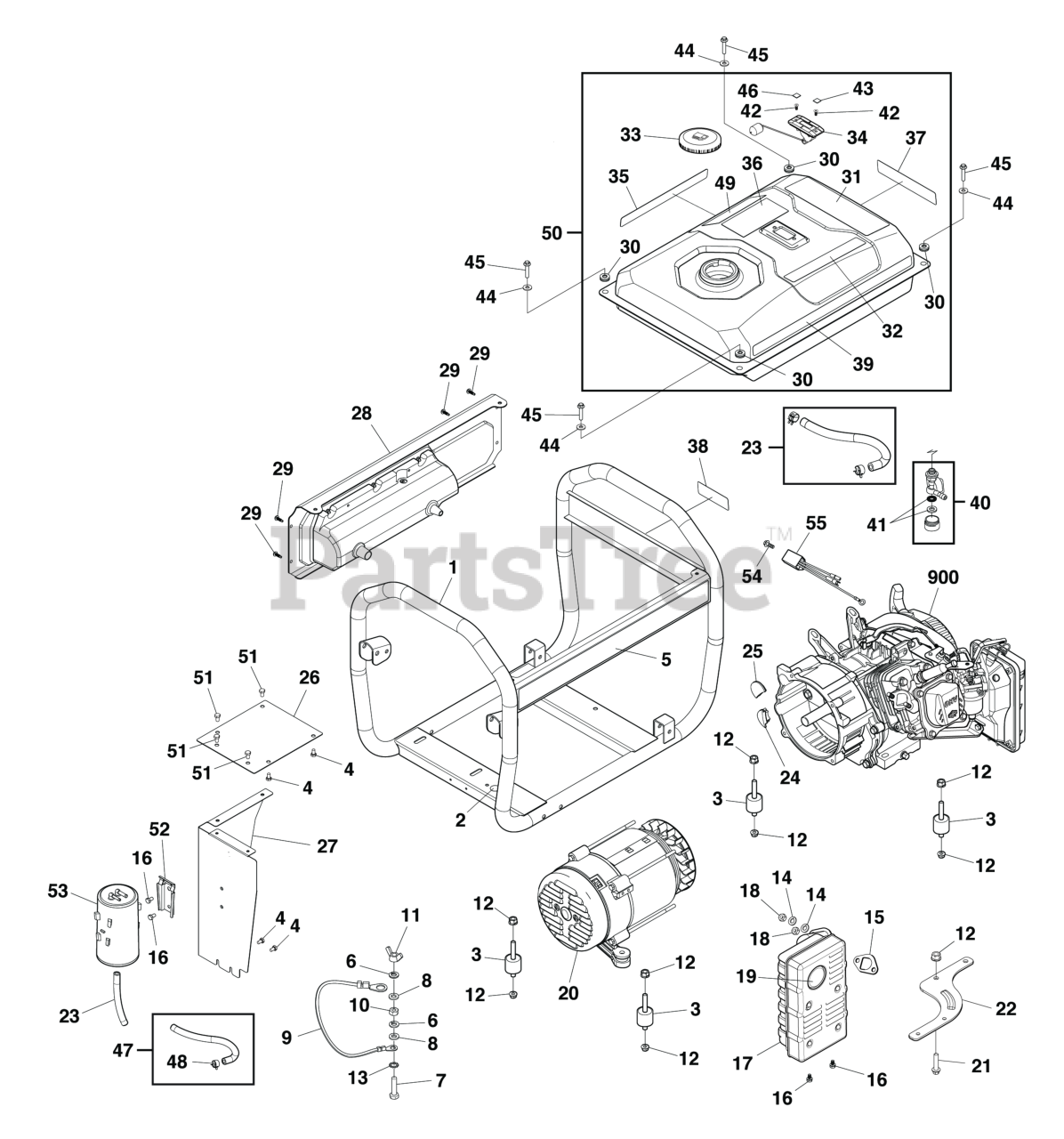

CMXGGAS030730-02 - Craftsman 3,500 Watt Portable Generator, CARB Main Unit Parts Diagram

3,500 Watt Portable Generator, CARB

Main Unit Parts Diagram

  • Title
1

Briggs & Stratton 84001094

CRADLE

Note: (Includes Items 2, 5 & 38)

$185.99

$

Usually ships in 2-12 days

0

$10.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 84001086

MOUNT-VIBRATION

$21.99

$

Usually ships in 2-12 days

0

$7.99

$

Usually ships in 2-12 days

0

$10.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22097GS

WASHER, Lock, Split, 1/4"

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 189156GS

HHCS, M6-1.0 x 25

$2.49

$

In Stock, only 1 left!

0

$1.99

$

Usually ships in 2-12 days

0

$8.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 49813GS

NUT, Hex, M6 - 1.0

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 87680GS

NUT, M6 - 1.0 Wing

$7.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 20+

0

13

Briggs & Stratton 26850GS

WASHER, Ext. M6 - 1/4" Shakeproof

$2.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 703454

LOCKWASHER, Spring, 3/8

$3.49

$

In Stock, Qty 12

0

15

Briggs & Stratton 709664

GASKET, Muffler Adapter

$11.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 706152

SCREW, M6 x 12

$4.49

$

In Stock, only 2 left!

0

$93.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 45771GS

NUT, M8 - 1.25

$6.49

$

In Stock, only 2 left!

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton REF-80076321

Refer to: Alternator Group

$

$

Currently unavailable

$2.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 709661

BRACKET-MUFFLER

$23.99

$

Usually ships in 2-12 days

0

23

$10.99

$

In Stock, only 3 left!

0

24

$4.49

$

Usually ships in 2-12 days

0

25

$3.99

$

Usually ships in 2-12 days

0

$25.99

$

Usually ships in 2-12 days

0

$64.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton REF-80076319

Refer to: Control-Panel Group

$

$

Currently unavailable

$3.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 704861

MOUNT-VIBRATION

$4.49

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

$8.99

$

Usually ships in 2-12 days

0

$24.99

$

Usually ships in 2-12 days

0

34

$17.99

$

In Stock, only 1 left!

0

$4.49

$

Usually ships in 2-12 days

0

$10.99

$

Usually ships in 2-12 days

0

$9.49

$

Usually ships in 2-12 days

0

$7.99

$

Usually ships in 2-12 days

0

$10.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 310574GS

KIT, Fuel Valve

$10.99

$

In Stock, Qty 5

0

41

Briggs & Stratton 189759GS

KIT, Fuel Valve Repair
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 5

0

$4.49

$

Usually ships in 2-12 days

0

$9.99

$

Usually ships in 2-12 days

0

$4.49

$

Usually ships in 2-12 days

0

$4.49

$

Usually ships in 2-12 days

0

$10.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 315017GS

HOSE, Vapor (cut to fit)

$28.99

$

Usually ships in 2-12 days

0

$5.49

$

Usually ships in 2-12 days

0

$9.99

$

Usually ships in 2-12 days

0

$252.99

$

Usually ships in 2-12 days

0

$4.49

$

Usually ships in 2-12 days

0

$13.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 709684

CARBON CANISTER

$81.99

$

Usually ships in 2-12 days

0

$2.49

$

Usually ships in 2-12 days

0

55

$14.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 12G032-0007-G1

ENGINE

Note: (Refer to Note:*)

$

$

Currently unavailable
