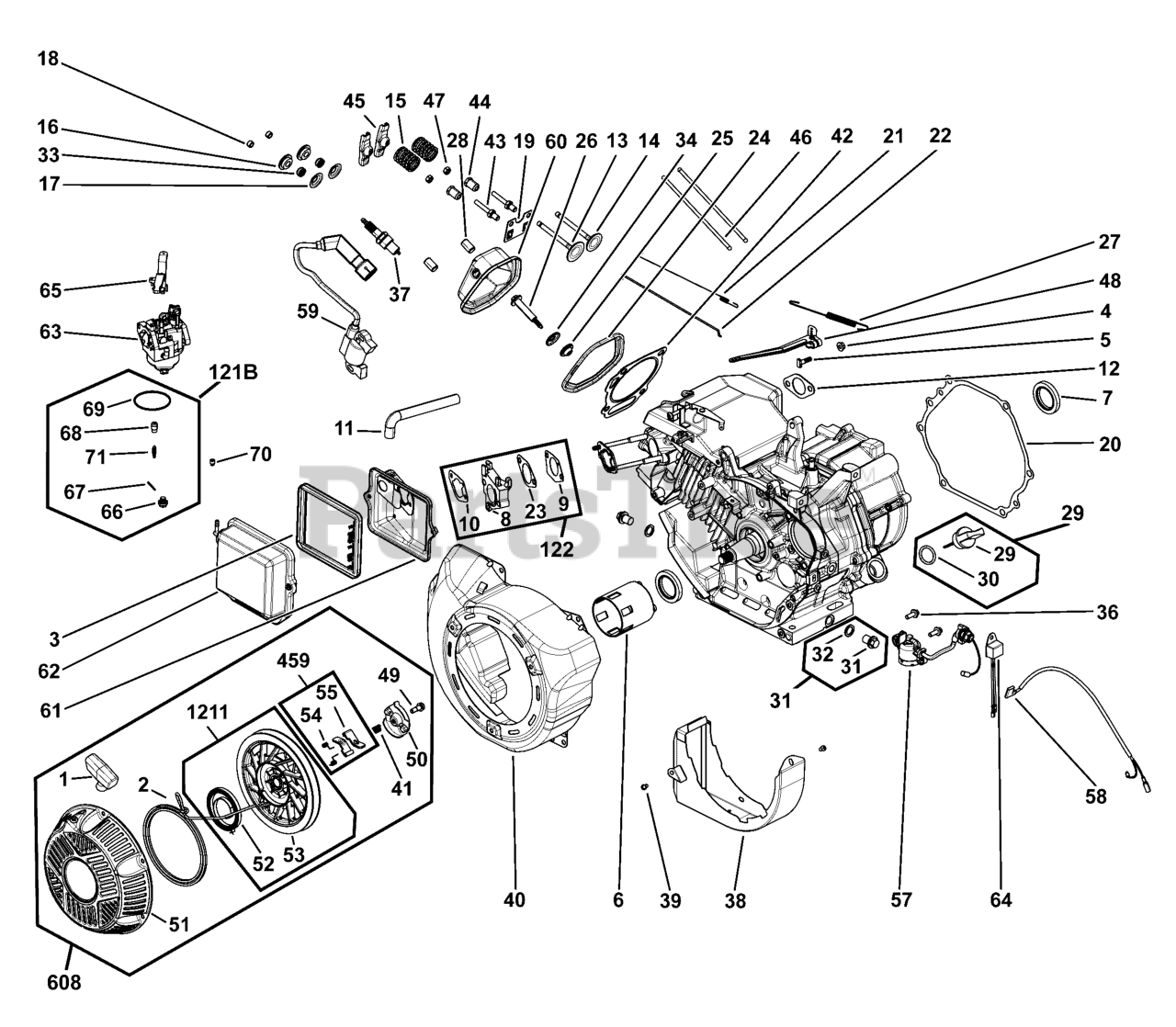

CMXGGAS030731V-00 - Craftsman 5,000 Watt Portable Generator Engine (80108465) Parts Diagram

5,000 Watt Portable Generator

Engine (80108465) Parts Diagram

  • Title

1

Briggs & Stratton 691915

GRIP, Starter Rope

$6.49

$

In Stock, Qty 12

0

2

Briggs & Stratton 693389

ROPE-STARTER

$9.49

$

In Stock, Qty 8

0

3

Briggs & Stratton 491588S

77-9010

$6.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 690939

NUT

$3.49

$

In Stock, only 2 left!

0

5

Briggs & Stratton 797230

BOLT

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 591820

CUP, Flywheel

$26.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 591793

SEAL, Oil

$12.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 591797

SPACER, Carburetor

Note: (Includes Items 8, 9, 10 & 23)

$12.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 591779

GASKET, Intake

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 797756

GASKET, Air Cleaner

$5.99

$

In Stock, Qty 10

0

11

Briggs & Stratton 592353

TUBE, Breather

$21.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 797770

GASKET, Exhaust

$6.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 592611

VALVE, Intake

$18.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 592612

VALVE, Exhaust

$26.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 591814

SPRING, Valve

$7.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 797781

RETAINER, Valve

$6.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 797782

RETAINER, Valve

$6.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 591817

CAP-VALVE

$9.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 591819

GUIDE-PUSH ROD

$20.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 592597

GASKET, Crankcase

$14.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 797809

SPRING, Governor Link

$10.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 591834

LINK, Mechanical Governor

$9.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 591779

GASKET, Intake

$4.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 797846

GASKET, Rocker Cover

$9.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 797847

WASHER, Sealing

Note: (Includes Items 25 & 34)

$7.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 797848

SCREW

$5.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 591786

SPRING, Governor

$

$

Not available

28

Briggs & Stratton 797792

PIN, Locating

$5.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 84004404

PLUG, DIPSTICK/FILL

Note: (Includes Items 29 & 30)

$7.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 797763

SEAL, O-Ring

$6.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 797793

PLUG, Oil Drain

Note: (Includes Items 31 & 32)

$5.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 797794

WASHER

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 797854

SEAL, Valve

$12.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 797847

WASHER, Sealing

$7.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 797783

KEEPER, Valve

$14.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 798975

SCREW

$3.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 798615

PLUG, Spark

$7.49

$

In Stock, Qty 8

0

38

Briggs & Stratton 592037

SHIELD, Crankcase

$70.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 798840

SCREW

$3.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 591785

HOUSING, Blower

$90.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 799669

SPRING, Friction

$6.49

$

In Stock, Qty 7

0

42

Briggs & Stratton 592834

GASKET, Cylinder Head

$14.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 591088

STUD, Rocker Arm

Note: (Includes items 43, 44 & 47)

$7.99

$

Usually ships in 2-12 days

0

44

NUT, Hex

Note: (Included in Item 43)

$

$

Not available

45

Briggs & Stratton 591087

ARM, Rocker

$20.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 799966

ROD, Push

$11.99

$

Usually ships in 2-12 days

0

47

*NUT, Lock

Note: (Included in Item 43)

$

$

Not available

48

Briggs & Stratton 799924

LEVER, Governor Control

Note: (Includes items 4, 5 & 48)

$16.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 799972

SCREW

$3.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 799973

PLATE, Pawl Friction

$8.99

$

In Stock, Qty 7

0

51

Briggs & Stratton 799974

HOUSING, Rewind Starter

$71.99

$

Usually ships in 2-12 days

0

52

SPRING, Recoil

$

$

Not available

53

PULLEY, Recoil

$

$

Not available

54

SPRING, Pawl

$

$

Not available

55

Pawl-Ratchet

$

$

Not available

57

Briggs & Stratton 797771

SENSOR, Oil

$61.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 797856

HARNESS, Wiring

$16.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 797769

ARMATURE, Magneto

$61.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 799778

COVER, Rocker

Note: (Includes Gaskets, Sealing Washer)

$37.99

$

In Stock, only 1 left!

0

61

Briggs & Stratton 799776

BASE, Air Cleaner

Note: (Includes A/C Gasket Item 10 & Fuel Connector Cap Not Illustrated)

$37.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 590958

COVER, Air Cleaner

$34.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 592595

CARBURETOR

Note: (Includes Items 9, 10 & 23)

$120.99

$

In Stock, only 1 left!

0

64

Briggs & Stratton 84004388

MODULE-OIL SENSOR

$56.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 797759

LEVER, Choke

$11.99

$

In Stock, only 2 left!

0

66

SCREW, Bowl Mounting

$

$

Not available

67

PIN, Float

$

$

Not available

68

SEAT, Inlet

$

$

Not available

69

GASKET, Float Bowl

$

$

Not available

70

Briggs & Stratton 593503

JET, Main

$17.99

$

In Stock, only 2 left!

0

71

ASSEMBLY, Needle Fuel Inlet

$

$

Not available

121B

Briggs & Stratton 593133

KIT, Carburetor Overhaul

Note: (Includes Items 9, 10, 23, 66, 67, 68, 69 & 71)

$37.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 591797

SPACER, Carburetor

Note: (Includes Items 8, 9, 10 & 23)

$12.99

$

Usually ships in 2-12 days

0

459

Briggs & Stratton 799976

PAWL, Ratchet

$7.49

$

In Stock, Qty 9

0

608

Briggs & Stratton 797747

STARTER, Rewind

$139.99

$

In Stock, only 1 left!

0

1211

Briggs & Stratton 799975

PULLEY/SPRING ASSEMBLY

$30.99

$

In Stock, only 2 left!
