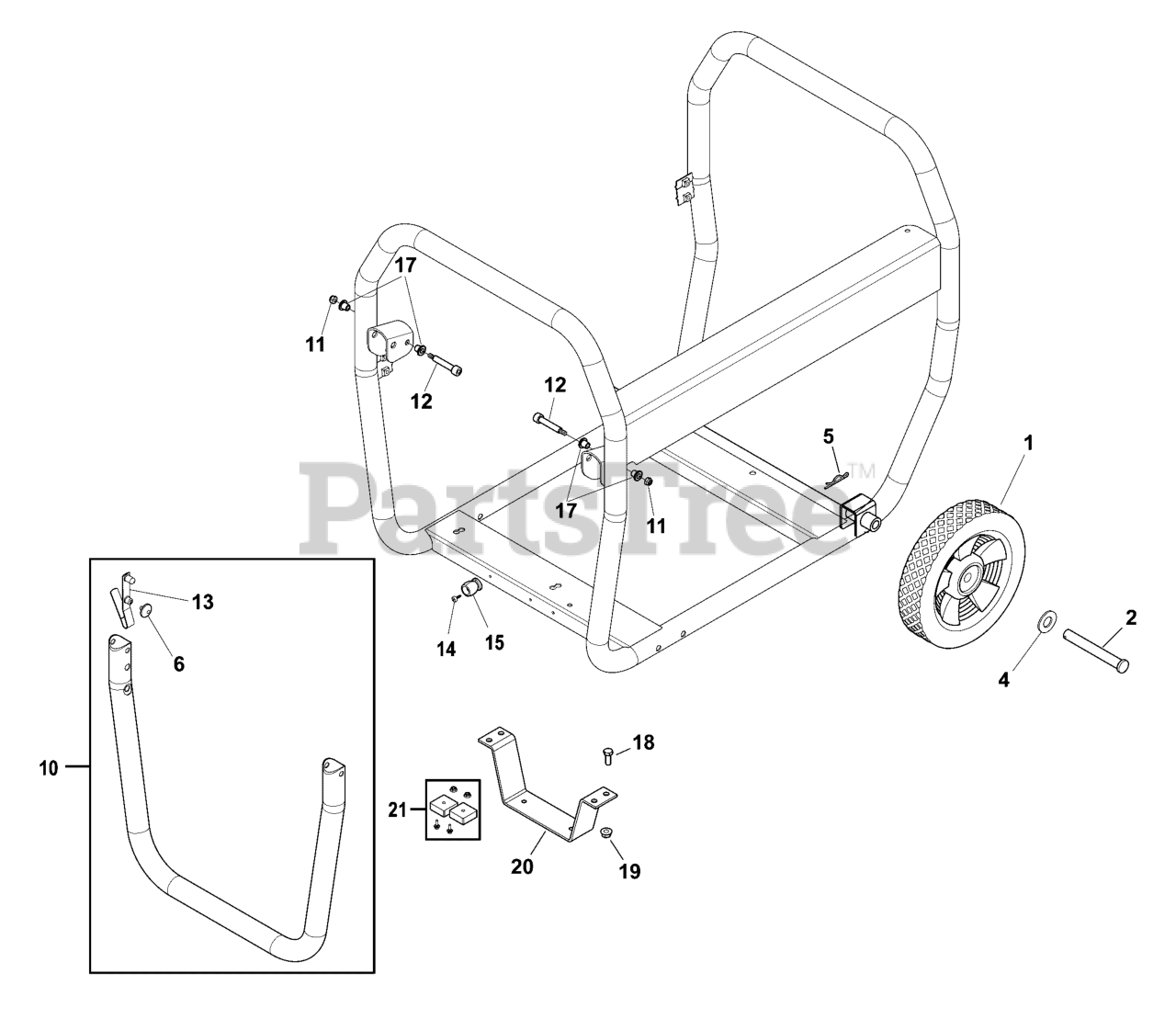

CMXGGAS030731V-00 - Craftsman 5,000 Watt Portable Generator Wheel Kit (ARI808d2) Parts Diagram

5,000 Watt Portable Generator

Wheel Kit (ARI808d2) Parts Diagram

  • Title

1

Briggs & Stratton 84007644

KIT, Wheel, Complete

Note: (Contains Items 1, 2, 4, 5, 18, 19, 20 and 21)

$

$

Currently unavailable

2

Briggs & Stratton 84007508

PIN, Axle

$

$

Currently unavailable

4

Briggs & Stratton 22247GS

WASHER, Flat, 5/8"

$3.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 316510GS

PIN-HAIR

$4.99

$

In Stock, Qty 12

0

6

Briggs & Stratton 318935GS

KNOB

$5.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 84001087

HANDLE

$111.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 67885GS

NUT, Nylock, M6-1.0

$6.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 84004365

KIT-BOLT

$

$

Currently unavailable

13

Briggs & Stratton 319429GS

PIN

$4.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 313077GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 84001074

BUMPER-RUBBER

$3.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 84006784

KIT-BEARING, Sleeve

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 771804

BOLT

$4.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 20+

0

20

Briggs & Stratton 84007497

SUPPORT LEG

$

$

Currently unavailable

21

Briggs & Stratton 319285GS

MOUNT-VIBRATION

$12.99

$

In Stock, only 2 left!

0
