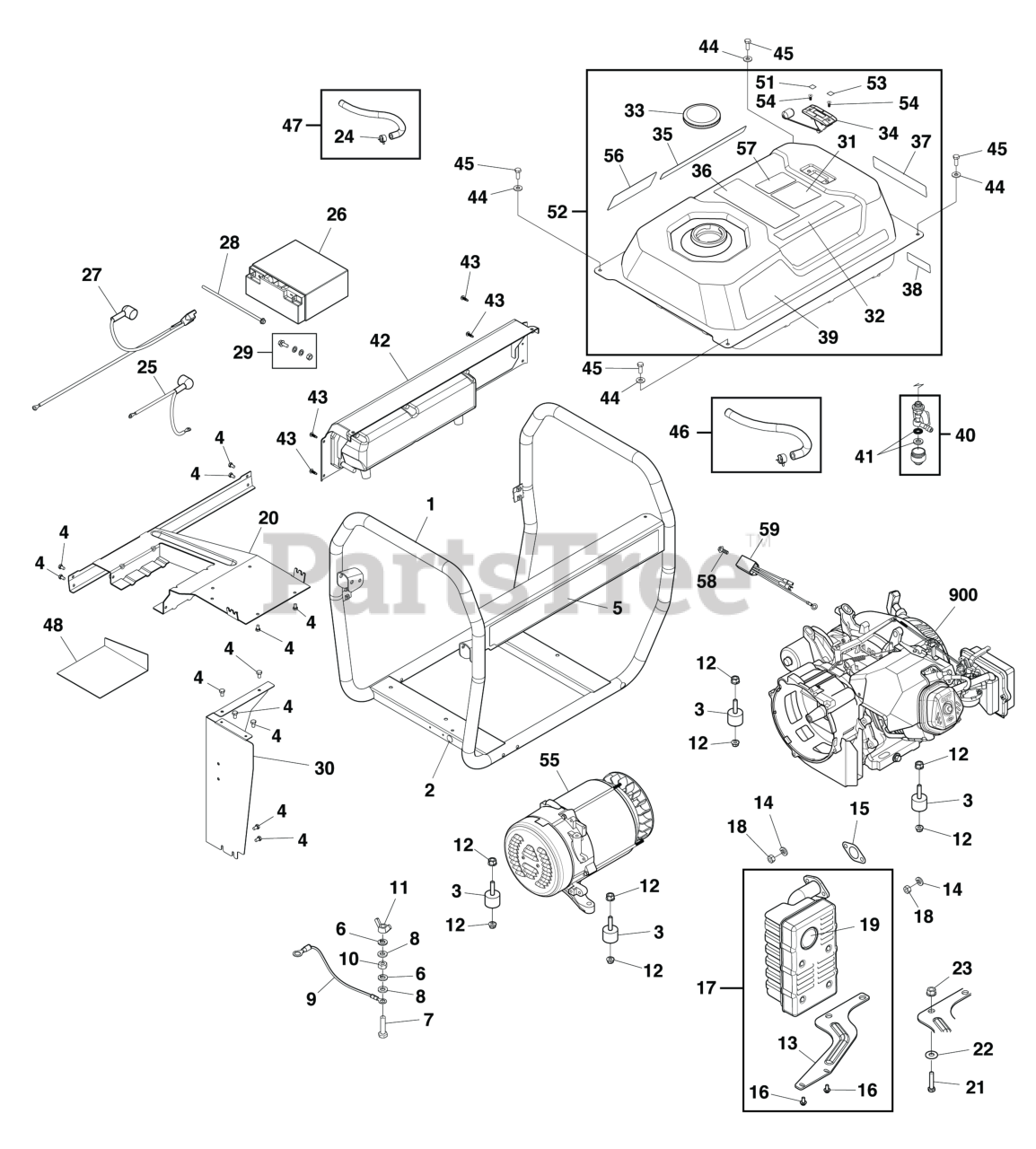

CMXGGAS030791-01 - Craftsman 8,000 Watt Portable Generator Main Unit Parts Diagram

8,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 84002095

CRADLE

Note: (Includes Items 2 & 5)

$125.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 704331

DECAL

$10.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 85651GS

MOUNT, Vibration

$24.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 43146GS

SCREW

$7.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 84002096

DECAL

$11.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22097GS

WASHER, Lock, Split, 1/4"

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 189156GS

HHCS, M6-1.0 x 25

$2.49

$

In Stock, only 1 left!

0

8

Briggs & Stratton 49811GS

WASHER

$1.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 706165

WIRE

$8.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 49813GS

NUT, Hex, M6 - 1.0

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 87680GS

NUT, M6 - 1.0 Wing

$7.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 20+

0

13

Briggs & Stratton 84003866

BRACKET-MUFFLER

$28.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 706162

LOCKWASTER, SPLIT, 3/8

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 797770

GASKET, Exhaust

$6.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66476GS

SCREW, w/Lock Washer

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 84003865

KIT-MUFFLER

$

$

Currently unavailable

18

Briggs & Stratton 45771GS

NUT, M8 - 1.25

$6.49

$

In Stock, only 2 left!

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton 84001036

SHIELD, Heat

$114.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 64416GS

BOLT

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 189295GS

Washer, .432 x 1 x .064
(Superseded to 22304GS)

$3.49

$

In Stock, only 2 left!

0

23

Briggs & Stratton 52859GS

NUT, Lock

$2.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 316173GS

CLAMP

$5.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 84001075

CABLE-BTTRY, Black

$17.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 84001084

BATTERY

$215.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 84001038

CABLE-BTTRY, Red

$17.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 707239

BOLT

$

$

Currently unavailable

29

Briggs & Stratton 315546GS

KIT, Hardware, Battery Terminal

$8.99

$

In Stock, only 1 left!

0

30

Briggs & Stratton 84001034

SHIELD, Heat

$67.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 202997GS

DECAL, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 772237

DECAL

$8.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 84002004

CAP-FUEL

$16.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 84002006

GAUGE-FUEL

$10.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 84001052

DECAL

$7.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 772234

DECAL

$10.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 84001097

DECAL

$9.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 84001098

DECAL

$7.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 84001072

DECAL

$12.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 310574GS

KIT, Fuel Valve

$10.99

$

In Stock, Qty 5

0

41

Briggs & Stratton 189759GS

KIT, Fuel Valve Repair
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 5

0

42

Briggs & Stratton REF-80079475

Refer to: Control Panel Group

$

$

Currently unavailable

43

Briggs & Stratton 84001037

SCREW

$3.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 312976GS

WASHER

$4.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 47411GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 791745

LINE, Fuel

$10.99

$

In Stock, Qty 8

0

47

Briggs & Stratton 315017GS

HOSE, Vapor (cut to fit)

$28.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 84001064

SHIELD, Heat

$11.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 313461GS

DECAL

$10.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 84002097

TANK-FUEL

$182.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 313462GS

DECAL

$9.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 314440GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton REF-80079476

Refer to: Alternator Group

$

$

Currently unavailable

56

Briggs & Stratton 84001093

DECAL

$9.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 772233

DECAL

$9.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 84003179

SCREW

$2.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 84003180

MODULE-SNUBBER

$14.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 25U135-0002-G1

Engine

Note: (Refer to Note:*)

$

$

Currently unavailable
