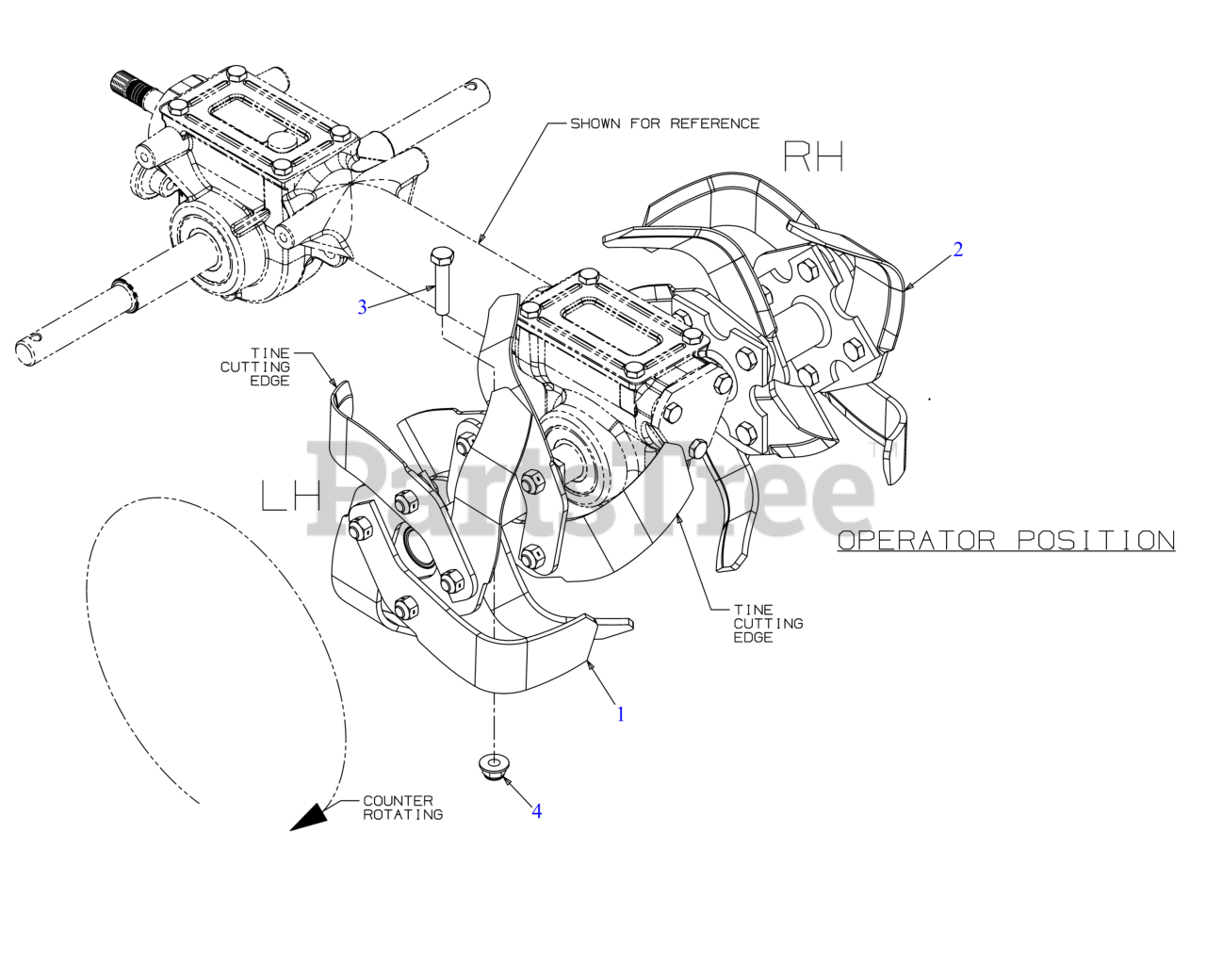

CMXGVAM1144037 (21D-65M8B93) - Craftsman 16" Tiller (2023) Tines Parts Diagram

16" Tiller

Tines Parts Diagram

  • Title

1

MTD 710-0514

SCREW 3/8-16 x 1 GR5

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

1

MTD 912-3000

LOCK NUT 3/8-16
(Superseded to 712-3000)

Note: (Not Shown)

$4.49

$

In Stock, Qty 6

0

1

MTD 742-04226

BOLO TINE 10" (RH)

Note: (Not Shown)(Choose Color When Ordering)

Variations

742-04226-0637

MTD 742-04226-0637

Bolo Tine, RH 10" Powder Black - POWDER BLACK (0637)

$17.99

$

In Stock, Qty 20+

0

742-04226-0638

MTD 742-04226-0638

Bolo Tine, RH 10" - MTD/TROY-BILT RED (0638)

$17.99

$

In Stock, Qty 20+

0

$17.99

$

In Stock, Qty 20+

0

1

MTD 686-05008

TINE HOLDER

Note: (Not Shown)(Choose Color When Ordering)

Variations

686-05008-0638

MTD 686-05008-0638

HOLDER-TINE - MTD/TROY-BILT RED (0638)

$93.99

$

In Stock, only 1 left!

0

$87.99

$

In Stock, only 1 left!

0

2

MTD 710-0514

SCREW 3/8-16 x 1 GR5

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

2

MTD 912-3000

LOCK NUT 3/8-16
(Superseded to 712-3000)

Note: (Not Shown)

$4.49

$

In Stock, Qty 6

0

2

MTD 742-04227

BOLO TINE 10" (LH)

Note: (Not Shown)(Choose Color When Ordering)

Variations

742-04227-0637

MTD 742-04227-0637

Bolo Tine, LH 10" Powder Black - POWDER BLACK (0637)

$17.99

$

In Stock, Qty 5

0

742-04227-0638

MTD 742-04227-0638

Bolo Tine, LH 10" - MTD/TROY-BILT RED (0638)

$17.99

$

In Stock, Qty 7

0

$17.99

$

In Stock, Qty 5

0

2

MTD 686-05008

TINE HOLDER

Note: (Not Shown)(Choose Color When Ordering)

Variations

686-05008-0638

MTD 686-05008-0638

HOLDER-TINE - MTD/TROY-BILT RED (0638)

$93.99

$

In Stock, only 1 left!

0

$87.99

$

In Stock, only 1 left!

0

3

MTD 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

4

MTD 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0
