CMXGWAS020736-00 - Craftsman 3,300 PSI Pressure Washer Main Unit Parts Diagram

3,300 PSI Pressure Washer

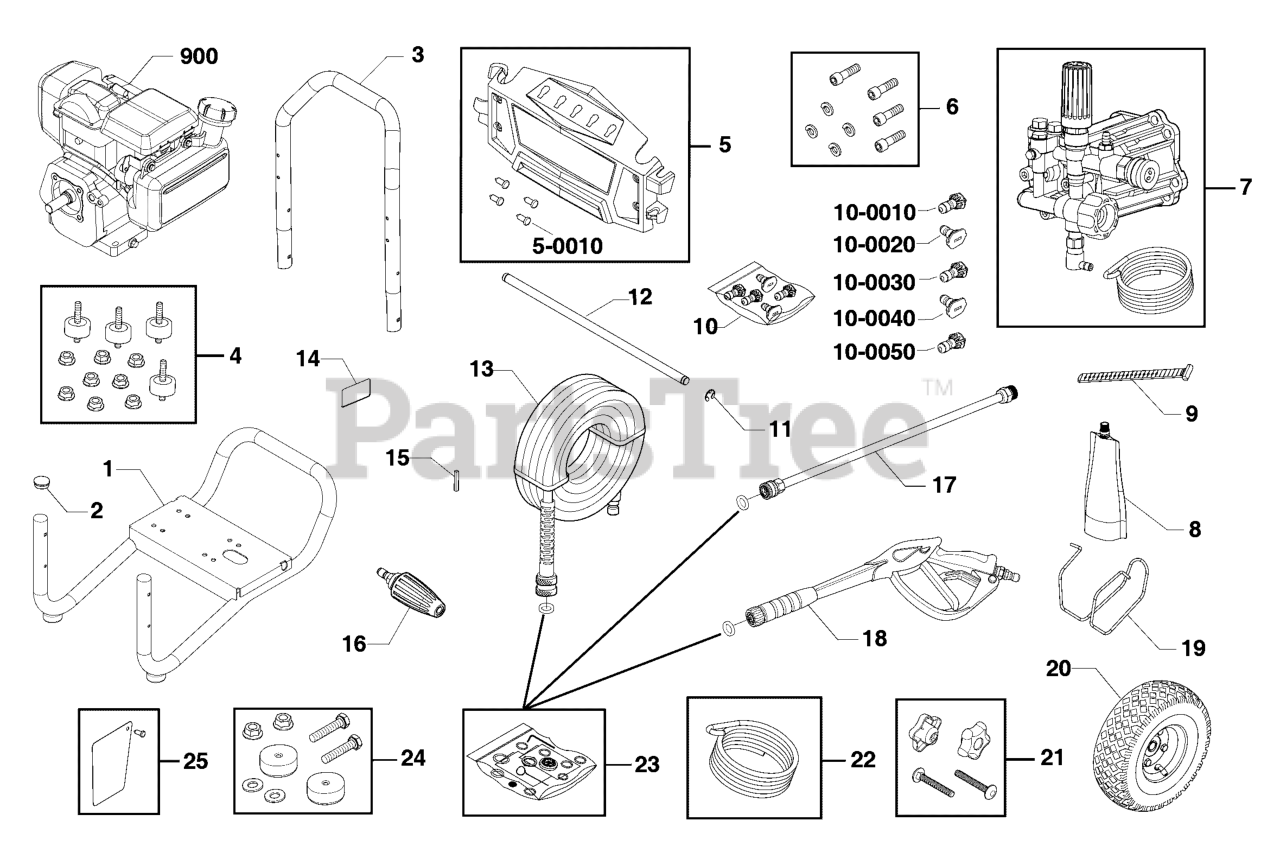

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 771927

BASE

Note: (Includes Item 2)

$245.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 189332GS

PLUG, Hole

$3.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 84001718

HANDLE

$83.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 192134GS

KIT, Vibration Mount

$29.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 84002172

BILLBOARD

$53.99

$

Usually ships in 2-12 days

0

5-0010

Briggs & Stratton B1797GS

CLIP

$3.99

$

In Stock, Qty 6

0

6

Briggs & Stratton 192131GS

KIT, Hardware, Pump Mounting

$5.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 84002174

PUMP

$235.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 100005

OIL-4 CYCLE 30W 18OZ.

$8.99

$

In Stock, Qty 8

0

9

Briggs & Stratton 84001717

STRAP

$6.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 84002182

KIT-NOZZLES

$13.99

$

Usually ships in 2-12 days

0

10-0010

Briggs & Stratton 84002173

NOZZLE-QC, RED

$5.49

$

Usually ships in 2-12 days

0

10-0020

Briggs & Stratton 195983AFGS

NOZZLE, QC, Yellow

$10.99

$

Usually ships in 2-12 days

0

10-0030

Briggs & Stratton 706518

NOZZLE, QC Cyan

$5.49

$

Usually ships in 2-12 days

0

10-0040

Briggs & Stratton 195983ADGS

Nozzle, QC, White

$11.99

$

Usually ships in 2-12 days

0

10-0050

Briggs & Stratton 706517

NOZZLE, QC Magenta
(Superseded to 706155)

$11.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 703977

E-RING

$4.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 191267ABGS

AXLE

$22.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 84002175

HOSE

$128.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 705851

DECAL-Warning Spark

$6.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 23139DGS

KEY

$4.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 84002187

NOZZLE-TURBO

$52.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 706595

EXTENSION, QC

$47.99

$

In Stock, Qty 8

0

18

Briggs & Stratton 709497

GUN

$115.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 84001723

WIREFORM

$15.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 209885GS

WHEEL
(Superseded to 209636GS)

$93.99

$

In Stock, only 3 left!

0

21

Briggs & Stratton 771929

KIT-HARDWARE, HANDLE

$6.99

$

In Stock, only 2 left!

0

22

Briggs & Stratton 705076

HOSE-CHEMICAL (cut to fit)

$12.99

$

In Stock, only 1 left!

0

23

Briggs & Stratton 705001

KIT-O-RING MAINTENANCE

$18.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 707165

TAG-WARNING, ENG

$9.49

$

Usually ships in 2-12 days

0

900

Engine, Honda

Note: (Refer to Note:*)

$

$

Not available

--

Briggs & Stratton 6039

PUMP Saver

Note: (Optional Accessory - Not Included)

$12.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 6059

PERFECT MIX MULTI-PURPOSE WASH

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable

--

Briggs & Stratton 6060

PERFECT MIX CONCRETE BRICK & TILE CLEANER

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable
