CMXGWAS020791-01 - Craftsman 3,300 PSI Pressure Washer Main Unit (80108599) Parts Diagram

3,300 PSI Pressure Washer

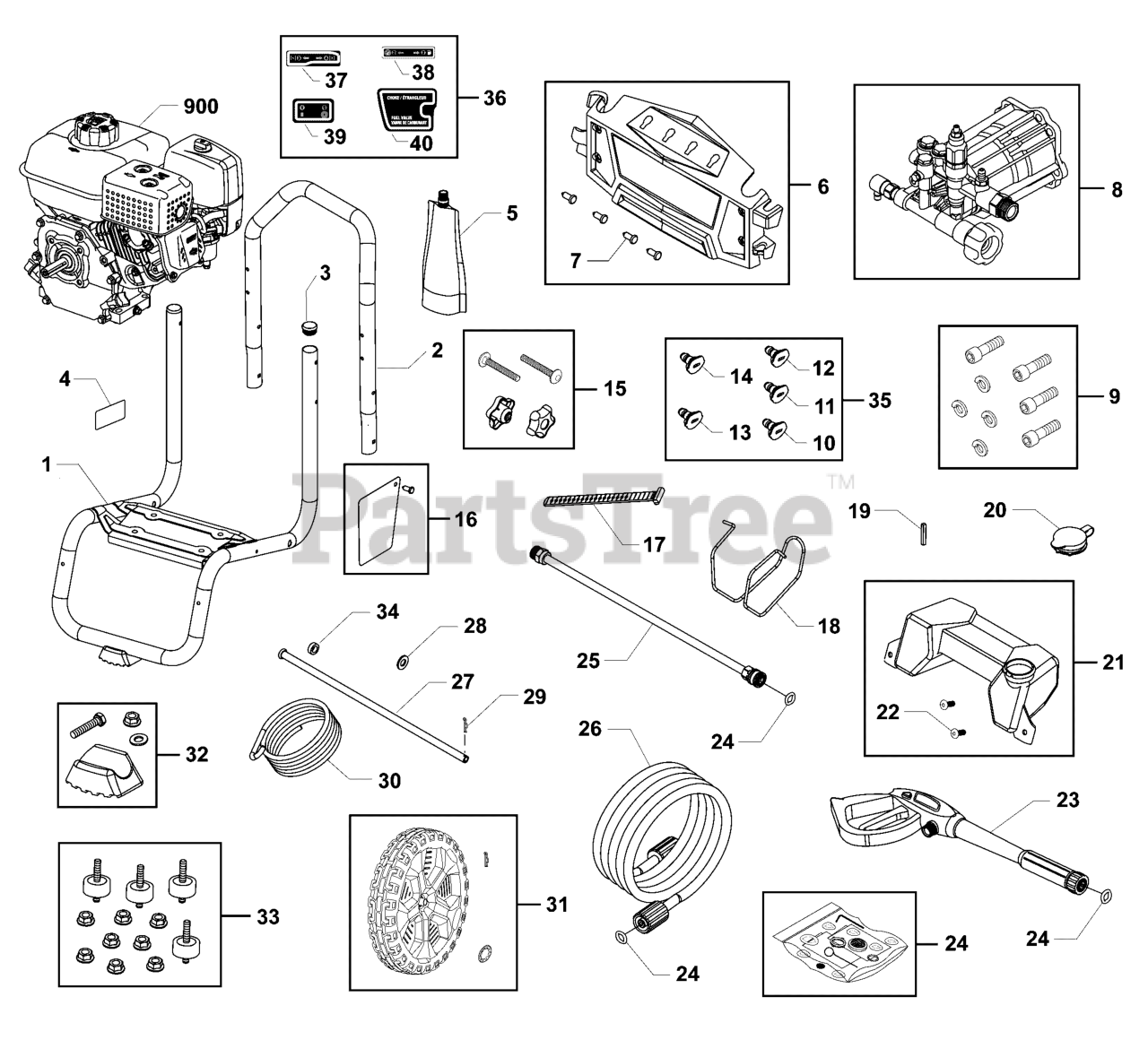

Main Unit (80108599) Parts Diagram

  • Title

1

Briggs & Stratton 84006500

BASE

Note: (Includes Item 3)

$

$

Currently unavailable

2

Briggs & Stratton 84006498

HANDLE

$81.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 189332GS

PLUG, Hole

$3.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 705851

DECAL-Warning Spark

$6.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 100005

OIL-4 CYCLE 30W 18OZ.

$8.99

$

In Stock, Qty 8

0

6

Briggs & Stratton 84006845

KIT-BILLBOARD

$33.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B1797GS

CLIP

$3.99

$

In Stock, Qty 8

0

8

Briggs & Stratton 84007054

PUMP

$268.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 192131GS

KIT, Hardware, Pump Mounting

$5.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 198841GS

NOZZLE, QC, Black

$10.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 709745

NOZZLE-QC, RED

$6.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 195983AKGS

NOZZLE, QC, Yellow

$10.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 195983VGS

NOZZLE-QC WHITE

$10.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 195983ALGS

NOZZLE, QC, Green

$9.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 84001720

KIT-HANDLE

$5.99

$

In Stock, Qty 5

0

16

Briggs & Stratton 84007490

KIT-TAG, Warning, English

$

$

Currently unavailable

17

Briggs & Stratton 84001717

STRAP

$6.49

$

In Stock, only 1 left!

0

18

Briggs & Stratton 84006499

WIREFORM

$12.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 23139DGS

KEY

$4.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 84001722

CAP

$5.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 84006503

KIT-CHEMICAL TANK

$

$

Not available

22

Briggs & Stratton 195964GS

CLIP

$4.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 84002234

GUN, BIT
(Superseded to 84003228)

$74.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 705001

O-RING, 0.706 ID X 0.097

$18.99

$

In Stock, only 3 left!

0

25

Briggs & Stratton 706595

EXTENSION

$47.99

$

In Stock, Qty 9

0

26

Briggs & Stratton 84006757

HOSE

$

$

Not available

27

Briggs & Stratton 84006847

AXLE

$12.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 22304GS

Washer, Flat 1/2

$3.49

$

In Stock, only 1 left!

0

29

Briggs & Stratton 84006849

CLIP-RETAINER

$2.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 705076

HOSE-CHEMICAL

$12.99

$

In Stock, only 1 left!

0

31

Briggs & Stratton 84006502

WHEEL

Note: (Includes Item 29)

$30.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 84006505

KIT-MOUNT, VIBRATION

$10.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton 192134GS

KIT, Vibration Mount

$29.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 84006848

BUSHING

$2.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 84004784

KIT-QC NOZZLES

$16.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 84007646

KIT, Decals, Engine Controls

$

$

Currently unavailable

37

DECAL,Choke, JD

$

$

Not available

38

DECAL, Fuel Shutoff, JD

$

$

Not available

39

DECAL, Ignition Switch, JD

$

$

Not available

40

DECAL, Starting, JD

$

$

Not available

900

ENGINE, 208CC, ID, RED RECOIL

Note: (Not Serviced as a Complete Assembly. Refer to 80098132 Component Groups)

$

$

Not available

--

Briggs & Stratton 6039

PUMP Saver

Note: (Optional Accessory - Not Included)

$12.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 6059

PERFECT MIX MULTI-PURPOSE WASH

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable

--

Briggs & Stratton 6060

PERFECT MIX CONCRETE BRICK & TILE CLEANER

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable
