CN 1842ST A - Poulan Pro Lawn Tractor (2004) Chassis And Enclosures Parts Diagram

Lawn Tractor

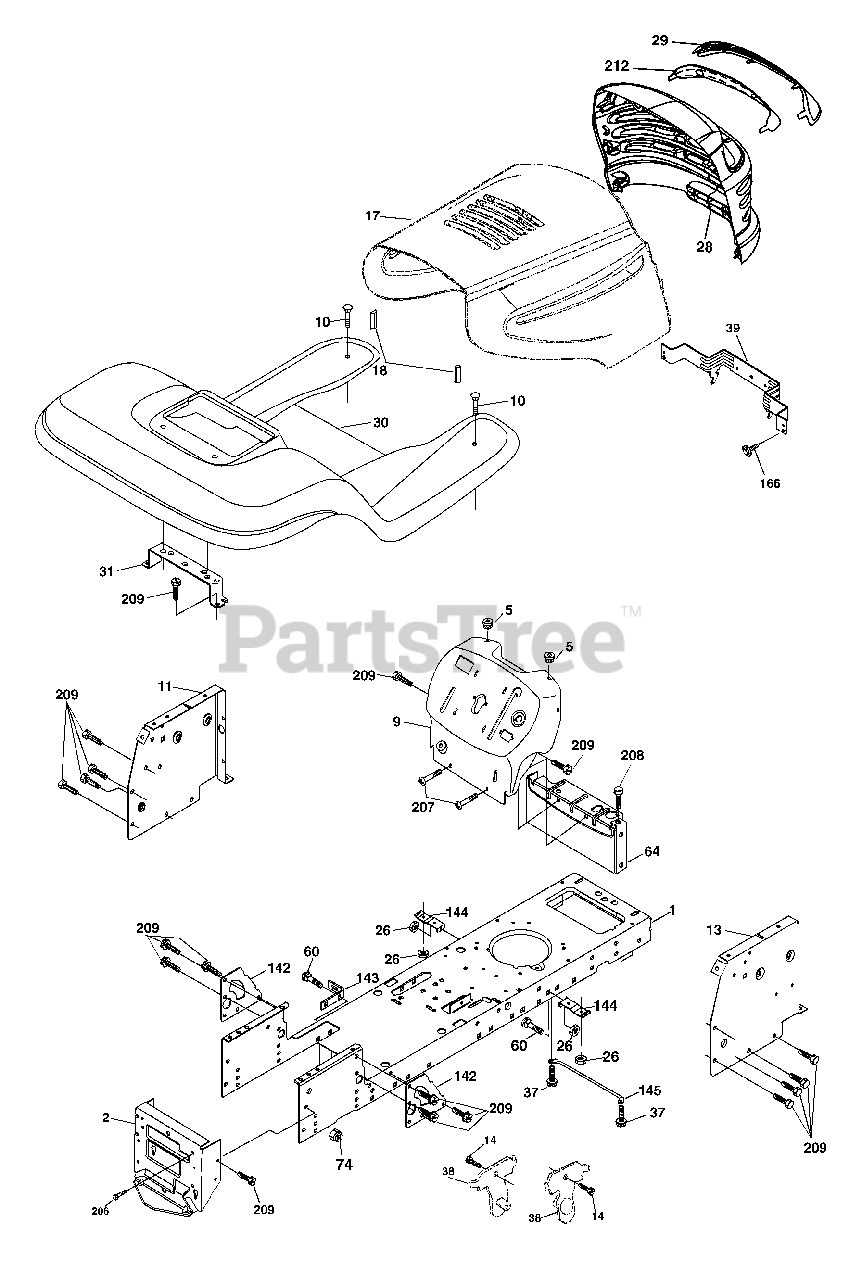

Chassis And Enclosures Parts Diagram

  • Title

1

Electrolux/AYP 174619

Chassis
(Superseded to 532174619)

$241.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 176554

Drawbar
(Superseded to 532176554)

$40.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 155272

Bumper Hood/Dash
(Superseded to 532155272)

$7.49

$

In Stock, Qty 5

0

9

Electrolux/AYP 187846X012

Dash

$

$

Not available

10

Murray 72140608

Bolt, Carriage 3/8-16 x 3/4

$

$

Not available

11

Electrolux/AYP 174996

Panel, Dash, L.H.
(Superseded to 532174996)

$11.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 179174X010

Panel, Dash, R.H.

$9.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 17490608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 183393X428

Hood
(Superseded to 532194588)

$78.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 184921

Bumper Hood
(Superseded to 532184921)

$7.49

$

In Stock, Qty 12

0

26

Electrolux/AYP 73800600

Nut
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 183826

Grille/Lens Asm.
(Superseded to 583128201)

Note: (Includes Key Nos. 29 and 212)

$145.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 183824X599

Lens Grille
(Superseded to 532189837)

$

$

Not available

30

Electrolux/AYP 188571X428

Fend/Ftrest

$

$

Not available

31

Electrolux/AYP 139976

Bracket, Fender Support
(Superseded to 532139976)

$10.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 17490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 175710

Pivot Bracket Assembly, Rear
(Superseded to 532175710)

$9.99

$

In Stock, only 2 left!

0

39

Electrolux/AYP 174714

Bracket Pivot Laser Lt
(Superseded to 532407807)

$26.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 72140606

Bolt Rdhd Sqnk 3/8-16 UNC x 1
(Superseded to 872140606)

$

$

Not available

64

Electrolux/AYP 154798

Dash Lower STLT
(Superseded to 532154798)

$31.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 73680600

Nut Crownlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

142

Electrolux/AYP 175702

Plate Reinforcement STLT
(Superseded to 532175702)

$7.49

$

Usually ships in 3-10 days

0

143

Electrolux/AYP 186689

Bracket Swaybar Chassis
(Superseded to 532186689)

$6.49

$

In Stock, Qty 11

0

144

Electrolux/AYP 175582

Bracket Pnt Footrest STLT
(Superseded to 532175582)

$7.49

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 191611

Screw 10 x 3/4 Single Lead-Hex
(Superseded to 596321701)

$3.99

$

In Stock, Qty 20+

0

206

Electrolux/AYP 170165

Bolt Shoulder 5/16-18 TT
(Superseded to 532170165)

$4.99

$

In Stock, Qty 20+

0

207

Electrolux/AYP 17670508

Screw Thdrol 5/16-18 x 1/2 Tytt
(Superseded to 817670508)

$6.49

$

In Stock, only 2 left!

0

208

Electrolux/AYP 17670608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817670608)

$6.49

$

In Stock, only 2 left!

0

209

Electrolux/AYP 17000612

Screw Hexwsh Thdr. 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

212

Electrolux/AYP 183823

Insert Lens Reflective
(Superseded to 532183823)

$15.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 5479J

Plug, Button
(Superseded to 532005479)

$4.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 187801

Plug, Dome Plastic
(Superseded to 532187801)

$4.99

$

Usually ships in 3-10 days

0
