Combi 103 - Husqvarna 103cm Mower Deck Assembly (2019-01) 103CM CUTTING DECK 2 Parts Diagram

103cm Mower Deck Assembly

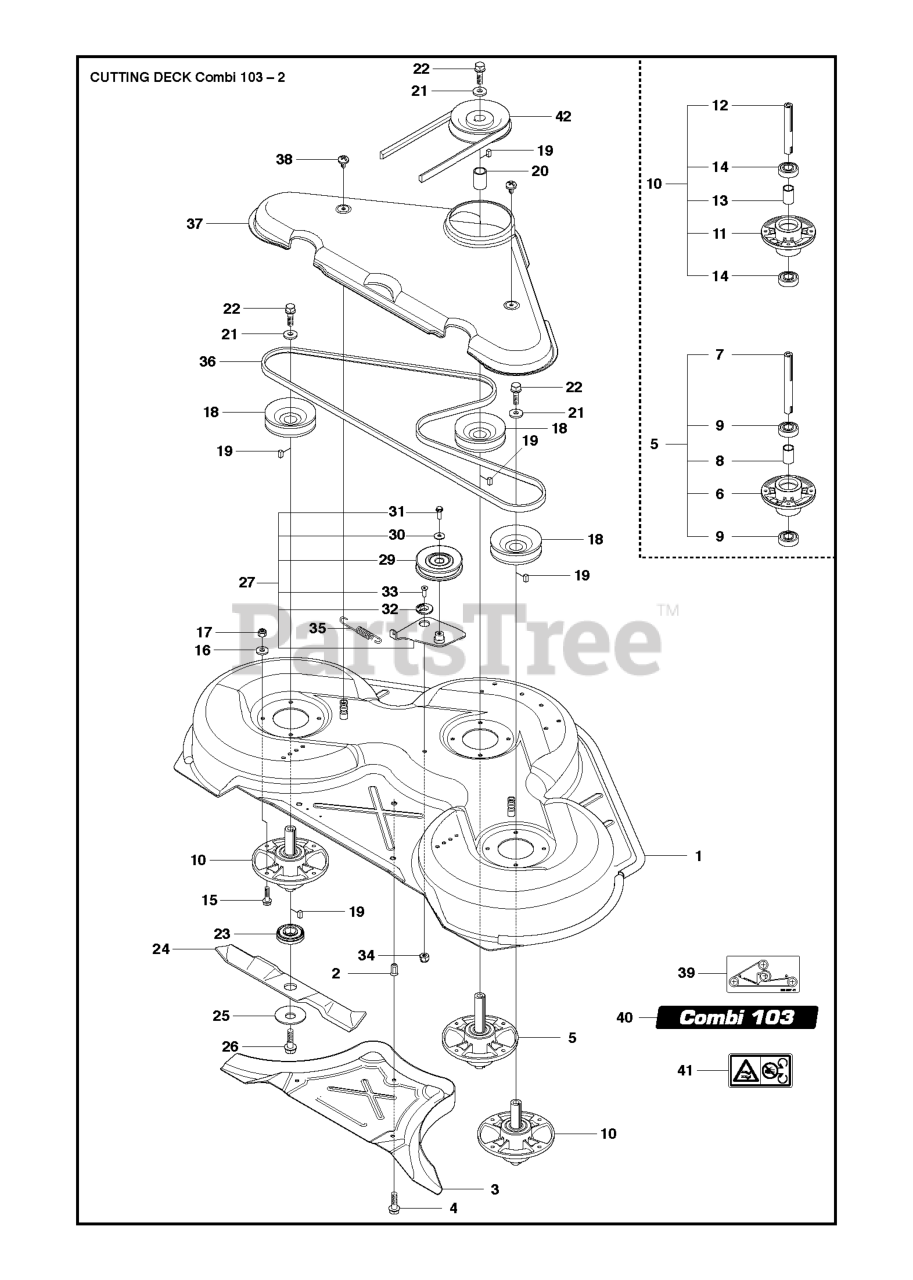

103CM CUTTING DECK 2 Parts Diagram

  • Title

11

Husqvarna 576384201

BEARING HOUSING

$

$

Not available

22

Husqvarna 544114101

SCREW

$3.99

$

In Stock, only 2 left!

0

36

Husqvarna 589530601

BELT

$65.99

$

In Stock, only 2 left!

0

35

Husqvarna 506533101

SPRING

$14.99

$

In Stock, only 1 left!

0

25

Husqvarna 588145601

WASHER

$8.49

$

Usually ships in 3-10 days

0

13

Husqvarna 576384401

SPACING SLEEVE

$

$

Not available

10

Husqvarna 576384102

BLADE HOUSING ASSY

$107.99

$

Usually ships in 3-10 days

0

5

Husqvarna 576384101

BLADE HOUSING ASSY

$119.99

$

In Stock, only 1 left!

0

27

Husqvarna 586966601

BELT TENSIONER ASSY KIT

$77.99

$

Usually ships in 3-10 days

0

9

Husqvarna 738230434

BEARING

$23.99

$

Usually ships in 3-10 days

0

8

Husqvarna 576384401

SPACING SLEEVE

$

$

Not available

1

Husqvarna 574210801

CUTTING DECK RIDER

$478.99

$

Usually ships in 3-10 days

0

16

Husqvarna 734116401

WASHER BRB 8.4X17

$7.49

$

In Stock, only 3 left!

0

21

Husqvarna 734117441

WASHER

$7.49

$

In Stock, Qty 20+

0

42

Husqvarna 506778601

PULLEY

$65.99

$

Usually ships in 3-10 days

0

31

Husqvarna 586320401

$

$

Currently unavailable

18

Husqvarna 506922101

PULLEY

$37.99

$

In Stock, only 2 left!

0

4

Husqvarna 506570104

BOLT

$7.99

$

Usually ships in 3-10 days

0

39

Husqvarna 506789701

Decal

$

$

Not available

30

Husqvarna 734116441

SPACER

$3.49

$

In Stock, only 1 left!

0

12

Husqvarna 576384302

SHAFT

$

$

Not available

33

Husqvarna 725645301

SCREW

$5.99

$

Usually ships in 3-10 days

0

32

Husqvarna 586496701

WASHER SHOULDER ASSY

$

$

Not available

24

Husqvarna 504188210

BLADE

$31.99

$

In Stock, Qty 9

0

19

Husqvarna 506533501

KEY

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 738230434

BEARING

$23.99

$

Usually ships in 3-10 days

0

6

Husqvarna 576384201

BEARING HOUSING

$

$

Not available

2

Husqvarna 506916201

NUT

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 535423801

BOLT

$5.99

$

Usually ships in 3-10 days

0

17

Husqvarna 732211801

LOCKNUT M8

$3.99

$

In Stock, only 3 left!

0

37

Husqvarna 544096101

COVER

$

$

Not available

41

Husqvarna 574510001

DECAL

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 544400501

SCREW

$3.99

$

In Stock, Qty 5

0

34

Husqvarna 732211801

LOCKNUT M8

$3.99

$

In Stock, only 3 left!

0

7

Husqvarna 576384301

SHAFT

$39.99

$

Usually ships in 3-10 days

0

3

Husqvarna 544449201

PLUG

$77.99

$

In Stock, only 1 left!

0

26

Husqvarna 544114101

SCREW

$3.99

$

In Stock, only 2 left!

0

23

Husqvarna 535504202

ADAPTER

$26.99

$

Usually ships in 3-10 days

0

20

Husqvarna 544068002

SPACER

$14.99

$

Usually ships in 3-10 days

0

40

Husqvarna 544238103

DECAL

$

$

Not available

29

Husqvarna 506532701

PULLEY

$53.99

$

In Stock, only 2 left!

0
