Combi 112 - Husqvarna 112cm Mower Deck Assembly (2019-01) 44"/112CM CUTTING DECK 2 Parts Diagram

112cm Mower Deck Assembly

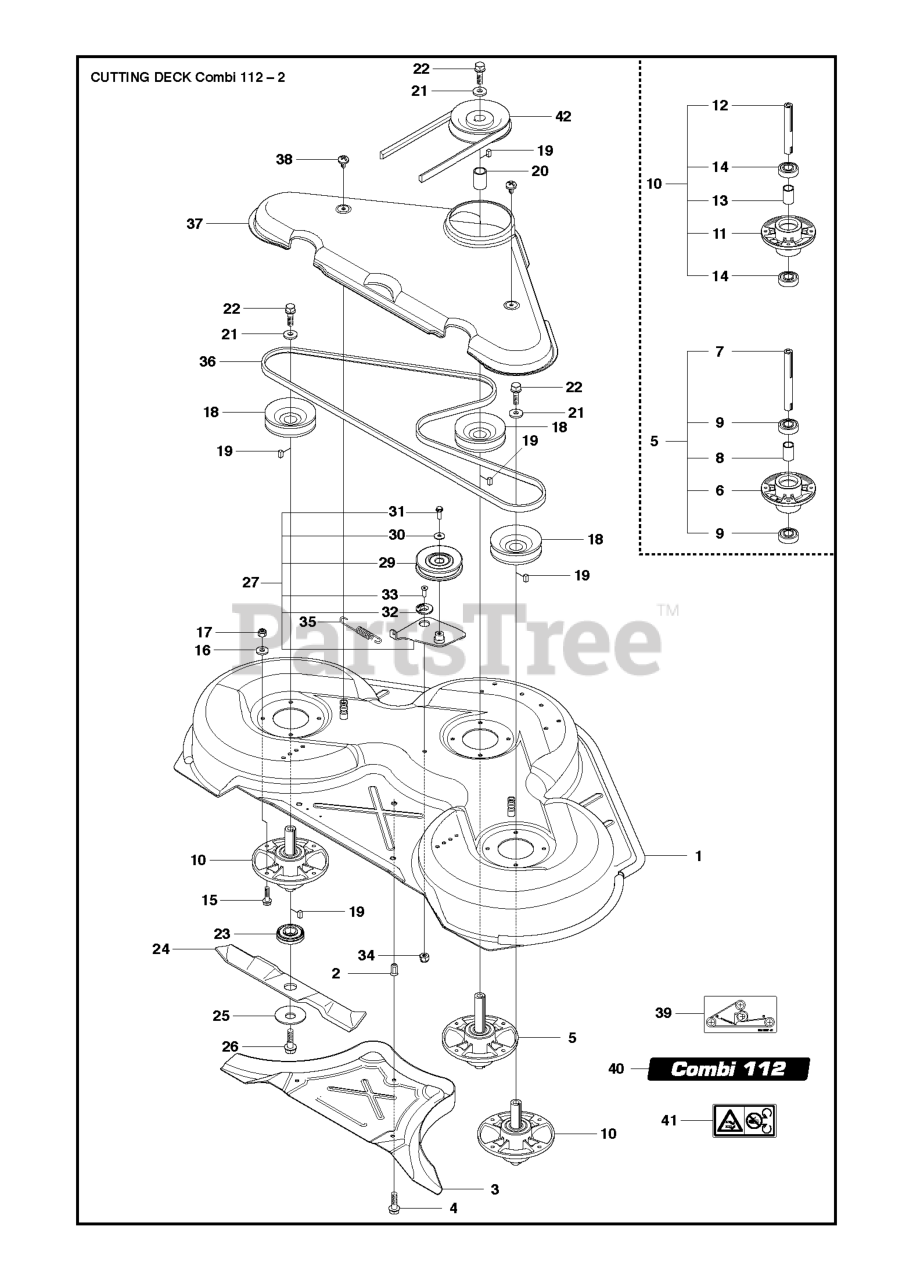

44"/112CM CUTTING DECK 2 Parts Diagram

  • Title

8

Husqvarna 576384401

SPACING SLEEVE

$

$

Not available

36

Husqvarna 589514601

BELT
(Superseded to 594978001)

$84.99

$

In Stock, Qty 7

0

35

Husqvarna 506533101

SPRING

$17.99

$

In Stock, only 1 left!

0

12

Husqvarna 576384302

SHAFT

$

$

Not available

24

Husqvarna 504188110

BLADE

$36.99

$

Usually ships in 3-10 days

0

39

Husqvarna 506789701

Decal

$

$

Not available

37

Husqvarna 544096201

BELT COVER

$62.99

$

Usually ships in 3-10 days

0

23

Husqvarna 535504202

ADAPTER

$31.99

$

Usually ships in 3-10 days

0

1

Husqvarna 574209501

CUTTING DECK

$

$

Not available

6

Husqvarna 576384201

BEARING HOUSING

$

$

Not available

25

Husqvarna 588145601

WASHER

$10.99

$

Usually ships in 3-10 days

0

2

Husqvarna 506916201

NUT

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 576384401

SPACING SLEEVE

$

$

Not available

11

Husqvarna 576384201

BEARING HOUSING

$

$

Not available

31

Husqvarna 586320401

$

$

Currently unavailable

18

Husqvarna 506922101

PULLEY

$62.99

$

In Stock, only 1 left!

0

42

Husqvarna 506778601

PULLEY

$74.99

$

Usually ships in 3-10 days

0

5

Husqvarna 576384101

BLADE HOUSING ASSY

$94.99

$

Usually ships in 3-10 days

0

26

Husqvarna 544114101

SCREW

$6.99

$

In Stock, Qty 8

0

19

Husqvarna 506533501

KEY

$6.49

$

In Stock, only 2 left!

0

21

Husqvarna 734117441

WASHER

$6.99

$

In Stock, Qty 7

0

4

Husqvarna 506570104

BOLT

$6.99

$

In Stock, only 1 left!

0

34

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

16

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

22

Husqvarna 544114101

SCREW

$6.99

$

In Stock, Qty 8

0

14

Husqvarna 738230434

BEARING

$45.99

$

Usually ships in 3-10 days

0

33

Husqvarna 725645301

SCREW

$6.99

$

In Stock, only 1 left!

0

7

Husqvarna 576384301

SHAFT

$45.99

$

Usually ships in 3-10 days

0

10

Husqvarna 576384102

BLADE HOUSING ASSY

$94.99

$

Usually ships in 3-10 days

0

9

Husqvarna 738230434

BEARING

$45.99

$

Usually ships in 3-10 days

0

3

Husqvarna 544449301

PLUG

$68.99

$

Usually ships in 3-10 days

0

32

Husqvarna 586496701

WASHER SHOULDER ASSY

$0.00

$

Usually ships in 3-10 days

0

40

Husqvarna 544238105

LABEL

$

$

Not available

15

Husqvarna 535423801

BOLT

$6.99

$

Usually ships in 3-10 days

0

17

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

30

Husqvarna 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

41

Husqvarna 574510001

DECAL

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 586966601

BELT TENSIONER ASSY KIT

$91.99

$

Usually ships in 3-10 days

0

29

Husqvarna 506532701

PULLEY

$69.99

$

In Stock, only 1 left!

0

20

Husqvarna 544068002

SPACER

$14.99

$

In Stock, only 3 left!

0

38

Husqvarna 544400501

SCREW

$5.99

$

In Stock, Qty 8

0
