Comfort Control DD (5900553) - Ferris Comfort Control DD 52" Walk-Behind Mower, 21hp Kawasaki, Side-Discharge Engine Deck & Frame Group Parts Diagram

Comfort Control DD 52" Walk-Behind Mower, 21hp Kawasaki, Side-Discharge

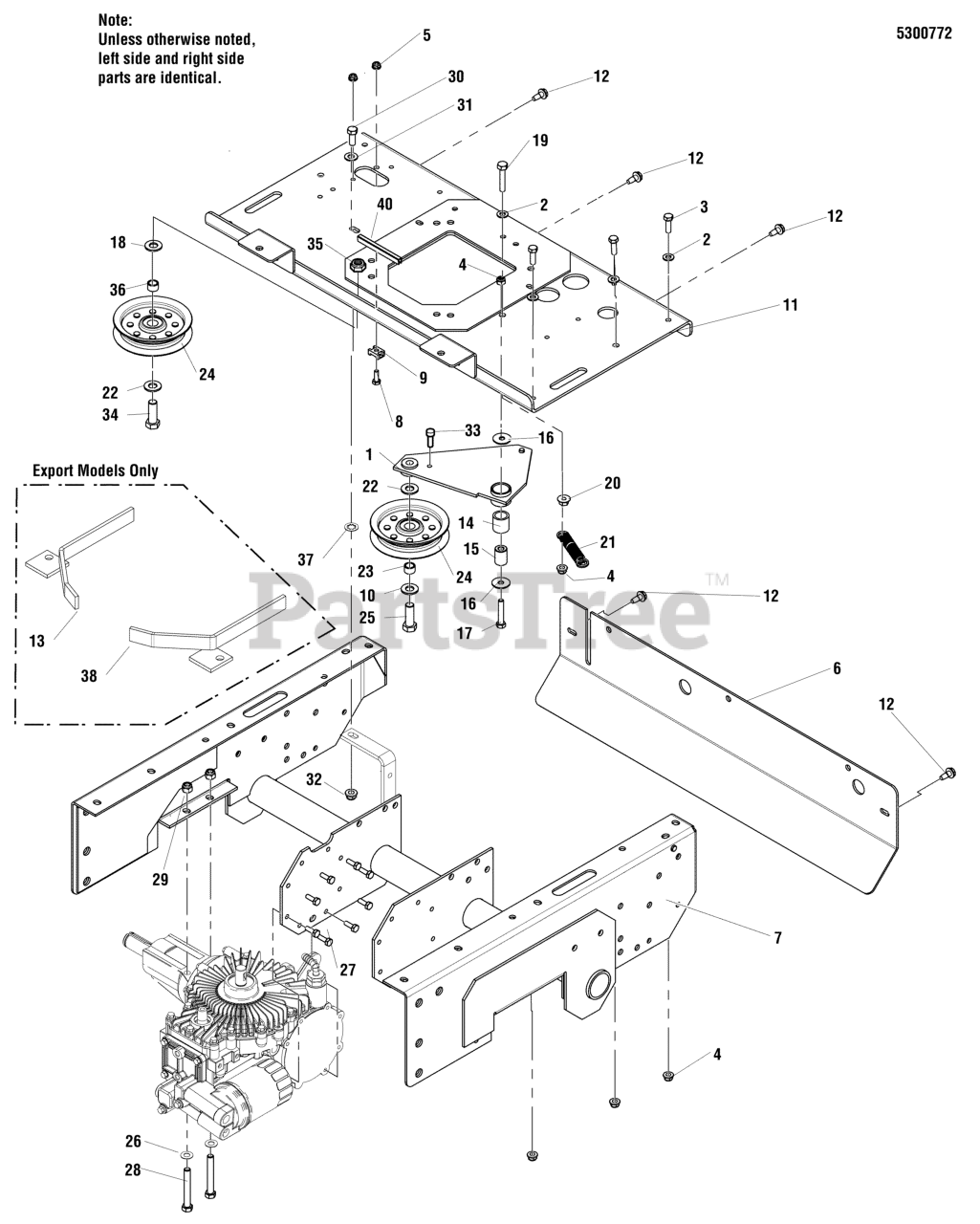

Engine Deck & Frame Group Parts Diagram

  • Title

1

Ferris 5443473B

WELD, MOUNT, GROUND DRIVE IDLER
(Superseded to 5043473B)

$94.99

$

Usually ships in 2-12 days

0

2

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

3

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

6

Ferris 5044700B

PLATE, ENGINE DECK BACK

$182.99

$

Usually ships in 2-12 days

0

7

Ferris 5043467B

WELD, ENGINE DECK, DDS

$598.99

$

Usually ships in 2-12 days

0

8

Ferris 5025010X6

BOLT, 1/4-20 X 3/4" GD5
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

9

Ferris 5020480

CABLE TIE ANCHOR MOUNT

$

$

Currently unavailable

10

Ferris 5025331

WASHER, LOCK, 1/2 HI-ALLOY CZ
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

11a

Ferris 5408831B

WELD, ENGINE DECK CCW

Note: (S/N: 2015684834 & Above)

$

$

Currently unavailable

11b

Ferris 5407273B

WELD, ENGINE DECK CCW

Note: (S/N: 2014601076 - 2015684834)

$

$

Currently unavailable

11c

Ferris 5402200B

WELD, ENGINE DECK, DDS

Note: (S/N: 2014601075 & Below)

$296.99

$

Usually ships in 2-12 days

0

12

Ferris 5025059X6

BOLT, 5/16-18 X 3/4" SELF TAP
(Superseded to 5025059X6FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5402669B

WELD, ENGINE, CE GUARD RH

Note: (Export Models)

$23.99

$

Usually ships in 2-12 days

0

14

Ferris 5020876B

BUSHING, BRASS 3/4 X 1 X 1
(Superseded to 5020876BSM)

$11.99

$

Usually ships in 2-12 days

0

15

Ferris 5042134

SPACER, .32 X .75 X 1.06
(Superseded to 5042134SM)

$6.49

$

Usually ships in 2-12 days

0

16

Ferris 5025164

WASHER, 5/16" FENDER
(Superseded to 5025164SM)

$3.99

$

Usually ships in 2-12 days

0

17a

Ferris 5025011X16

BOLT, 5/16-18 X 2" GD5
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

17b

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5
(Superseded to 5025011X14SM)

Note: (Export Models)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5044913

WASHER, FRAME RETAINING
(Superseded to 5044913SM)

$6.99

$

In Stock, only 1 left!

0

19

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

20

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5020807

SPRING, EXTENSION
(Superseded to 5020807SM)

$8.49

$

Usually ships in 2-12 days

0

22

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 7

0

23

Ferris 5020870

INSERT, BEARING
(Superseded to 5020870SM)

$5.49

$

In Stock, only 3 left!

0

24

Ferris 5021002

PULLEY, IDLER
(Superseded to 5021002SM)

$40.99

$

In Stock, Qty 5

0

25a

Ferris 5025018X12

BOLT, 1/2-20 X 1-1/2, GD5 CZ
(Superseded to 5025018X12FS)

$4.99

$

Usually ships in 2-12 days

0

25b

Ferris 5025018X10

BOLT, 1/2-20 X 1-1/4" GD5 CZ
(Superseded to 5025018X10SM)

Note: (Export Models)

$2.99

$

Usually ships in 2-12 days

0

26

Ferris 5025293

WASHER, 3/8 GR. 9
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 7

0

27

Ferris 5025198X6

BOLT, 1/4-20 X 3/4" GD5 WITH PATCH

$2.99

$

Usually ships in 2-12 days

0

28a

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, Qty 5

0

28b

Ferris 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

Note: (Export Models)

$4.99

$

In Stock, only 2 left!

0

29

Ferris 5025394

NUT, 3/8-16 HEX NYLON FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 17

0

30

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

31

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

32

Ferris 5025128

NUT, 3/8-16 HEX SER FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 1 left!

0

33

Ferris 5022289

RIVET, PLASTIC PUSH-IN
(Superseded to 5022289SM)

$3.99

$

Usually ships in 2-12 days

0

34

Ferris 5025018X18

BOLT, 1/2-20 X 2-1/4 GD5 CZ
(Superseded to 5025018X18SM)

$3.99

$

Usually ships in 2-12 days

0

35

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

Usually ships in 2-12 days

0

36

Ferris 5021168

INSERT, BEARING 1/2" SHOULDER
(Superseded to 5021168FS)

$10.99

$

In Stock, only 2 left!

0

37

Ferris 5025472

3/8 PUSHNUT BOLT RETAINER

$

$

Currently unavailable

38

Ferris 5402663B

WELD, ENGINE, CE GUARD LH

Note: (Export Models)

$23.99

$

Usually ships in 2-12 days

0

39

Ferris 5021397

GROMMET
(Superseded to 5021397SM)

$6.49

$

Usually ships in 2-12 days

0

40

Ferris 5050840X4

BLACK SOFTONE Q-TRIM, 4.00" LONG

$

$

Currently unavailable
