Comfort Control DD (5900554) - Ferris Comfort Control DD 61" Walk-Behind Mower, 24hp Kawasaki, Side-Discharge Parking Brake Group Parts Diagram

Comfort Control DD 61" Walk-Behind Mower, 24hp Kawasaki, Side-Discharge

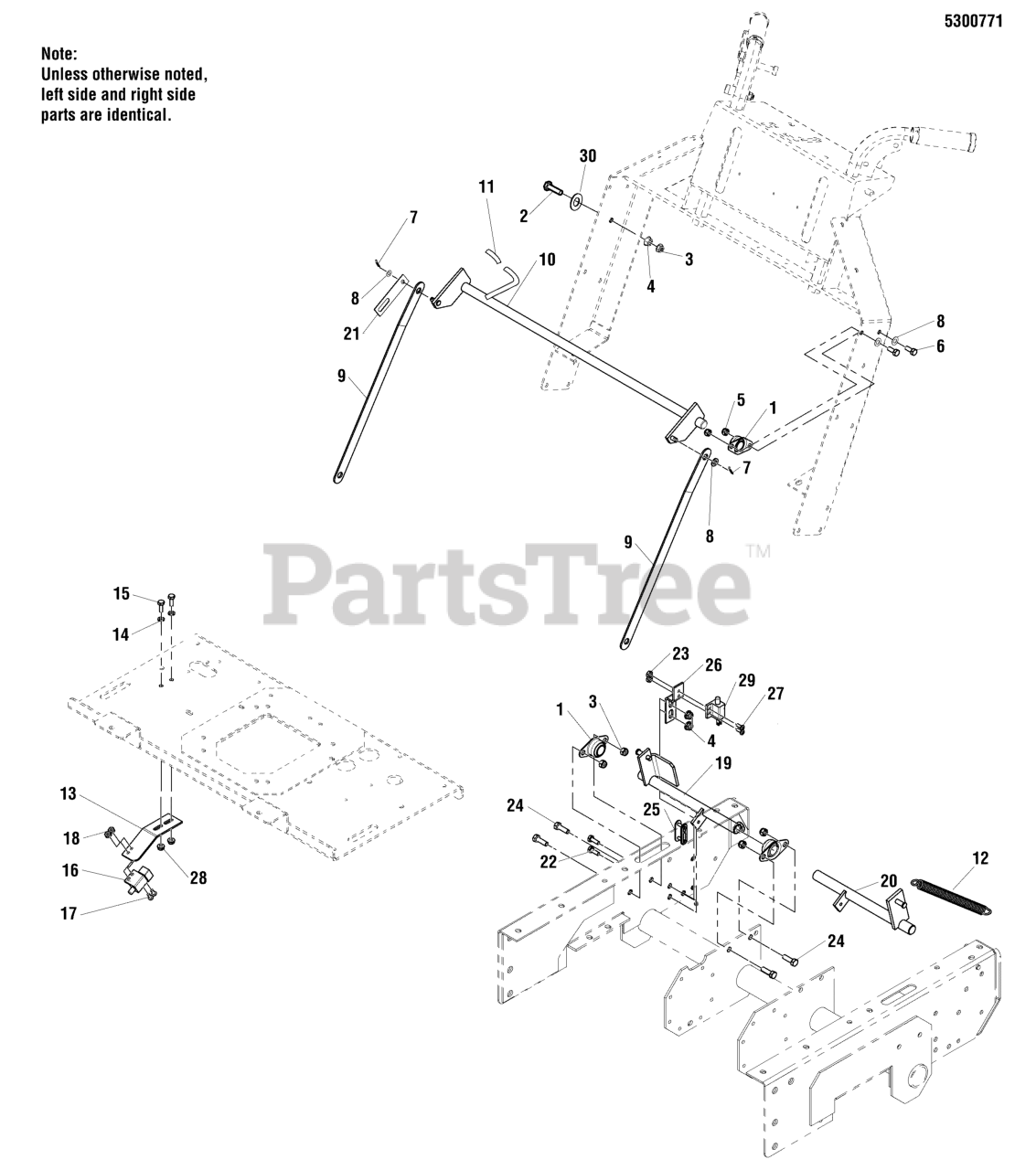

Parking Brake Group Parts Diagram

  • Title

1

Ferris 5021098

BEARING, BRONZE FLANGE 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 7

0

2

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

3

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 17

0

4

Ferris 5025128

NUT, 3/8-16 HEX LG. SERR FLG
(Superseded to 5025128SM)

$3.49

$

In Stock, only 1 left!

0

5

Ferris 5025057

NUT 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

7

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

8

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

9a

Ferris 5407261B

ROD, BRAKE PUSH

Note: (S/N: 2014601076 & ABOVE)

$

$

Currently unavailable

9b

Ferris 5043452B

ROD, BRAKE PUSH

Note: (S/N: 2014601075 & BELOW)

$40.99

$

Usually ships in 2-12 days

0

10

Ferris 5402167B

WELD, BRAKE LEVER

$96.99

$

Usually ships in 2-12 days

0

11

Ferris 5021880

GRIP, FOAM
(Superseded to 5021880SM)

$5.99

$

In Stock, only 1 left!

0

12

Ferris 5021103

SPRING-EXT, .750OD X 7.65LG X .115WR
(Superseded to 5021103SM)

$19.99

$

Usually ships in 2-12 days

0

13

Ferris 5043470B

MOUNT, SWITCH

$6.99

$

Usually ships in 2-12 days

0

14

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

15

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

16

Ferris 5022438

SWITCH, BLACK PLUNGER
(Superseded to 5022438SM)

$20.99

$

In Stock, only 1 left!

0

17

Ferris 5025179X4

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$

$

Currently unavailable

18

Ferris 5025029

NUT, #10-24 HEX
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

19

Ferris 5043349B

WELD, BRAKE SHAFT, RH

$136.99

$

Usually ships in 2-12 days

0

20

Ferris 5043435B

WELD, BRAKE SHAFT, LH

$136.99

$

Usually ships in 2-12 days

0

21

Ferris 5402496B

PLATE, BRAKE STOP

$9.49

$

Usually ships in 2-12 days

0

22

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

23

Ferris 5025029

NUT, HEX, #10-24
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

24

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

25

Ferris 5021426

LINK, #A20/50 CONNECTING
(Superseded to 5021426FS)

$6.99

$

Usually ships in 2-12 days

0

26

Ferris 5044710B

MOUNT, DDS NEUTRAL SWITCH

$27.99

$

Usually ships in 2-12 days

0

27

Ferris 5025179X4

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$

$

Currently unavailable

28

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

29

Ferris 1717050

SWITCH, PLUNGER, N.O./N.C.
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 12

0

30

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0
