Compact Diesel - Bad Boy Zero-Turn Mower (2010) Front Cast Suspension Parts Diagram

Zero-Turn Mower

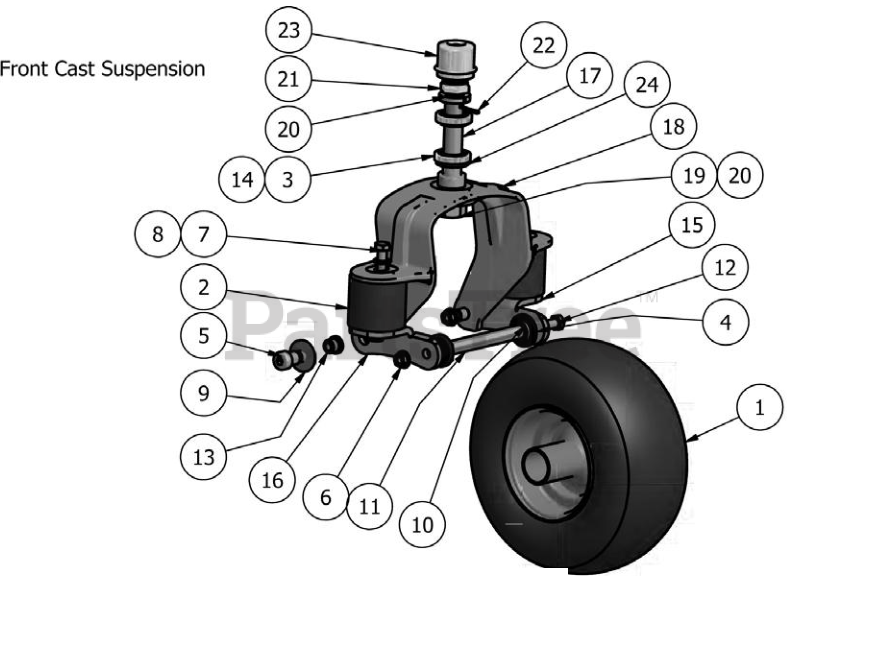

Front Cast Suspension Parts Diagram

  • Title

1

Bad Boy 022-3060-00

13" x 6.50 - 6 Tire and Wheel

$140.99

$

Usually ships in 4-7 days

0

1a

Bad Boy 022-3070-00

13" x 6.50 -6 NO-Flat Tire and Wheel (Diesel Only)

$

$

Not available

2

Bad Boy 032-9002-00

Rubber Isolator

$75.99

$

In Stock, only 3 left!

0

3

Bad Boy 010-7001-00

Caster Bearing

$9.99

$

In Stock, Qty 11

0

4

Bad Boy 022-7010-00

Large Bore Bearing

$21.99

$

In Stock, Qty 6

0

5

Bad Boy 018-3001-00

5/8" x 5/8" Shoulder Bolt

$16.99

$

In Stock, Qty 8

0

6

Bad Boy 013-8050-00

1/2" Nylock Nut

$1.99

$

In Stock, Qty 20+

0

7

Bad Boy 018-5006-00

1/2" x 1 1/2" Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

8

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

9

Bad Boy 019-5038-00

5/8" Flat Washer

$1.99

$

In Stock, only 4 left!

0

10

Bad Boy 025-5203-00

3/4" OD x 1/2" ID x 3/4"

$3.49

$

In Stock, Qty 7

0

11

Bad Boy 025-5202-00

7" x 1/2" ID Tire Spacer

$10.99

$

In Stock, Qty 13

0

12

Bad Boy 018-3002-00

1/2" x 10" Bolt

$8.49

$

In Stock, only 3 left!

0

13

Bad Boy 032-5052-00

5/8" Shoulder Bushing

$4.99

$

In Stock, Qty 6

0

14

Bad Boy 011-7002-00

Race

$4.99

$

Usually ships in 4-7 days

0

15

Bad Boy 023-0013-00

Suspension Fork-Bottom Right

$33.99

$

Usually ships in 4-7 days

0

16

Bad Boy 023-0012-00

Suspension Fork-Bottom Left

$33.99

$

Usually ships in 4-7 days

0

17

Bad Boy 037-0010-00

Spindle Shaft

$45.99

$

In Stock, only 3 left!

0

18

Bad Boy 023-7915-98

Suspension Fork Assembly

$388.99

$

Usually ships in 4-7 days

0

19

Bad Boy 013-6016-00

1" Hex Nut

$4.99

$

In Stock, only 2 left!

0

20

Bad Boy 019-3000-00

1" Lock Washer

$3.49

$

Usually ships in 4-7 days

0

21

Bad Boy 013-9004-00

1" Fine Thread Nylock Half Nut

$3.99

$

In Stock, only 4 left!

0

22

Bad Boy 020-3000-00

Cotter Pin

$0.99

$

Usually ships in 4-7 days

0

23

Bad Boy 014-7005-00

Dust Cover

$9.99

$

In Stock, Qty 18

0

24

Bad Boy 012-7003-00

Seal

$10.99

$

In Stock, Qty 6

0
