Compact Outlaw - Bad Boy Zero-Turn Mower (2016) 42" Deck Assembly Parts Diagram

Zero-Turn Mower

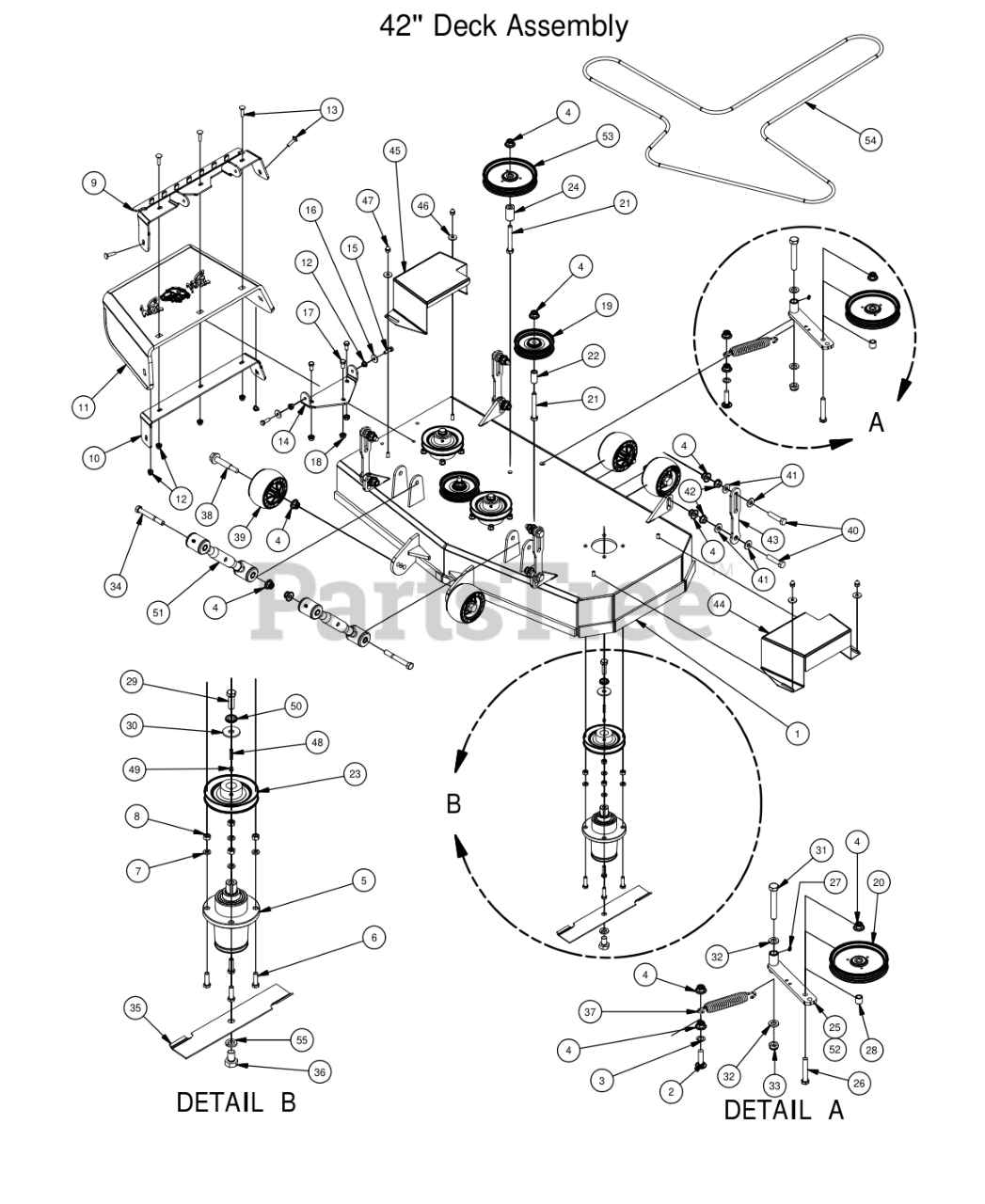

42" Deck Assembly Parts Diagram

  • Title

1

Bad Boy 060-5442-00

42" Compact Outlaw Deck-Welded Shell

$

$

Not available

2

Bad Boy 018-1050-00

1/2 x 2" Carriage Bolt

$1.99

$

In Stock, only 1 left!

0

3

Bad Boy 019-0007-00

.517 Square Hole Round Washer

$1.49

$

In Stock, only 1 left!

0

4

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

5

Bad Boy 037-6015-50

Spindle Assembly

$227.99

$

In Stock, Qty 20+

0

6

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 9

0

7

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

8

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

9

Bad Boy 039-4870-00

Discharge Upper Chute Bracket

$45.99

$

Usually ships in 4-7 days

0

10

Bad Boy 039-4871-00

Discharge Lower Chute Bracket

$34.99

$

Usually ships in 4-7 days

0

11

Bad Boy 210-6005-00

Rubber Discharge Chute

$63.99

$

In Stock, only 2 left!

0

12

Bad Boy 013-8049-00

5/16" Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

13

Bad Boy 018-4703-00

5/16" x 1 1/4" Carriage Bolt

$0.99

$

In Stock, only 3 left!

0

14

Bad Boy 206-6017-00

Discharge Chute Hanger (Deck Mounted)

$41.99

$

In Stock, only 2 left!

0

15

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

17

Bad Boy 018-5250-00

3/8" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

18

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

19

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

20

Bad Boy 033-7201-00

5-3/4 Idler Pulley-Don Dye

$37.99

$

In Stock, Qty 20+

0

21

Bad Boy 018-2018-00

1/2 x 3 1/2 Flange Bolt Grade 8

$3.99

$

In Stock, only 2 left!

0

22

Bad Boy 025-5338-00

.502 ID X.750 OD X 1.500 Long Spacer

$3.99

$

In Stock, only 2 left!

0

23

Bad Boy 033-6003-00

5" Spindle Deck Pulley

$45.99

$

In Stock, only 2 left!

0

24

Bad Boy 025-5339-00

1 3/4" Pulley Spacer

$5.99

$

In Stock, only 2 left!

0

25

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 2 left!

0

26

Bad Boy 018-7016-00

1/2-13 x GR 5 Hex Bolt Zinc

$1.99

$

In Stock, Qty 5

0

27

Bad Boy 024-6034-00

1/4" Press in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

28

Bad Boy 025-5203-00

Spacer 3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 7

0

29

Bad Boy 018-6019-00

1/2"-20 x 1 1/2 - Grade 5 Fine Thread Bolt

$1.49

$

In Stock, Qty 6

0

30

Bad Boy 019-6020-00

1/2 Belleville Washer

$5.49

$

In Stock, Qty 20+

0

31

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

32

Bad Boy 019-6017-00

.630 ID X 1.122 OD X .142 THK Flat Washer Nylon

$0.99

$

In Stock, only 4 left!

0

33

Bad Boy 013-5301-00

5/8" Nylock (1/2 Jam)

$0.99

$

In Stock, only 2 left!

0

34

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

$4.99

$

In Stock, only 2 left!

0

35

Bad Boy 038-4226-00

42" High Lift Blade

$22.99

$

In Stock, Qty 6

0

36

Bad Boy 018-6020-00

5/8" x 1 1/2" Grade 8 Hex Bolt (Fine)

$2.99

$

In Stock, Qty 20+

0

37

Bad Boy 034-2020-00

2015 Deck Idler Spring Outlaws

$18.99

$

In Stock, Qty 20+

0

38

Bad Boy 018-0010-00

Deck Wheel Bolt

$6.99

$

In Stock, Qty 20+

0

39

Bad Boy 022-1000-00

Anti-Scalp Rollers

$18.99

$

In Stock, Qty 20+

0

40

Bad Boy 018-6037-00

1/2-13X 2-1/4 GR Hex Bolts

$1.99

$

Usually ships in 4-7 days

0

41

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

42

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

43

Bad Boy 039-2125-00

Deck_Hanging_Tab longer

$

$

Not available

44

Bad Boy 014-4805-00

Pulley Cover Compact Outlaw-Left

$

$

Currently unavailable

45

Bad Boy 014-4810-00

Pulley Cover Compact Outlaw-Right

$

$

Currently unavailable

46

Bad Boy 019-6050-00

.360 ID Plastic Washer-Black

$0.99

$

In Stock, only 4 left!

0

47

Bad Boy 013-0004-00

Acorn nut-pulley Cover

$3.49

$

In Stock, only 2 left!

0

48

Bad Boy 042-6030-00

1/4" x 1" Key

$4.99

$

In Stock, Qty 7

0

49

Bad Boy 030-0050-00

5/16 Set Screw

$1.99

$

In Stock, Qty 20+

0

50

Bad Boy 019-5007-00

1/2" Lock Washer Zinc

$0.99

$

Usually ships in 4-7 days

0

51

Bad Boy 048-7000-00

Turnbuckle

$

$

Not available

52

Bad Boy 039-6945-01

Deck Idler Assembly (Parts 4,25,26,27,28,53)

$43.99

$

Usually ships in 4-7 days

0

53

Bad Boy 033-7201-25

5-3/4 Idler Pulley

$37.99

$

In Stock, Qty 20+

0

54

Bad Boy 041-4022-00

B 138 Deck Belt

$83.99

$

In Stock, Qty 17

0

55

Bad Boy 019-4807-00

5/8" Lock Washer

$0.99

$

Usually ships in 4-7 days

0
