Compact Outlaw - Bad Boy Zero-Turn Mower (2016) Frame & Fuel Tank Parts Diagram

Zero-Turn Mower

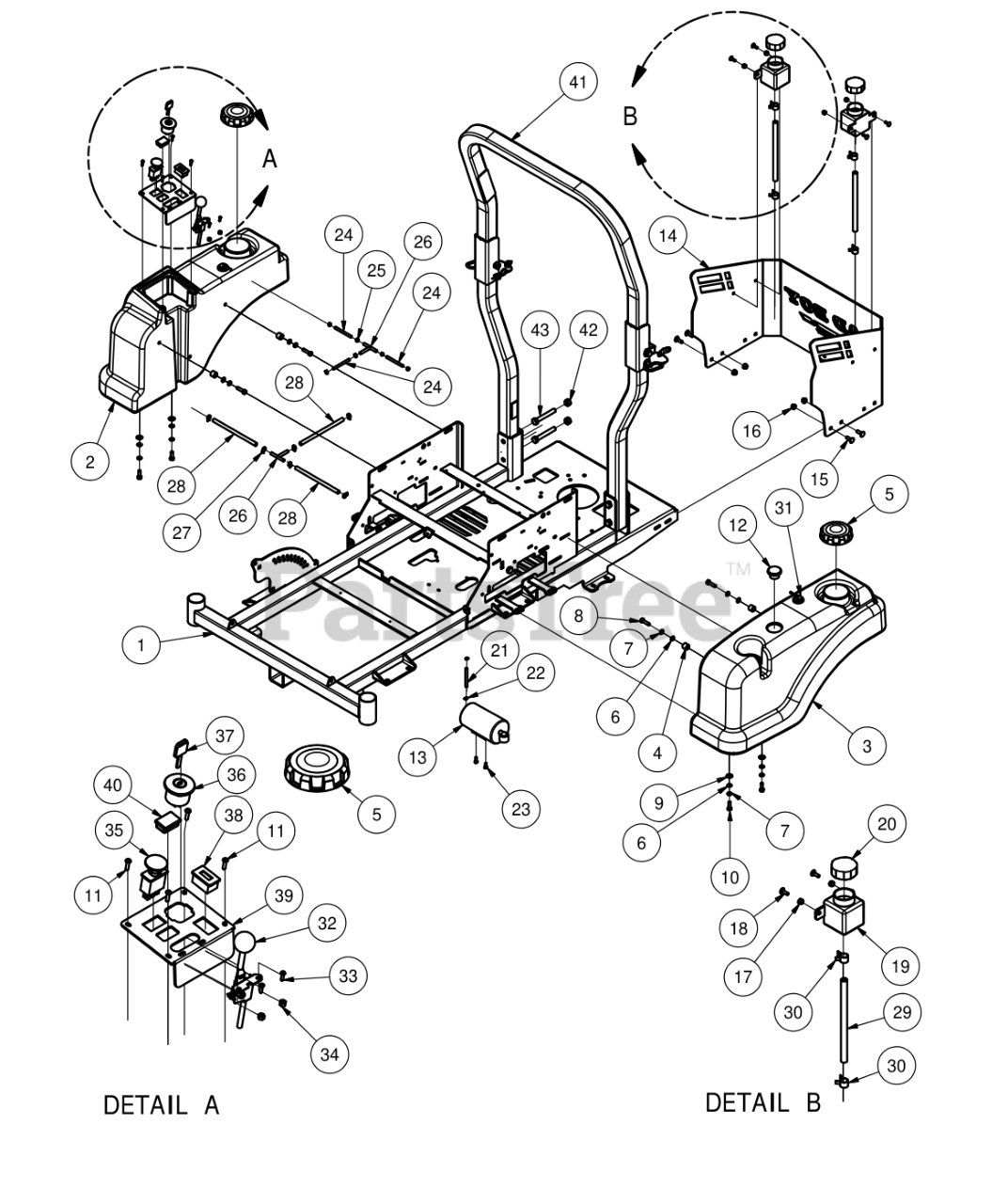

Frame & Fuel Tank Parts Diagram

  • Title

1

Bad Boy 070-5500-00

2016 Compact Outlaw Frame

$

$

Currently unavailable

2

Bad Boy 067-5000-50

Right Fuel Tank/Outlaw/2012/EPA

$364.99

$

Usually ships in 4-7 days

0

3

Bad Boy 067-5001-50

Left Fuel Tank/Outlaw/2012/EPA

$364.99

$

Usually ships in 4-7 days

0

4

Bad Boy 025-2000-00

.380x.735x.470 Nylon Spacer

$0.99

$

Usually ships in 4-7 days

0

5

Bad Boy 066-8083-00

Fuel Cap

$25.99

$

In Stock, only 3 left!

0

6

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 6

0

7

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

8

Bad Boy 018-2006-00

5/16 x 1 1/4 Hex Bolt

$0.99

$

In Stock, Qty 5

0

9

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

10

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 018-2010-00

10-32 x 3/8" Button Socket Head Bolt

$0.99

$

In Stock, only 4 left!

0

12

Bad Boy 067-4050-00

Fuel Gauge Tanks W/downtube

$49.99

$

Usually ships in 4-7 days

0

13

Bad Boy 067-0020-00

Carbon Canister

$66.99

$

In Stock, only 2 left!

0

14

Bad Boy 026-0080-00

2014 ZT Rear Plate

$226.99

$

Usually ships in 4-7 days

0

15

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 013-8049-00

5/16" Nylock Flange Nut

$0.99

$

Usually ships in 4-7 days

0

17

Bad Boy 013-8073-00

1/4" Nylock Nut

$0.99

$

In Stock, only 2 left!

0

18

Bad Boy 019-8040-00

1/4" x 3/4" Carriage Bolt

$1.99

$

In Stock, only 2 left!

0

19

Bad Boy 067-8090-00

350ml Expansion Tank

$33.99

$

In Stock, Qty 9

0

20

Bad Boy 066-5050-00

Hydraulic Tank Cap

$16.99

$

In Stock, only 2 left!

0

21

Bad Boy 051-8073-00

3/16 Vinyl Tubing

$3.49

$

In Stock, only 2 left!

0

22

Bad Boy 072-8073-00

3/16" Vinyl Hose Clamp

$3.49

$

Usually ships in 4-7 days

0

23

Bad Boy 018-0024-00

M6-1.0 X 16MM Hex Bolt

$3.49

$

In Stock, Qty 7

0

24

Bad Boy 051-8072-00

1/4" Vinyl Tubing

$3.49

$

In Stock, Qty 6

0

25

Bad Boy 072-8072-00

1/4" Hose Clamp

$3.49

$

Usually ships in 4-7 days

0

26

Bad Boy 073-8068-00

fuel line T

$10.99

$

Usually ships in 4-7 days

0

27

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

28

Bad Boy 051-8067-00

1/4" Fuel Line Hose

$6.99

$

In Stock, only 3 left!

0

29

Bad Boy 051-8063-00

3/8" Clear Hose

$3.49

$

In Stock, Qty 7

0

30

Bad Boy 072-8065-00

3/8" Hose Clamp

$1.49

$

In Stock, only 2 left!

0

31

Bad Boy 067-6052-00

Rollover Valve

$

$

Not available

32

Bad Boy 055-8020-00

Throttle Lever Assembly

$41.99

$

In Stock, Qty 17

0

33

Bad Boy 018-5200-00

10-24 X 5/8 BS Button Head Bolt

$0.99

$

In Stock, Qty 5

0

34

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut

$0.99

$

Usually ships in 4-7 days

0

35

Bad Boy 056-8058-00

PTO Switch

$36.99

$

In Stock, Qty 20+

0

36

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

37

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

38

Bad Boy 083-4013-00

Tachometer

$79.99

$

In Stock, Qty 20+

0

39

Bad Boy 079-3450-00

Control Panel

$33.99

$

Usually ships in 4-7 days

0

40

Bad Boy 018-1040-00

Plug

$3.49

$

Usually ships in 4-7 days

0

41

Bad Boy 089-0005-00

2016 2X2 ROPS

$452.99

$

Usually ships in 4-7 days

0

42

Bad Boy 013-0005-00

1/2" Center Lock Nut

$3.49

$

Usually ships in 4-7 days

0

43

Bad Boy 018-6054-00

1/2-13 x 3 1/2 GR 5 Hex Bolt

$2.49

$

In Stock, only 2 left!

0
