Compact Outlaw - Bad Boy Zero-Turn Mower (2017) Frame Bottom Assembly Parts Diagram

Zero-Turn Mower

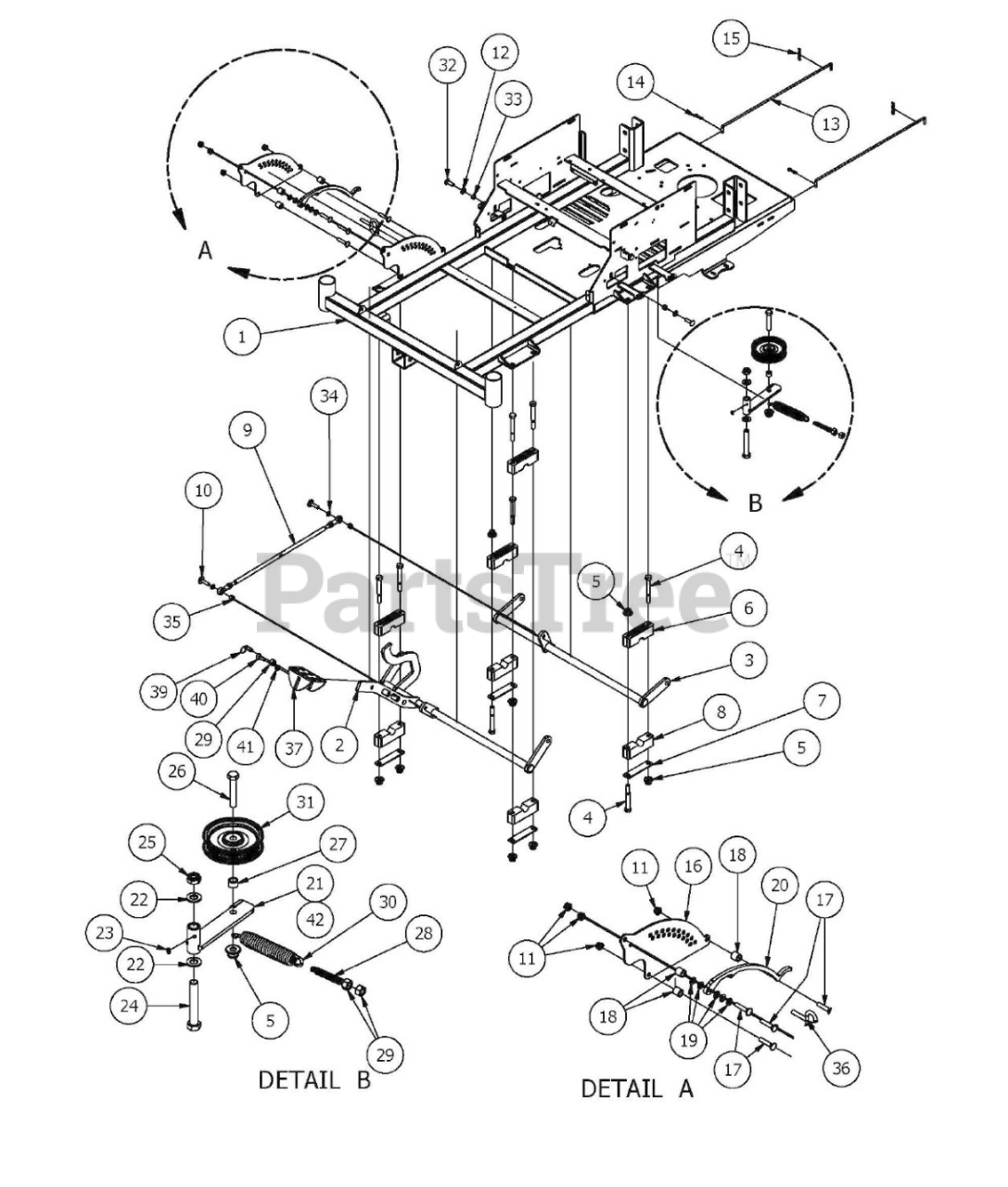

Frame Bottom Assembly Parts Diagram

  • Title

1

Bad Boy 070-5500-17

2017 Compact Outlaw Frame

$

$

Currently unavailable

2

Bad Boy 028-0005-00

Actuator Bar Front- 2016 Compact Outlaw

$94.99

$

Usually ships in 4-7 days

0

3

Bad Boy 028-0006-00

Actuator Bar Rear- 2016 Compact Outlaw

$77.99

$

Usually ships in 4-7 days

0

4

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

$4.99

$

In Stock, only 2 left!

0

5

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

6

Bad Boy 017-9000-00

Two Piece Pillow Block (Male)

$11.99

$

Usually ships in 4-7 days

0

7

Bad Boy 017-9025-00

Two Piece Pillow Block Strap

$34.99

$

Usually ships in 4-7 days

0

8

Bad Boy 017-9050-00

Two Piece Pillow Block (Female)

$11.99

$

Usually ships in 4-7 days

0

9

Bad Boy 028-7000-00

Actuator Bar Linkage Assembly

$

$

Currently unavailable

10

Bad Boy 018-4706-00

3/8 x 1-1/2 Carriage Bolt

$1.99

$

Usually ships in 4-7 days

0

11

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

12

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 1 left!

0

13

Bad Boy 031-0060-00

ZT Neutral level rod 2011

$15.99

$

Usually ships in 4-7 days

0

14

Bad Boy 044-2004-00

Bow Pin

$0.99

$

Usually ships in 4-7 days

0

15

Bad Boy 044-2008-00

Neutral Rod Clip

$1.49

$

In Stock, only 2 left!

0

16

Bad Boy 026-2100-00

Outlaw Height Indicator Plate (Outer)

$13.99

$

Usually ships in 4-7 days

0

17

Bad Boy 018-0009-00

3/8 x 1 3/4 Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

18

Bad Boy 025-5203-00

3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 7

0

19

Bad Boy 019-2003-00

.390 x .750 x .062 Nylon Washer

$0.99

$

Usually ships in 4-7 days

0

20

Bad Boy 031-0100-00

Outlaw Deck Lever Lock

$19.99

$

Usually ships in 4-7 days

0

21

Bad Boy 039-5944-00

Pump Idler Bracket

$45.99

$

In Stock, Qty 5

0

22

Bad Boy 019-6017-00

.630 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

23

Bad Boy 024-6034-00

1/4" Press in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

24

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

25

Bad Boy 013-5301-00

5/8" Nylock (1/2 Jam)

$0.99

$

In Stock, only 2 left!

0

26

Bad Boy 018-6036-00

1/2" x 2 3/4" Hex Bolt

$1.99

$

In Stock, only 2 left!

0

27

Bad Boy 025-7036-00

1/2 x 1/2 Spacer

$4.99

$

In Stock, only 2 left!

0

28

Bad Boy 018-2004-50

All Thread-Pump Idler Tensioner

$13.99

$

Usually ships in 4-7 days

0

29

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

30

Bad Boy 034-2020-00

2015 Deck Idler Spring

$18.99

$

In Stock, Qty 20+

0

31

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

32

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, only 1 left!

0

33

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

34

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

35

Bad Boy 013-5041-00

3/8 Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

36

Bad Boy 040-4000-00

Deck height lever pin

$18.99

$

In Stock, only 3 left!

0

37

Bad Boy 026-0013-00

Outlaw Deck Lift Pedal

$22.99

$

Usually ships in 4-7 days

0

38

Bad Boy 039-0029-00

Pedal Tab (Foot Assist)

$

$

Currently unavailable

39

Bad Boy 040-5000-00

Pull Pin

$22.99

$

Usually ships in 4-7 days

0

40

Bad Boy 030-0010-00

5/16-18 x1 Thumb Screw Zinc

$3.49

$

Usually ships in 4-7 days

0

41

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, only 1 left!

0

42

Bad Boy 039-5944-01

Pump Idler Assembly (Parts 5,21,23,26,27,31)

$66.99

$

In Stock, only 2 left!

0
