Compact Outlaw - Bad Boy Zero-Turn Mower (2021) DRIVE ARM ASSEMBLY Parts Diagram

Zero-Turn Mower

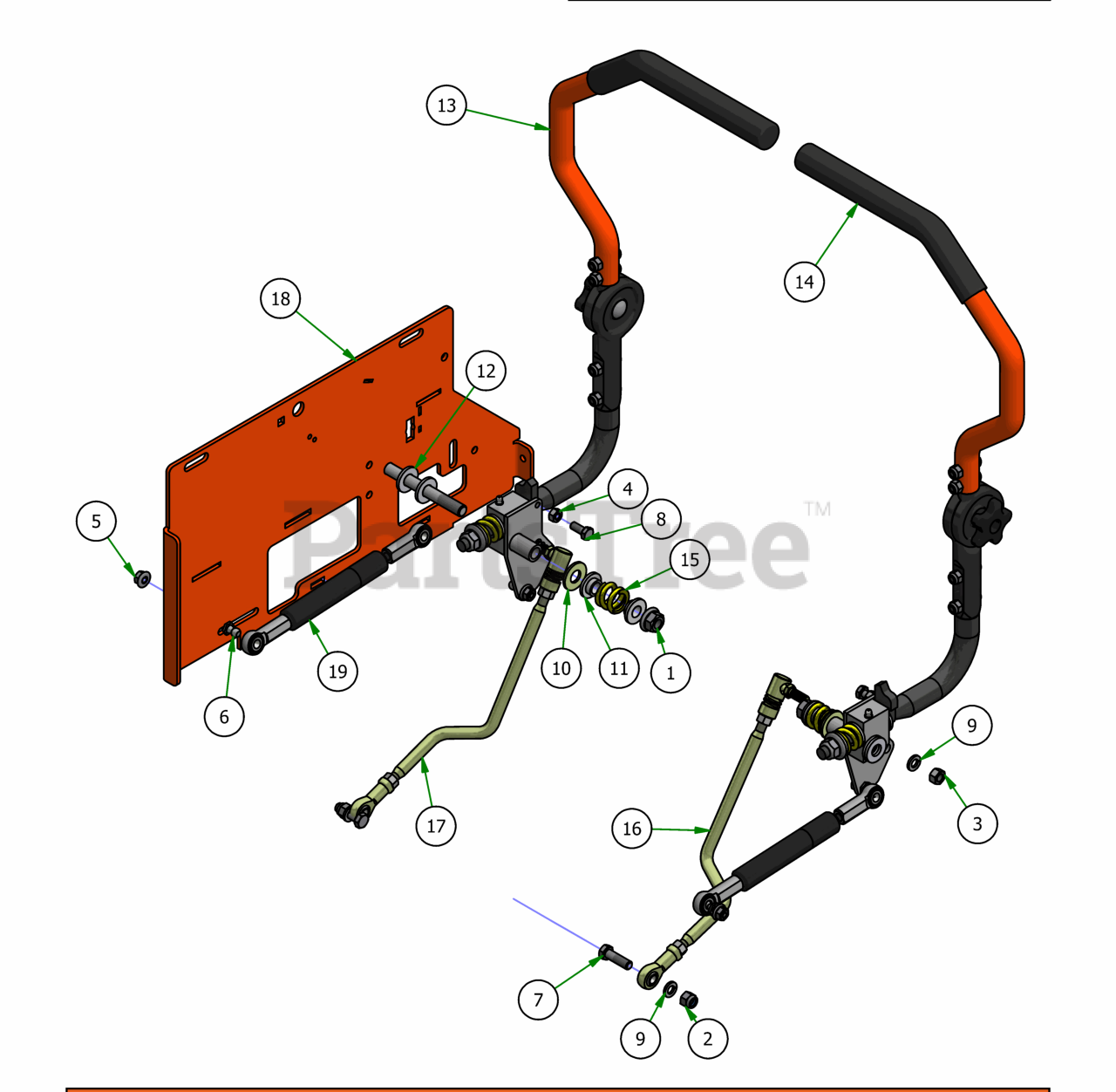

DRIVE ARM ASSEMBLY Parts Diagram

  • Title

1

Bad Boy 013-0010-00

1/2-13 Mechanical Lock Nut

$1.49

$

In Stock, only 3 left!

0

2

Bad Boy 013-5041-00

3/8 Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

3

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

4

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

5

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, only 2 left!

0

6

Bad Boy 018-2050-00

10mm Damper Ball Stud-Steering

$2.49

$

In Stock, only 3 left!

0

7

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 9

0

8

Bad Boy 018-8063-00

5/16" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

10

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 019-8027-00

.515 ID Nylon Shoulder Washer

$0.99

$

In Stock, only 4 left!

0

12

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

13

Bad Boy 031-0017-18

2018 Steering Arm Assembly-Left

$

$

Currently unavailable

14

Bad Boy 031-0018-18

2018 Steering Arm Assembly-Right

$

$

Currently unavailable

15

Bad Boy 034-8025-00

Drive Lever Spring

$4.49

$

In Stock, only 2 left!

0

16

Bad Boy 035-5450-00

Push Rod-Right

$36.99

$

Usually ships in 4-7 days

0

17

Bad Boy 035-5451-00

Push Rod-Left

$45.99

$

Usually ships in 4-7 days

0

18

Bad Boy 070-5500-18

2018 Compact Outlaw Frame

$

$

Currently unavailable

19

Bad Boy 087-0001-00

Steering Damper

$66.99

$

In Stock, only 2 left!

0
