CP 12542 A - Central Park Lawn Tractor (1992) ENGINE Parts Diagram

Lawn Tractor

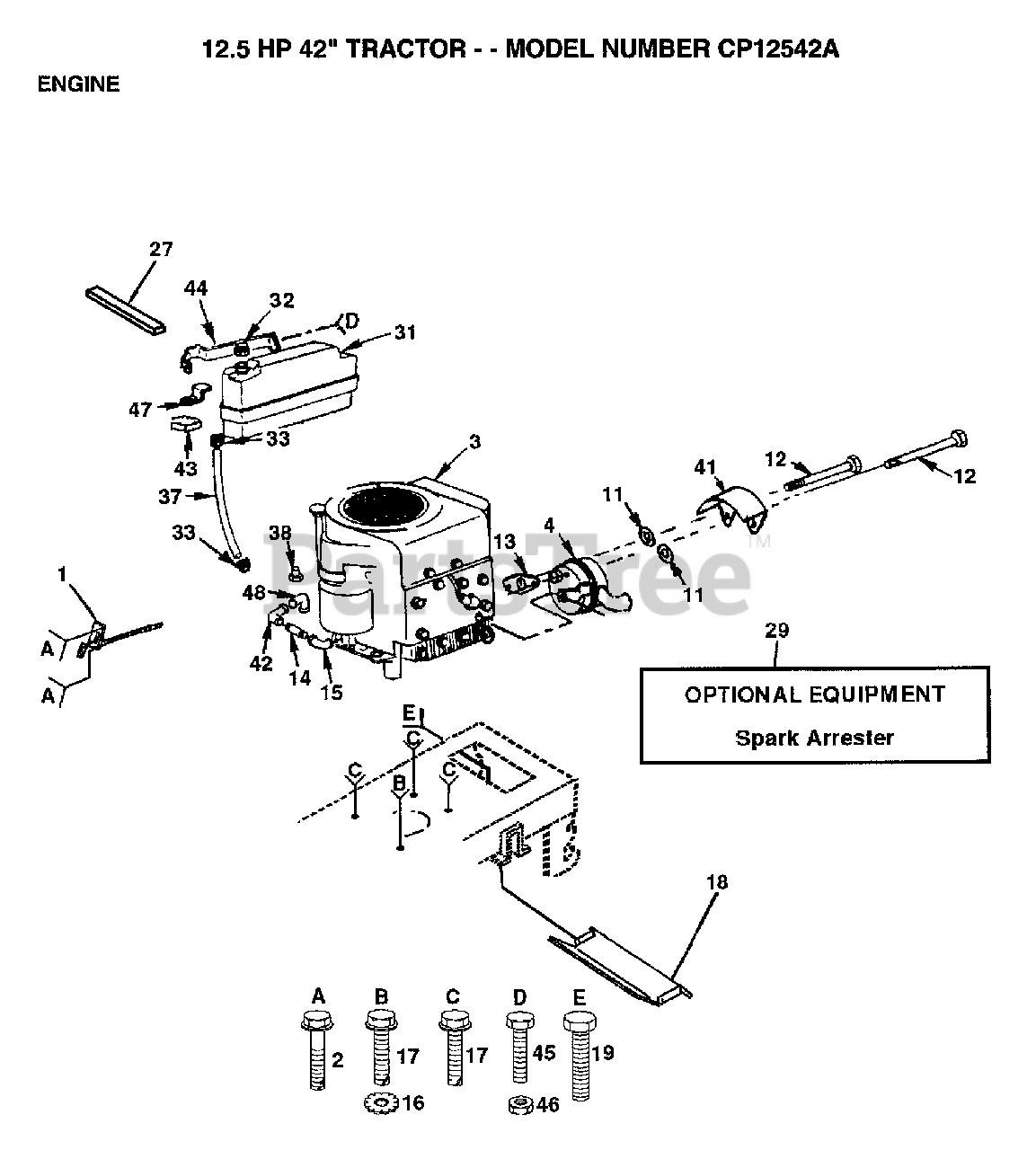

ENGINE Parts Diagram

  • Title

1

Electrolux/AYP 132754X

SUB= 532132754

$

$

Not available

2

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

3

REFER TO IMAGE

$

$

Not available

4

Electrolux/AYP 121304X

MUFFLER
(Superseded to 532121304)

$

$

Not available

11

Electrolux/AYP 19151616

SUB= 19171616

$

$

Not available

13

Electrolux/AYP 125593X

SUB= 272293

$

$

Not available

14

Electrolux/AYP 13280328

PIPE NIPPLE
(Superseded to 813280328)

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 13310300

STREET ELBOW LT
(Superseded to 813310300)

$8.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 17490620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 20+

0

18

Electrolux/AYP 128953

HEAT SHIELD
(Superseded to 532128953)

$

$

Not available

19

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 121744X

BOLT
(Superseded to 532121744)

$

$

Not available

27

Electrolux/AYP 104915X

SUB= 105037X

$

$

Not available

29

Electrolux/AYP 121851X

SUB= 532137180

$

$

Not available

31

Electrolux/AYP 121280X

FUEL TANK
(Superseded to 532121280)

$

$

Not available

32

Electrolux/AYP 8504J

SUB= 9188504J

$

$

Not available

33

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, Qty 16

0

37

Electrolux/AYP 7833R

HOSE T
(Superseded to 532007833)

$4.99

$

Usually ships in 3-10 days

0

38

REFER TO IMAGE

$

$

Not available

41

Electrolux/AYP 121742X

HEAT SHIELD
(Superseded to 532121742)

$

$

Not available

42

Electrolux/AYP 13240300

STREET ELBOW LT
(Superseded to 813240300)

$7.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 6431J

PAD-SPACER T
(Superseded to 532106082)

$

$

Not available

44

Electrolux/AYP 121281X

SUPT TANK FUEL

$

$

Not available

45

Electrolux/AYP 74780512

BOLT
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

46

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

47

Electrolux/AYP 104799X

BRACE-TANK LT

$

$

Not available

48

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, Qty 18

0
