CP 125T38 A - Central Park Lawn Tractor (1995) CHASSIS Parts Diagram

Lawn Tractor

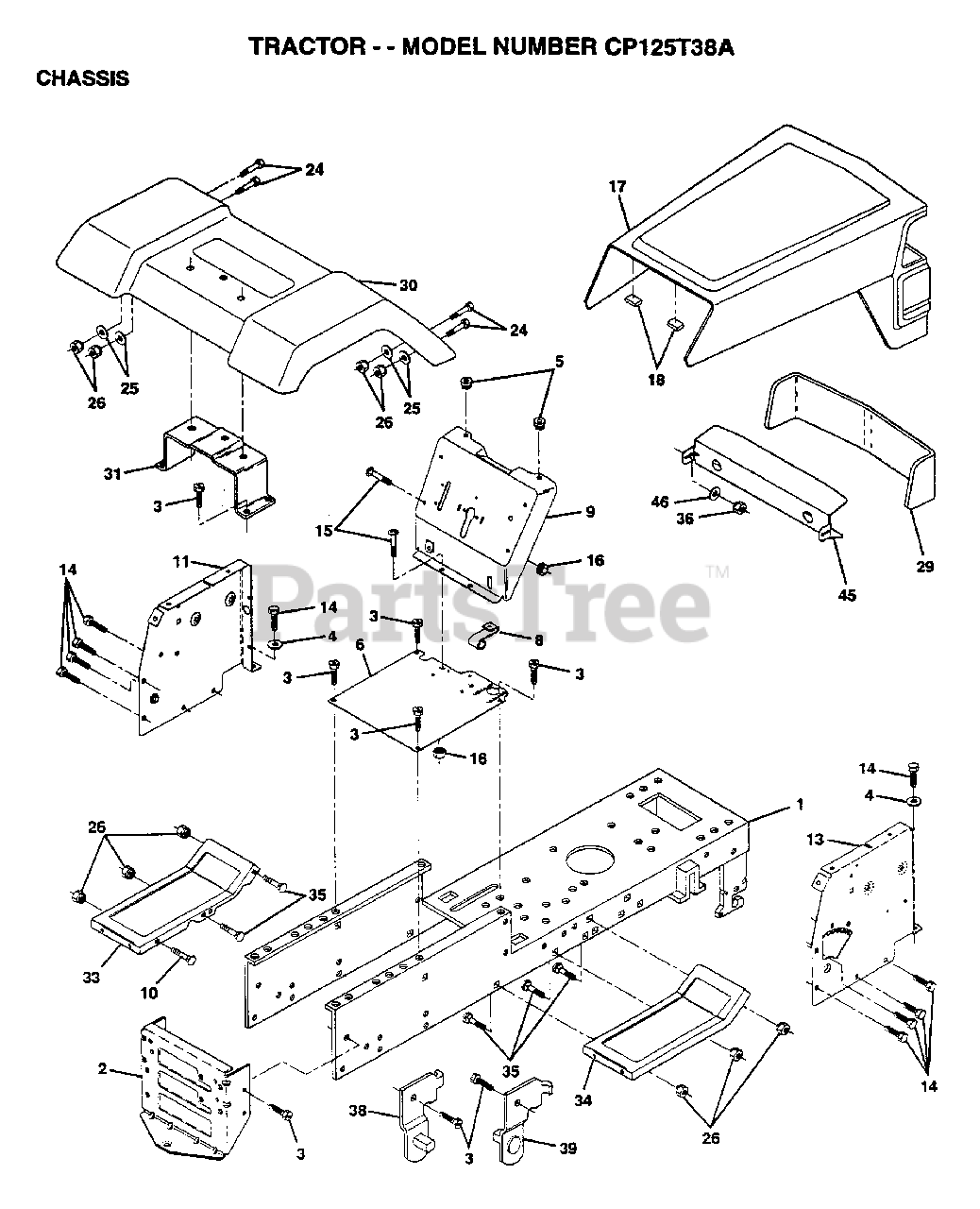

CHASSIS Parts Diagram

  • Title

1

Electrolux/AYP 145501

CHASSIS.WLD.11GA
(Superseded to 532135034)

$

$

Not available

2

Electrolux/AYP 140356

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 19131216

WASHER
(Superseded to 819131216)

$

$

Not available

5

Electrolux/AYP 146077

SUB= 155272
(Superseded to 532155272)

$7.49

$

In Stock, Qty 5

0

6

Electrolux/AYP 145208X014

SUB= 155924X013
(Superseded to 583681601)

$11.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 146757X011

DASH.SLKSC.LT.1PC

$

$

Not available

10

Murray 72140608

SUB= 72110608

$

$

Not available

11

Electrolux/AYP 146956

PANEL.DASH.LH.

$10.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 146961X012

SUB= 155934X010
(Superseded to 172107X010)

$

$

Not available

14

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 73510500

NUT

$2.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 133956X520

HOOD/GRILLE.ASM.

$128.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 126938X

SUB= 532126938
(Superseded to 532126938)

$

$

Not available

24

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 133954

LENS SERVICE KIT

$

$

Not available

30

Electrolux/AYP 109872X520

FENDER.PNT.LT

$81.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 136619

BRKT FENDER
(Superseded to 532136619)

$

$

Not available

33

Electrolux/AYP 105476X520

FOOTREST.LH.PERF

$5.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 105475X520

FOOTREST.RH.PERF.

$5.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 108067X

PAL NUT LT
(Superseded to 532108067)

$

$

Not available

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$8.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 132257

SUB= 918132257
(Superseded to 132257X417)

$

$

Not available

46

Electrolux/AYP 127316X

RETAINER
(Superseded to 532127316)

$

$

Not available

Electrolux/AYP 5479J

PLUG BUTTON T
(Superseded to 532005479)

$4.99

$

Usually ships in 3-10 days

0
