CP 1842 A - Central Park Lawn Tractor (1992) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

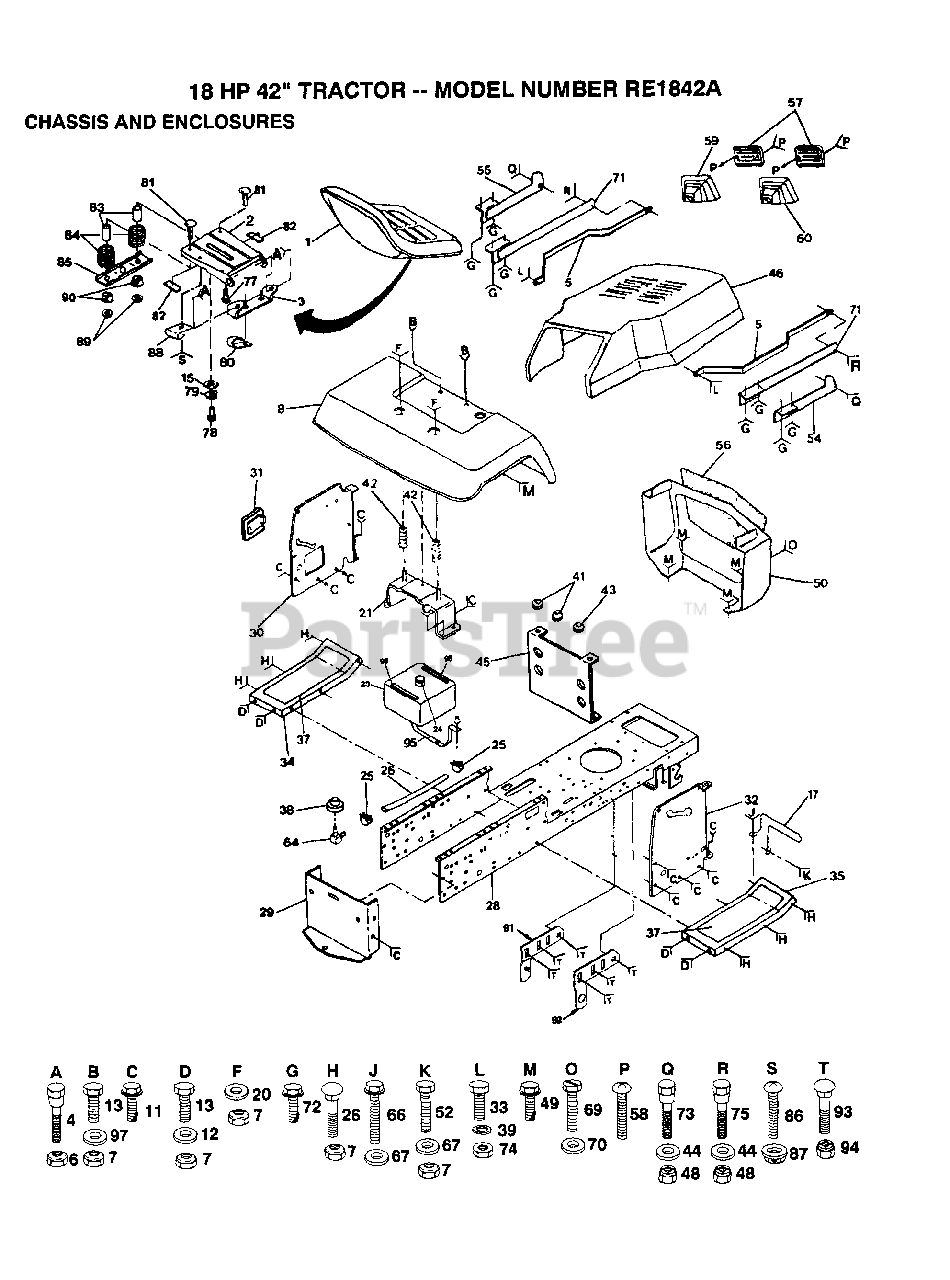

CHASSIS AND ENCLOSURES Parts Diagram

  • Title

1

Electrolux/AYP 133680

SUB= 140121

$

$

Not available

2

Electrolux/AYP 131451

SUB= 155925

$

$

Not available

3

Electrolux/AYP 126656X

SUB= 140551

$

$

Not available

4

Electrolux/AYP 105529X

SUB= 139888
(Superseded to 532139888)

$6.49

$

In Stock, Qty 10

0

5

Electrolux/AYP 109587X

NLA

$

$

Not available

6

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 109872X419

FENDER

$

$

Not available

11

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, Qty 19

0

15

Electrolux/AYP 19171912

WASHER
(Superseded to 819171912)

$7.49

$

In Stock, only 2 left!

0

17

Electrolux/AYP 135029

MUFFLER GUARD

$7.49

$

Usually ships in 3-10 days

0

20

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 109873X

SUB= 136619

$

$

Not available

23

Electrolux/AYP 124067X

SUB= 136251

$

$

Not available

24

Electrolux/AYP 123549X

SUB= 158990
(Superseded to 581075501)

$26.99

$

In Stock, Qty 7

0

25

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, Qty 16

0

26

Electrolux/AYP 5277J

SUB= 8543R

$

$

Not available

28

Electrolux/AYP 135034

SUB= 145501

$

$

Not available

29

Electrolux/AYP 130805

SUB= 145009

$

$

Not available

30

Electrolux/AYP 132072

SUB= 532132072

$

$

Not available

31

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

32

Electrolux/AYP 132071

SUB= 532132071

$

$

Not available

33

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, Qty 5

0

34

Electrolux/AYP 105465X419

SUB= 145244X419

$

$

Not available

35

Electrolux/AYP 105464X419

FOOTREST RH

$5.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 131864

"PAD,FOOTREST"

$

$

Not available

38

Electrolux/AYP 3645J

BUSHING OUTLET T
(Superseded to 532003645)

$3.99

$

In Stock, Qty 20+

0

39

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

41

Electrolux/AYP 9151R

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available

42

Electrolux/AYP 124181X

SPRING COMPRESSIO
(Superseded to 587613301)

$6.49

$

In Stock, Qty 20+

0

43

Electrolux/AYP 110436X

SUB= 9151R

$

$

Not available

44

Electrolux/AYP 19090816

WASHER

$2.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 104920X

NLA

$

$

Not available

46

Electrolux/AYP 3607J366

SUB= 3607J419

$

$

Not available

48

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

49

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 5351J419

GRILL T

$

$

Not available

54

Electrolux/AYP 677A876

STRAP ASSY T

$

$

Not available

55

Electrolux/AYP 677A875

STRAP ASSY T

$

$

Not available

56

Electrolux/AYP 101235L

SCREEN GRILL GTV

$

$

Not available

57

Electrolux/AYP 109671X

LENS T

$

$

Not available

58

Electrolux/AYP 17990808

SCREW

$2.49

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 7606J366

SUB= 7606J361

$

$

Not available

60

Electrolux/AYP 7607J366

SUB= 7607J361

$

$

Not available

63

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 8710J

FUEL TANK STEM GT

$

$

Not available

66

Electrolux/AYP 17490616

SCREW GTV
(Superseded to 817000616)

$7.49

$

In Stock, Qty 7

0

67

Electrolux/AYP 19131616

WASHER HYT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 17511208

SCREW
(Superseded to 582731601)

$2.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 8019J

SUB= 19071018

$

$

Not available

71

Electrolux/AYP 677A432

STRAP ASSY-REAR T
(Superseded to 583773401)

$3.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 17411310

SUB= 17521312

$

$

Not available

73

Electrolux/AYP 7605J

BOLT T
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

75

Electrolux/AYP 124549X

"BOLT,SHOULDER"

$2.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 127018X

"BOLT,SHOULDER"
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0

78

Electrolux/AYP 74780814

BOLT
(Superseded to 871110814)

$6.49

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 10040800

LOCKWASHER
(Superseded to 810040800)

$6.49

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

81

Electrolux/AYP 72050411

SUB= 872050411

$

$

Not available

82

Electrolux/AYP 121251X

STRIP FORM
(Superseded to 532121251)

$

$

Not available

83

Electrolux/AYP 121249X

SPACER SPLIT
(Superseded to 532121249)

$6.49

$

In Stock, Qty 5

0

84

Electrolux/AYP 123740X

SPRING COMPRESSED
(Superseded to 532123740)

$6.49

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 121246X

BRKT SWITCH
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

86

Electrolux/AYP 74641008

SUB= 71031008

$

$

Not available

87

Electrolux/AYP 73951000

"NUT,KEPS"
(Superseded to 873951000)

$5.99

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 4171R

CLIP T

$

$

Not available

89

Electrolux/AYP 123976X

SUB= 73900400
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

90

Electrolux/AYP 121248X

BUSHING
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 134774

PIVOT BRKT LH
(Superseded to 532134774)

$

$

Not available

92

Electrolux/AYP 134775

PIVOT BRKT RH
(Superseded to 532134775)

$

$

Not available

93

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

94

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

95

Electrolux/AYP 123803X

"STRAP,TANK"

$2.99

$

Usually ships in 3-10 days

0

96

Electrolux/AYP 126564X

"STRIP,FORM"
(Superseded to 583671601)

$2.99

$

Usually ships in 3-10 days

0

97

Electrolux/AYP 19131210

WASHER
(Superseded to 819131210)

$

$

Not available
