CP 215013KWV (84667) - Snapper 21" Walk-Behind Mower, 5hp Handles & Controls (Model CP215013KWV Only) Parts Diagram

21" Walk-Behind Mower, 5hp

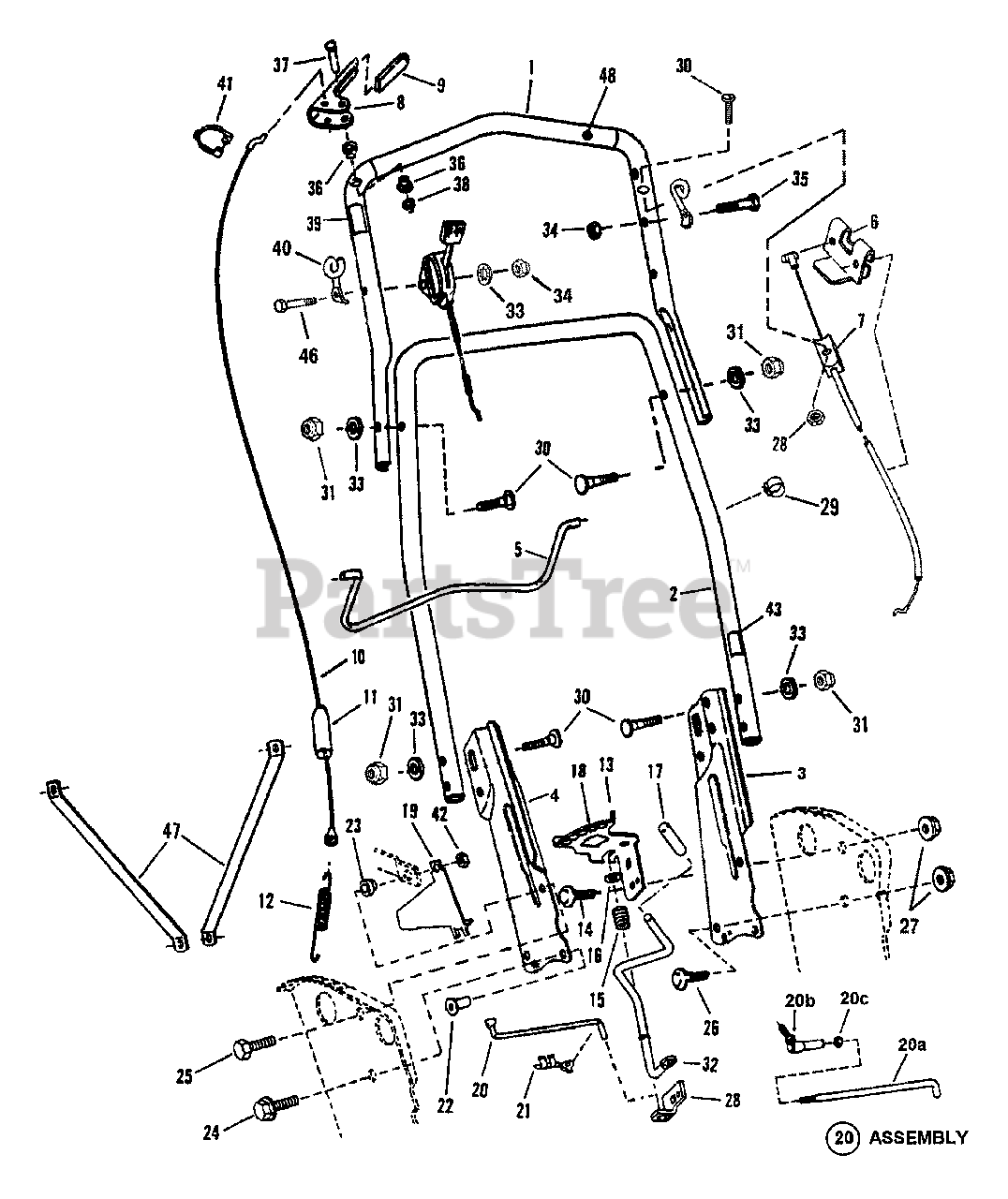

Handles & Controls (Model CP215013KWV Only) Parts Diagram

  • Title

1

Snapper 7074384

HANDLE, Upper
(Superseded to 7074384YP)

Note: Was 41933

$213.99

$

Usually ships in 2-12 days

0

2

Snapper 7046737

HANDLE, Middle

$

$

Currently unavailable

3

Snapper 7033985

HANDLE, Lower Left Hand
(Superseded to 7033985AYP)

$43.99

$

Usually ships in 2-12 days

0

4

Snapper 7033986

HANDLE, Lower R.H. Adjustable
(Superseded to 7033986AYP)

Note: (See "Throttle Controls" illustration and parts list for hardware)

$36.99

$

In Stock, only 4 left!

0

5

Snapper 7047011

BAIL, OPC Control (12.5" Wide)
(Superseded to 7047011YP)

$

$

Not available

6

Snapper 7033904

CLIP, Blade Control
(Superseded to 7034872YP)

$5.99

$

In Stock, only 1 left!

0

7

Snapper 7073444

CABLE, Blade Control
(Superseded to 7073444YP)

$22.99

$

Usually ships in 2-12 days

0

8

Snapper 7032826

HANDLE, Wheel Drive
(Superseded to 7074473BMYP)

$16.99

$

In Stock, Qty 18

0

9

Snapper 7014307

GRIP, Wheel Drive Handle
(Superseded to 7014307YP)

$4.49

$

In Stock, only 2 left!

0

10

Snapper 7047092

CABLE, Clutch Pull (Z-Bend, 38-5/16" Long)
(Superseded to 7047092YP)

$12.99

$

In Stock, only 1 left!

0

11

Snapper 7012121

COVER, Vinyl
(Superseded to 7012121YP)

$1.99

$

Usually ships in 2-12 days

0

12

Snapper 7012122

SPRING, Clutch
(Superseded to 7012122YP)

$9.49

$

In Stock, Qty 20+

0

13

Snapper 7041871

SECTOR, Speed

$

$

Not available

14

Snapper 7091714

BOLT, 5/16 x 1" Round Head Carriage, Grade 5
(Superseded to 703483)

Note: Was 91238

$3.99

$

In Stock, only 3 left!

0

15

Snapper 7012093

SPRING, Speed Control
(Superseded to 7012093YP)

$4.49

$

In Stock, only 4 left!

0

16

Snapper 7090188

WASHER, 3/8" Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7033801

GRIP, Speed Control Handle
(Superseded to 7023801YP)

$4.49

$

In Stock, Qty 6

0

18

Snapper 7024087

DECAL, Speed Select

$

$

Not available

18

Snapper 7029783

DECAL, Speed Select
(Superseded to 7029783YP)

$6.49

$

Usually ships in 2-12 days

0

19

Snapper 7032408

GUIDE, Lower V-Belt
(Superseded to 7032408YP)

$26.99

$

Usually ships in 2-12 days

0

20

Snapper 7051698

ASSEMBLY, Transfer Rod
(Superseded to 7051698YP)

Note: (Incl. indented items below)

$26.99

$

Usually ships in 2-12 days

0

20A

Snapper 7015752

LINK, Transfer
(Superseded to 7015752YP)

$22.99

$

Usually ships in 2-12 days

0

20B

Snapper 7015753

BALL JOINT, 1/4-28
(Superseded to 7015753YP)

$10.99

$

In Stock, Qty 6

0

20C

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7010937

CLIP, Transfer Rod
(Superseded to 7010937YP)

$7.49

$

In Stock, Qty 9

0

22

Snapper 7090895

TEE-NUT, 5/16-18
(Superseded to 7090895YP)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7012114

BUSHING, Differential
(Superseded to 7012114SM)

$4.99

$

In Stock, Qty 12

0

24

Snapper 7090595

BOLT, 5/16-18 x 3/4" Flange Lock, Grade 5
(Superseded to 703354)

$5.49

$

In Stock, Qty 20+

0

25

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Cap, Grade 5
(Superseded to 703301)

$3.99

$

In Stock, Qty 6

0

26

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage, Grade 5
(Superseded to 703447)

Note: Was 91026

$4.49

$

In Stock, Qty 20+

0

27

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

28

Snapper 7046202

BRACKET, Speed Control Rod
(Superseded to 7046202YP)

$19.99

$

Usually ships in 2-12 days

0

29

Snapper 7024641

TIE, Wire
(Superseded to 7024641YP)

$5.99

$

In Stock, only 1 left!

0

30

Snapper 7091190

SCREW, 5/16-18 x 1-1/2 Curved Head, Grade 2
(Superseded to 704063)

$5.49

$

In Stock, Qty 5

0

31

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 91069

$3.49

$

In Stock, Qty 20+

0

32

Snapper 7041870

LEVER, Speed Control

$

$

Not available

33

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

34

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 91100

$3.49

$

In Stock, only 4 left!

0

35

Snapper 7090505

SCREW, 1/4-20 x 2" Hex Cap, Grade 5
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

36

Snapper 7014343

BUSHING
(Superseded to 7014343YP)

$3.99

$

In Stock, Qty 20+

0

37

Snapper 7023792

PIN, Clutch Handle
(Superseded to 704031)

$3.99

$

In Stock, Qty 11

0

38

Snapper 7091020

PUSH-NUT, 1/4"
(Superseded to 7091020YP)

Note: (For handle pin)

$4.49

$

In Stock, Qty 20+

0

39

Snapper 7024211

DECAL, Blade Control (Right Hand Side)
(Superseded to 7024211YP)

$14.99

$

In Stock, Qty 5

0

40

Snapper 7046465

GUIDE, Rope
(Superseded to 7046465SM)

$3.49

$

Usually ships in 2-12 days

0

41

Snapper 7026219

CLAMP
(Superseded to 7026219YP)

$4.49

$

In Stock, only 1 left!

0

42

Snapper 7091606

NUT, 5/16-24 Hex Center Lock, Grade 5
(Superseded to 703896)

Note: Was 91074

$3.49

$

In Stock, Qty 8

0

43

Snapper 7041942

DECAL, Shift Warning
(Superseded to 7041942YP)

$5.49

$

Usually ships in 2-12 days

0

44

Snapper 7091022

WASHER, 1/4" Internal Tooth Locking

Note: Not shown

$

$

Not available

46

Snapper 7091813

SCREW, 1/4-20 x 1-3/4 Hex Cap, Grade 5
(Superseded to 7091003YP)

Note: Was 91222

$3.49

$

In Stock, only 2 left!

0

47

Snapper 7046707

BRACE
(Superseded to 7046707YP)

Note: (See "Throttle Controls" illustration and parts list for hardware)

$34.99

$

In Stock, only 2 left!

0

48

Snapper 7075634

FOAM GRIP
(Superseded to 7075634YP)

Note: Was 73115

$8.99

$

In Stock, only 1 left!

0
