CP 215017KWV (85690) - Snapper 21" Walk-Behind Mower, 5hp CUTTING DECK, BLADE Parts Diagram

21" Walk-Behind Mower, 5hp

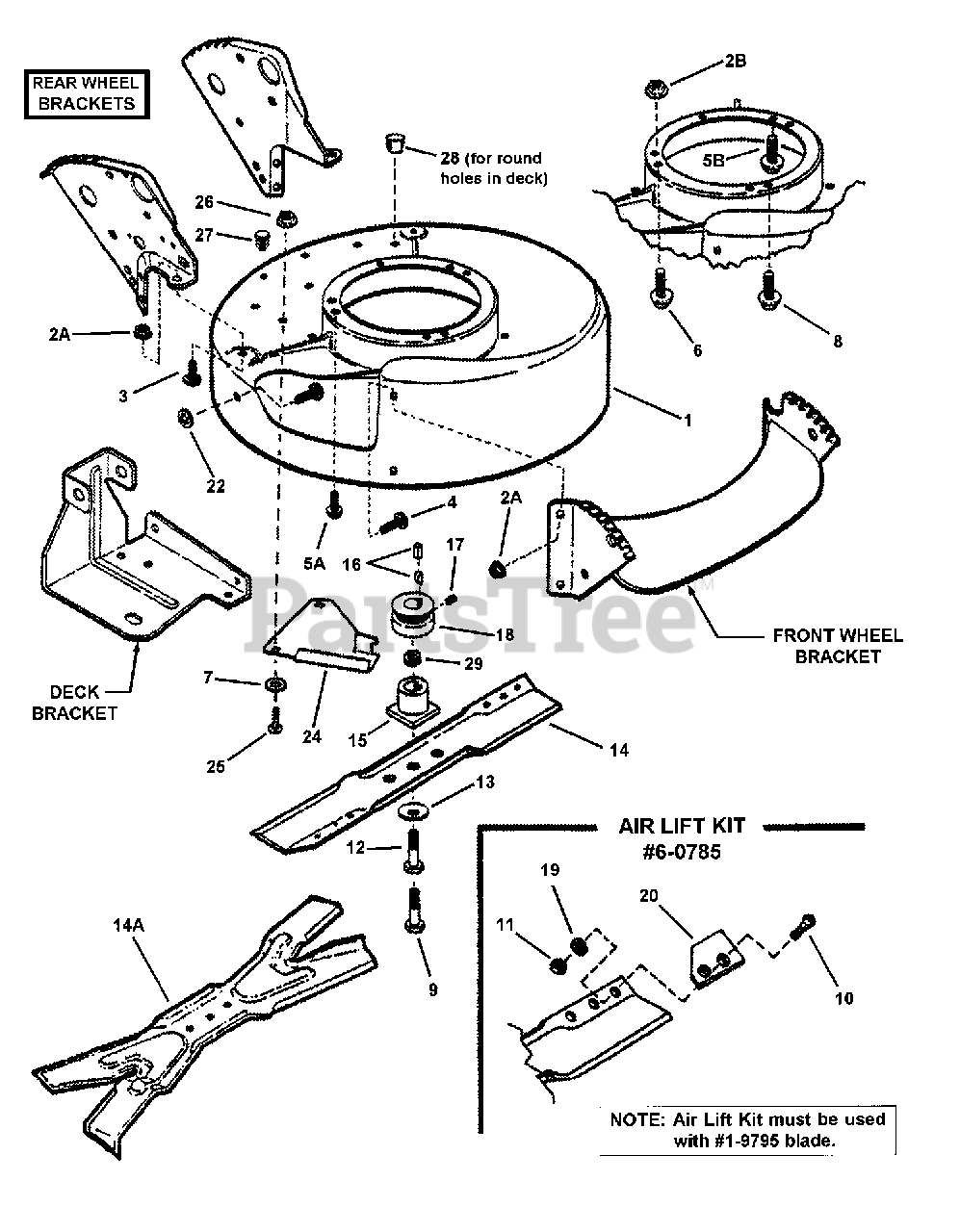

CUTTING DECK, BLADE Parts Diagram

  • Title

1

Snapper 7057663

DECK, Mower (Includes painted deck with decals)
(Superseded to 7500549DYP)

$

$

Not available

2

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

Note: Was 90585 or 91070

$5.99

$

In Stock, Qty 20+

0

3

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage GR5
(Superseded to 703798)

$4.49

$

In Stock, only 4 left!

0

4

Snapper 7091169

BOLT, 5/16-18 x 1-1/8" Short Neck Carriage GR5
(Superseded to 704002)

$4.49

$

Usually ships in 2-12 days

0

5A

Snapper 7090324

SCREW, 3/8-16 x 1" Self-Tap (engine mount)
(Superseded to 704000)

$5.49

$

In Stock, Qty 13

0

5B

Snapper 7090324

SCREW, 3/8-16 x 1" Self-Tap (engine mount)
(Superseded to 704000)

$5.49

$

In Stock, Qty 13

0

6

Snapper 7090700

BOLT, 5/16-18 x 1-1/2" Hex Flange Lock, GR5
(Superseded to 7091602SM)

$3.99

$

In Stock, only 4 left!

0

7

Snapper 7031961

WASHER, 1/2" Flat
(Superseded to 703964)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7090595

BOLT, 5/16-18 x 5/8" Hex Flange Lock GR5
(Superseded to 703354)

$5.49

$

In Stock, Qty 19

0

9

Snapper 7090483

SCREW, 3/8-24 x 1-3/4 Hex Head Cap GR5
(Superseded to 703866)

Note: Robin & Honda Models

$4.49

$

In Stock, Qty 7

0

10

Snapper 7090228

SCREW, 5/16-24 x 21/32" Oval Head Machine
(Superseded to 7090228SM)

$5.99

$

In Stock, Qty 20+

0

11

Snapper 7091297

NUT, 5/16-24 Hex, GR5
(Superseded to 703331)

Note: Was 90223

$4.49

$

In Stock, Qty 17

0

12

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, GR5
(Superseded to 7090167SM)

Note: used on Kawasaki

$

$

Not available

13

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, Qty 16

0

14

Snapper 7026691

BLADE, Cutter (Standard Lift) (20.75")
(Superseded to 7026691BZYP)

$23.99

$

In Stock, Qty 10

0

14A

Snapper 7026407

BLADE, 21" Ninja (Quad Edge) (20.75")
(Superseded to 7026407AYP)

$

$

Not available

14B

Snapper 7019795

BLADE, Cutter (European) (20.75")
(Superseded to 7019795BZYP)

$29.99

$

In Stock, Qty 8

0

15

Snapper 7015626

HUB, Blade Drive 25mm
(Superseded to 7015626YP)

Note: Robin Models

$16.99

$

In Stock, only 3 left!

0

--

Snapper 7012927

HUB, Blade Drive 7/8"
(Superseded to 7012927YP)

Note: Kawasaki & Honda Models

$14.99

$

In Stock, only 3 left!

0

16

Snapper 7010783

KEY, Woodruff #505 Hi-Pro
(Superseded to 7010783YP)

Note: Kawasaki & Honda Models

$4.49

$

Usually ships in 2-12 days

0

--

Snapper 7016755

KEY, 1/4" Square x 3/4"
(Superseded to 7016755YP)

Note: Robin Models

$5.49

$

Usually ships in 2-12 days

0

17

Snapper 7090201

SCREW, 5/16-18 x 5/16" Hex Socket Set
(Superseded to 7090201SM)

$

$

Not available

18

Snapper 7022106

PULLEY, Engine, (25mm x 2.12")
(Superseded to 7022106YP)

Note: Robin Models

$71.99

$

Usually ships in 2-12 days

0

--

Snapper 7021764

PULLEY, Engine (7/8" I.D. x 2-1/8" O.D.)
(Superseded to 7021764YP)

Note: Kawasaki & 5HP Honda Models

$57.99

$

In Stock, only 1 left!

0

--

Snapper 7021822

PULLEY, Engine
(Superseded to 7021822YP)

Note: 5.5HP Honda Models

$

$

Not available

19

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

20

Snapper 7032558

LIFT, Air
(Superseded to 7032558YP)

$

$

Not available

21

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage GR5
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 20+

0

22

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 9

0

23

Snapper 7011762

COVER, Spark Plug
(Superseded to 7011762YP)

Note: not shown

$3.99

$

Usually ships in 2-12 days

0

--

Snapper 7060785

KIT, Air Lift
(Superseded to 7060785YP)

Note: (Includes items 10, 11, 19 & 20)

$

$

Not available

24

Snapper 7074568

BAFFLE, Belt
(Superseded to 7074568YP)

$13.99

$

Usually ships in 2-12 days

0

25

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage GR5
(Superseded to 703798)

$4.49

$

In Stock, only 4 left!

0

26

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

Note: Was 90585 or 91070

$5.99

$

In Stock, Qty 20+

0

27

Snapper 7046780

PLUG, Hole
(Superseded to 7046780SM)

$4.99

$

Usually ships in 2-12 days

0

28

Snapper 7045264

PLUG, 5/16" Round Hole
(Superseded to 7045264YP)

$3.99

$

Usually ships in 2-12 days

0

29

Snapper 7044770

SPACER, Blade Hub (1/16" thick)
(Superseded to 7044770YP)

$4.49

$

In Stock, only 3 left!

0
